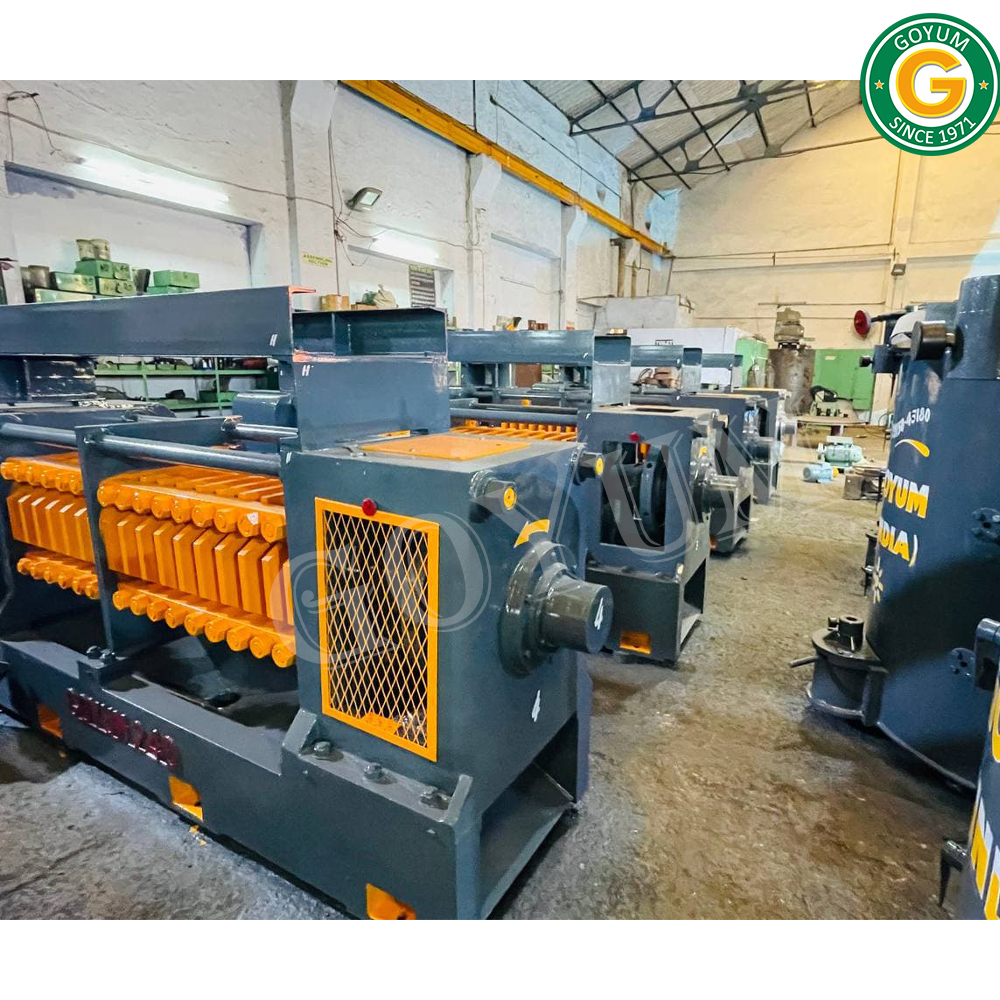

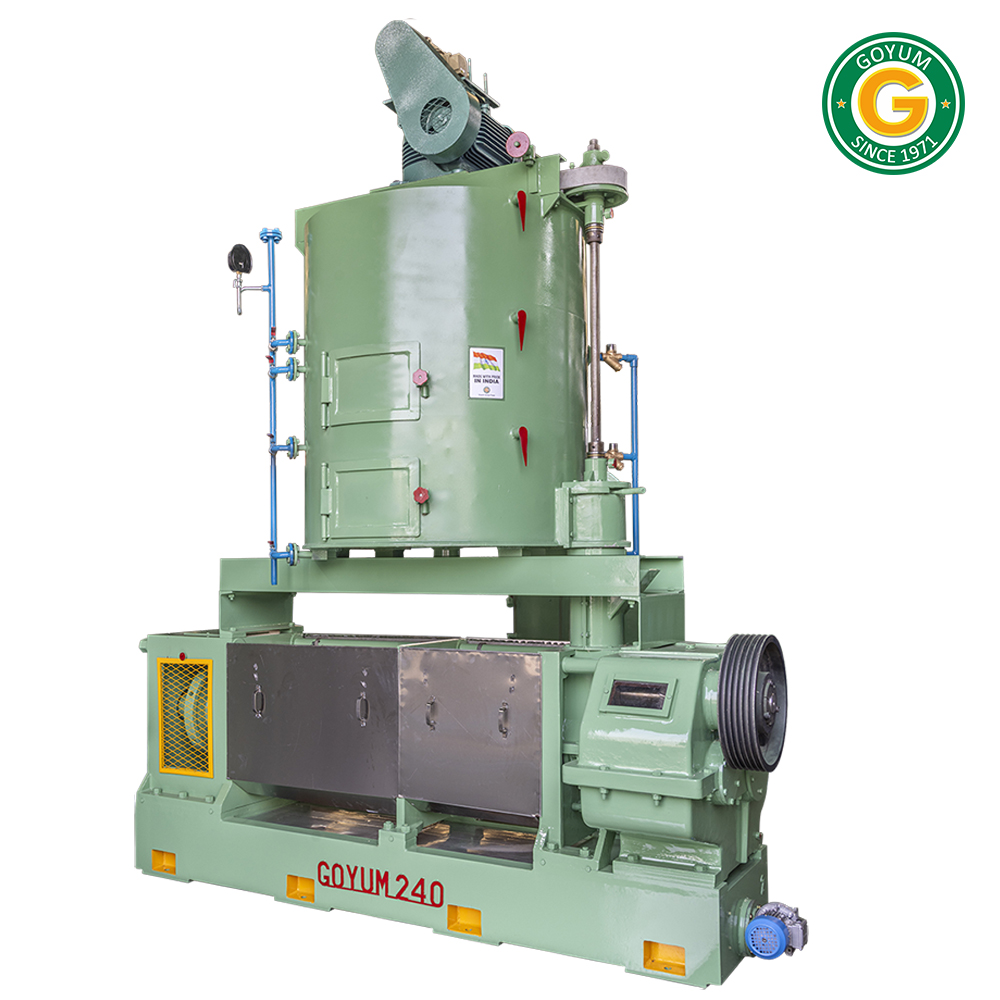

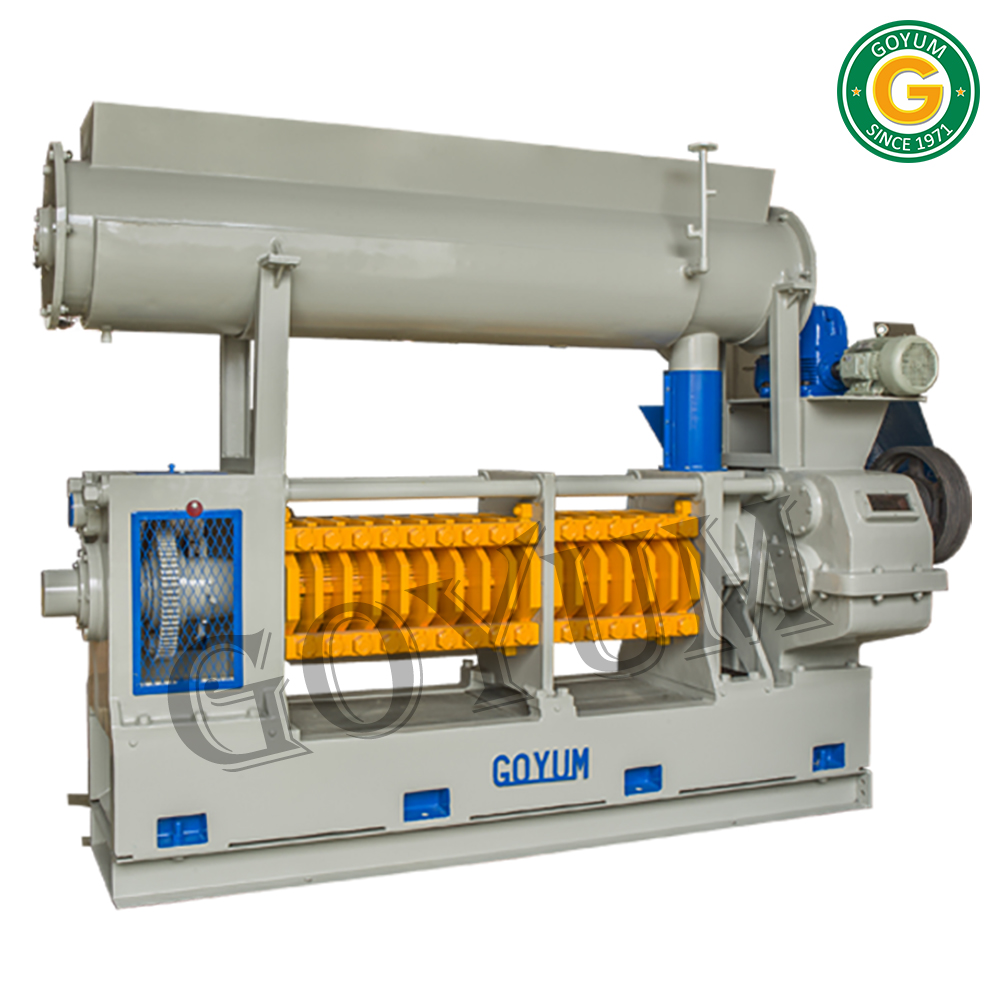

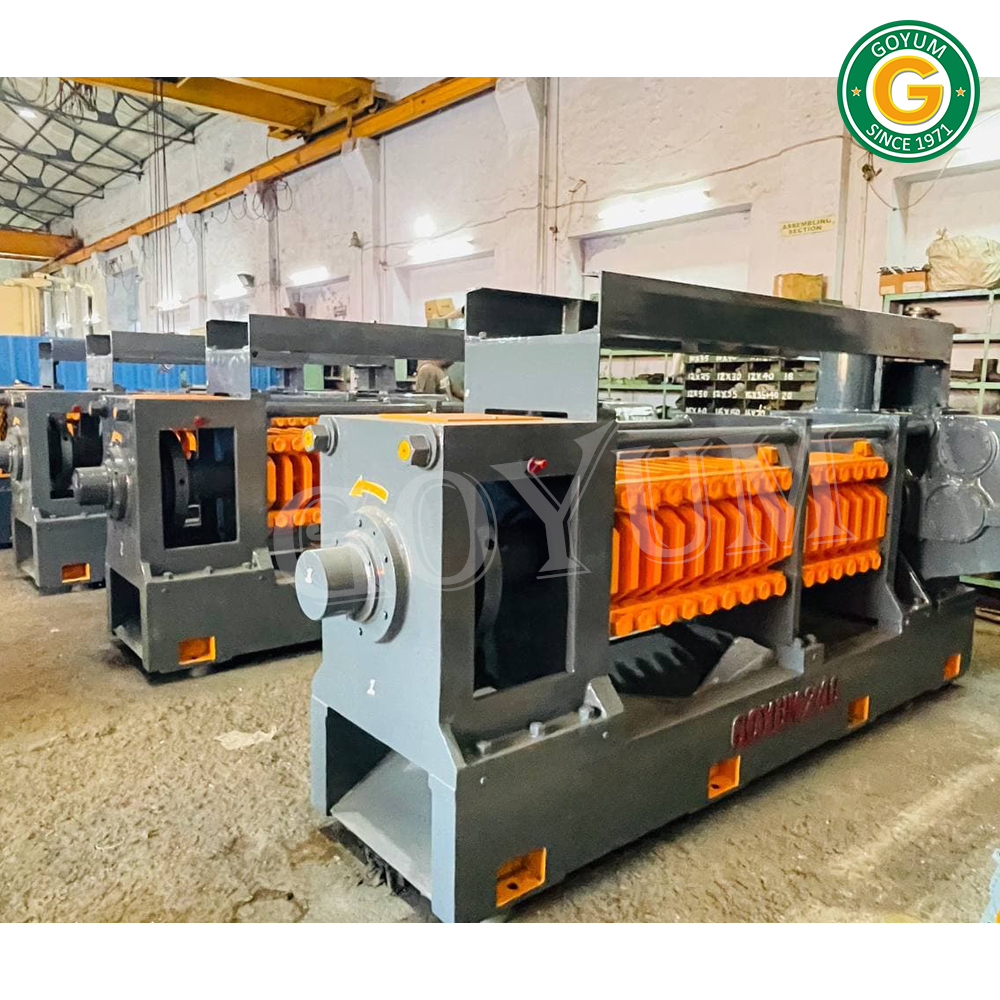

Niger Seed Screw Oil Press

Niger Seed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Warranty
1 year warranty against manufacturing defect.

Niger Seed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Niger Seed Screw Oil Press

Niger Seed Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Versatile and Robust Design

Engineered for both hot and cold extraction, the Niger Seed Screw Oil Press adapts easily to varied production requirements. With a choice between long and three-stage round kettles, it accommodates diverse processing volumes, making it ideal for exporters, manufacturers, and suppliers seeking reliability and capacity.

Power and Efficiency Combined

Operating at 80 HP, this semi-automatic press balances energy consumption and high output, providing consistent performance with minimal intervention. The heavy-duty build ensures it withstands demanding production environments, while maintaining efficiency and productivity levels.

FAQs of Niger Seed Screw Oil Press:

Q: How does the Niger Seed Screw Oil Press extract oil from seeds?

A: The Niger Seed Screw Oil Press uses a semi-automatic, screw-driven mechanism to crush seeds and extract oil efficiently. Its robust design allows both hot and cold extraction, providing flexibility depending on the desired oil quality.

Q: What are the main benefits of using this oil press for industrial applications?

A: This press offers high capacity and efficiency, strong durability, and minimal power consumption for its output. With a 1-year warranty against manufacturing defects and adaptable voltage options, it is well-suited for various industrial and commercial settings.

Q: When should I choose the long kettle versus the three-stage round kettle?

A: Select the long kettle (5200 kg) for standard extraction needs, or opt for the heavier three-stage round kettle (6500 kg) if you require extended processing and higher throughput, especially in large-scale operations.

Q: Where is the Niger Seed Screw Oil Press manufactured and supplied from?

A: This machine is manufactured, exported, and supplied by leading companies based in India, ensuring quality manufacturing standards and reliable delivery for international customers.

Q: What is the recommended process of operating the semi-automatic oil press?

A: After connecting to the suitable power source (280, 380, or 440 volts), load the niger seeds into the kettle, select the extraction type (hot or cold), and initiate the screw mechanism. Minimal operator supervision is needed owing to its semi-automatic functionality.

Q: How much power does the Niger Seed Screw Oil Press consume during operation?

A: The oil press operates at 80 horsepower, providing a balance between performance and energy usage suitable for continuous industrial-scale extraction operations.

Q: Is technical support or warranty coverage provided with this oil press?

A: Yes, buyers receive a 1-year warranty covering manufacturing defects. Technical support is typically available through the manufacturer or supplier for troubleshooting and maintenance.
