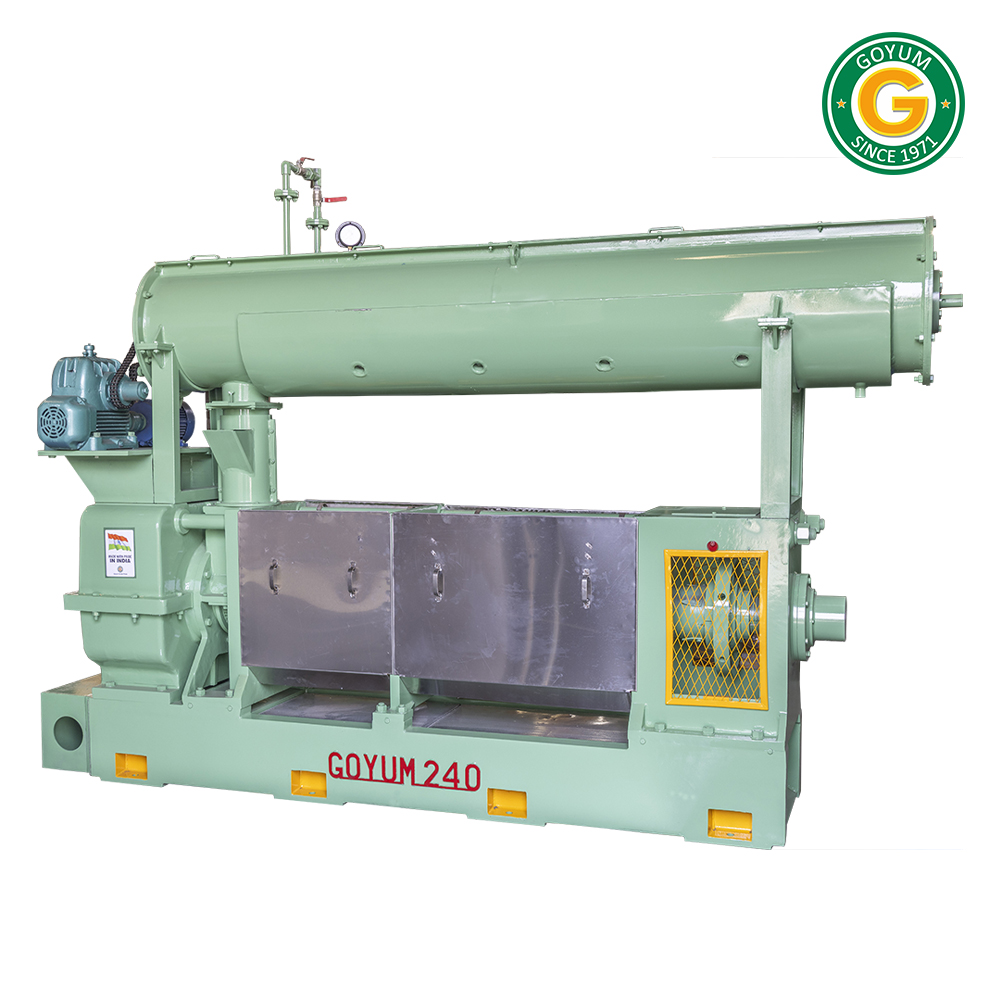

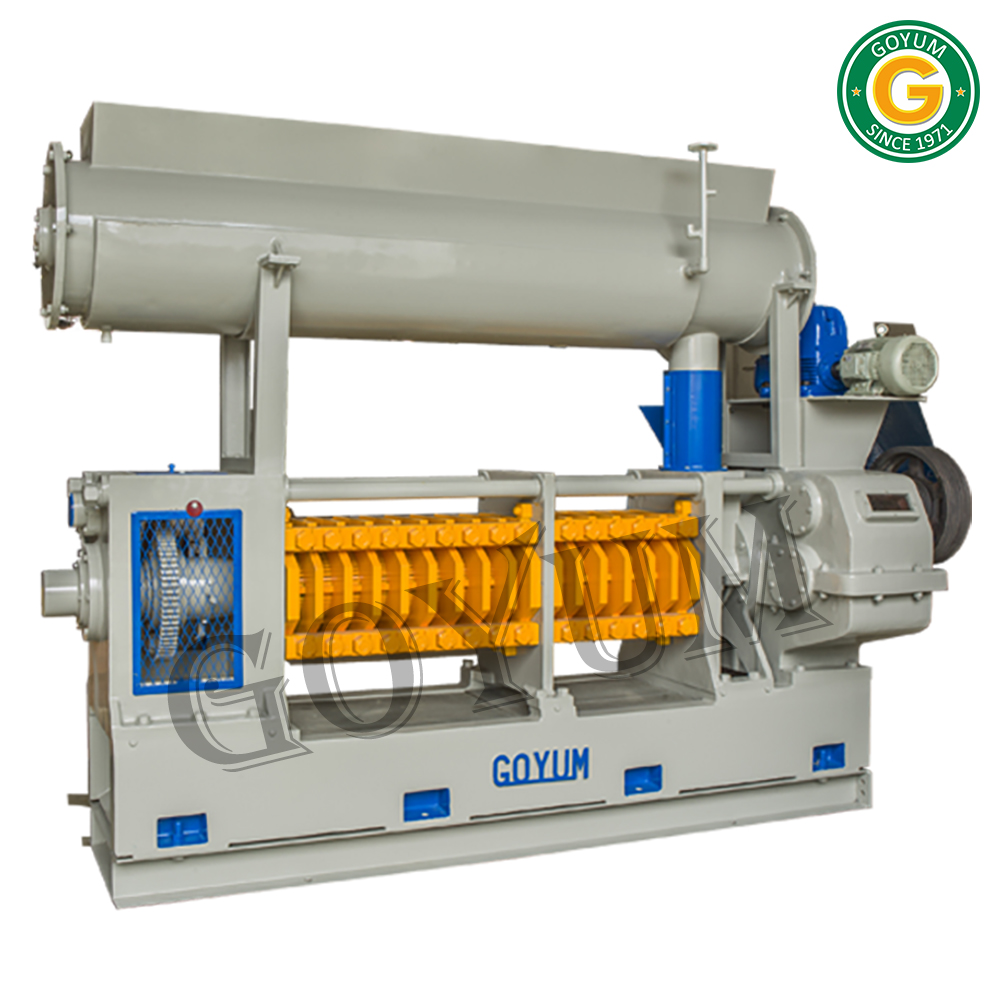

Sunflower Seed Screw Oil Press

Sunflower Seed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Color
Green

Warranty
1 year warranty against manufacturing defect.

Sunflower Seed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Sunflower Seed Screw Oil Press

Sunflower Seed Screw Oil Press Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Versatile Extraction Capabilities

This oil press supports both hot and cold extraction processes, enabling users to choose the optimal method for their application. The dual kettle designs cater to varying production needs, ensuring flexibility for different scales of operation. Suitable for medium to large-scale businesses seeking efficiency and adaptability.

Robust Construction and High Power

Built for industrial use, the machine features heavy-duty construction and operates at 80 HP. The substantial weight and dimensions reflect its solid build and suitability for continuous operation in demanding commercial environments. The devices compatibility with multiple voltages also ensures seamless integration into different power systems.

FAQs of Sunflower Seed Screw Oil Press:

Q: How does the Sunflower Seed Screw Oil Press operate?

A: The machine operates semi-automatically, using a screw pressing mechanism to extract oil from sunflower seeds. Depending on your production needs, you can use either the long kettle or the three-stage round kettle for efficient processing.

Q: What is the process for extracting oil with this machine?

A: You begin by feeding cleaned sunflower seeds into the hopper. The seeds pass through the screw mechanism, which applies pressure to release oil. Users can choose between hot and cold extraction modes, allowing for versatile processing depending on the desired oil quality.

Q: When should I perform maintenance on the oil press?

A: Routine maintenance is recommended after every cycle of operation or as indicated in the user manual. Regular checks ensure the longevity and optimal performance of the press. The 1-year warranty covers manufacturing defects if any arise within the first year.

Q: Where can I install the Sunflower Seed Screw Oil Press?

A: Given its size (10.2 x 4.1 x 7.7 feet) and substantial weight, the machine requires installation in a spacious, stable, and well-ventilated industrial area that can support both the units footprint and the necessary electrical connections.

Q: What are the benefits of using this screw oil press?

A: The main benefits include efficient and high-yield oil extraction, robust construction for durability, operational flexibility with two extraction types, and adaptability to different power systems, making it ideal for large-scale oil producers.

Q: Is the machine suitable for both exporters and manufacturers in India?

A: Yes, the oil press is designed to meet the requirements of exporters, manufacturers, and suppliers in India. Its high efficiency, robust engineering, and warranty support make it an excellent choice for commercial use and international trade.
