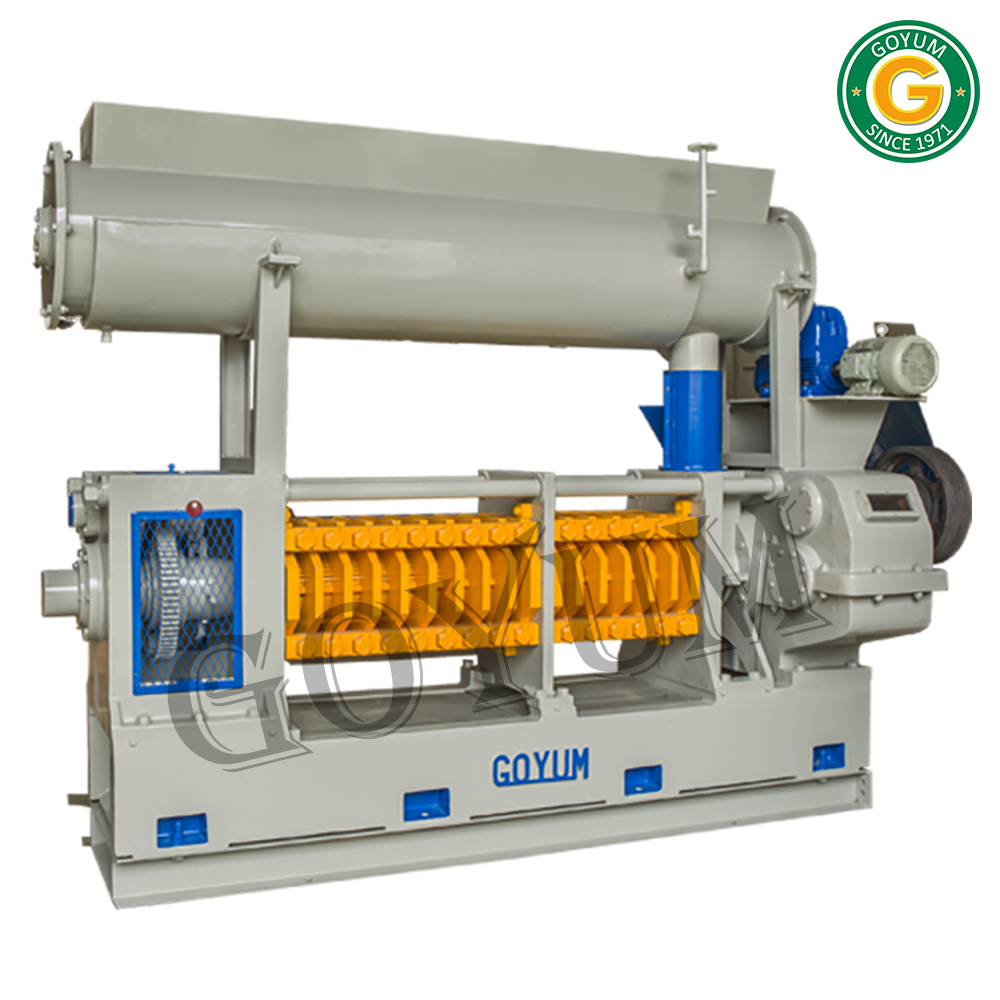

Sesame Seed Screw Oil Press

Sesame Seed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Color
Green

Warranty
1 year warranty against manufacturing defect.

Sesame Seed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Sesame Seed Screw Oil Press

Sesame Seed Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Efficient Oil Extraction

Equipped with a powerful 80 HP motor and advanced screw pressing mechanism, this machine handles high-capacity oil extraction from sesame seeds with precision. Its semi-automatic technology streamlines the process, reducing manual intervention while maximizing output and maintaining oil quality.

Adaptable Design for Industrial Use

Engineered for manufacturers and suppliers, the screw press accommodates both extraction types, features variable voltage settings, and offers two kettle configurations. Its durable construction and user-friendly controls make it a perfect fit for export-oriented units across India.

FAQs of Sesame Seed Screw Oil Press:

Q: How does the Sesame Seed Screw Oil Press operate?

A: The press utilizes a screw mechanism powered by an 80 HP motor to crush sesame seeds and extract oil efficiently. It requires minimal manual intervention due to its semi-automatic technology, making the operation streamlined and consistent.

Q: What configurations are available for the kettle in this oil press?

A: The machine comes with two kettle optionsa long kettle weighing 5,200 kgs and a three-stage round kettle with a weight of 6,500 kgsallowing users to choose based on their production requirements and space availability.

Q: When is the ideal time to perform maintenance on this oil press?

A: Regular maintenance is recommended after every production cycle or as specified in the operation manual. Preventive checks and timely servicing help sustain efficiency and extend the lifespan of the equipment.

Q: Where can this oil press be installed?

A: The press is engineered for installation in industrial units, manufacturing plants, and supplier warehouses, especially where voltage options of 280, 380, or 440 volts are available. Its adaptable dimensions allow for flexible placement.

Q: What is the oil extraction process in this machine?

A: Sesame seeds are fed into the machine, where the screw mechanism applies pressure to extract oil. The extracted oil is then collected, and the leftover cake is discharged separately. The entire process is automated except for loading and unloading.

Q: What benefits does the Sesame Seed Screw Oil Press offer to manufacturers and exporters?

A: Manufacturers and exporters benefit from high oil yield, reduced labor costs, reliable semi-automatic technology, and a one-year warranty against manufacturing defects. The robust construction ensures longevity and supports large-scale production.
