Linseed / Flaxseed Screw Oil Press

Linseed / Flaxseed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Color
Green

Warranty
1 year warranty against manufacturing defect.

Linseed / Flaxseed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Linseed / Flaxseed Screw Oil Press

Linseed / Flaxseed Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

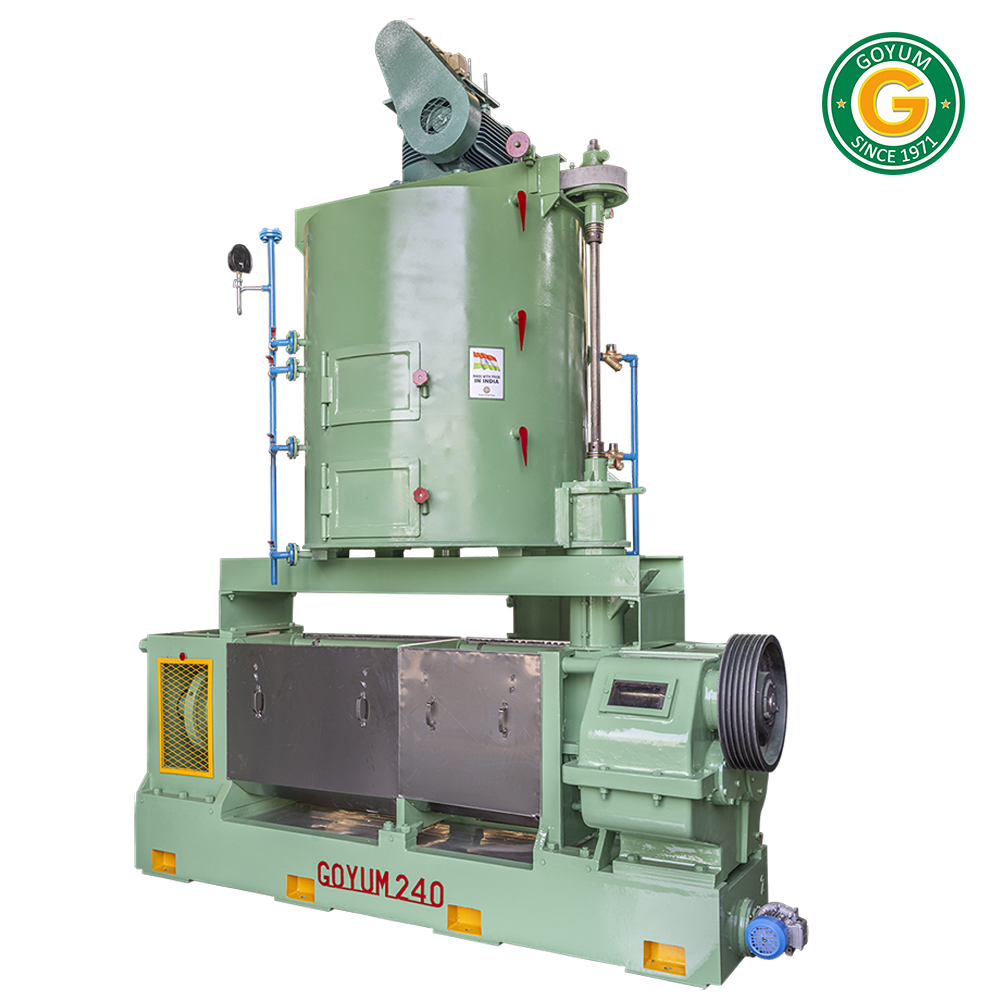

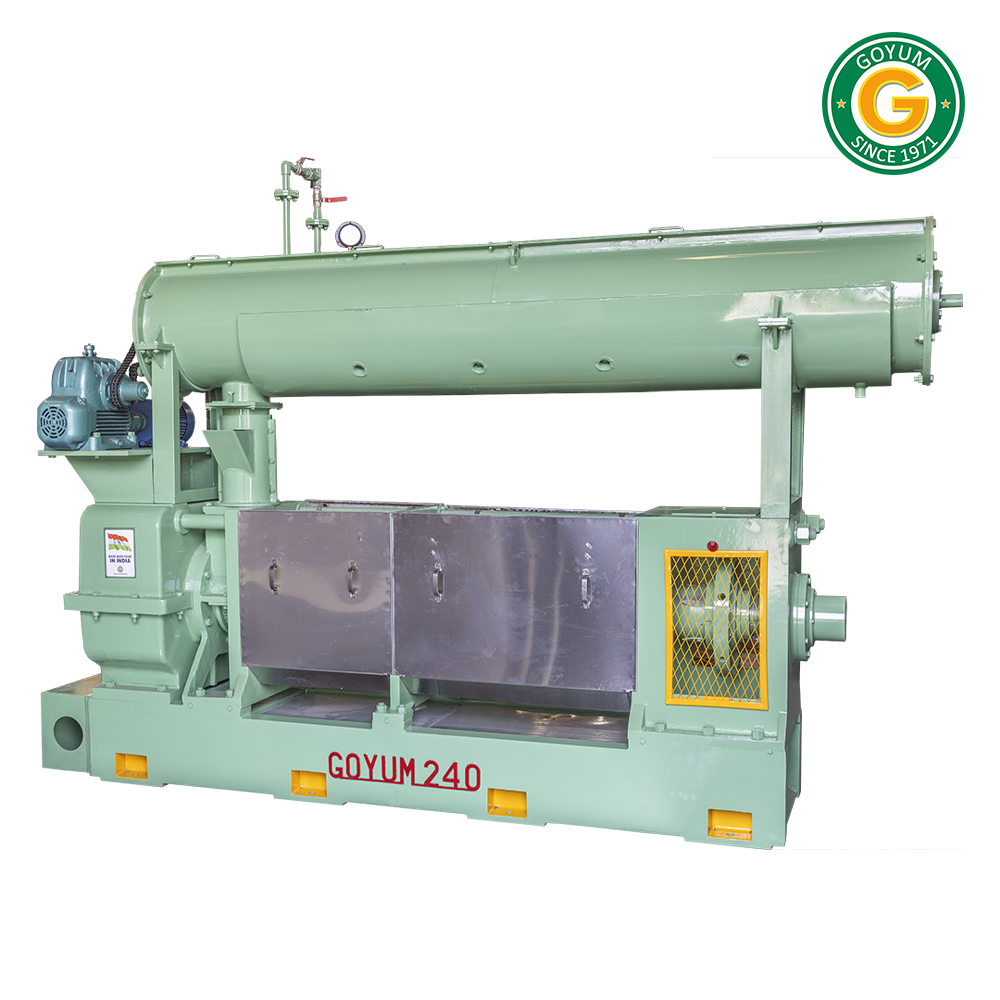

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Efficient and Versatile Extraction

This screw oil press is engineered for reliable extraction of linseed or flaxseed oil, utilizing a semi-automatic process for consistent output. Its adaptability allows for both long kettle and three-stage round kettle operation, giving users flexibility in production. The robust design ensures minimal downtime and optimum usage efficiency, making it a trusted choice for small and large-scale oil extraction operations.

Durability and Power

With a powerful 80 horsepower motor, this oil press handles demanding extraction tasks with ease. The machines substantial weight and build quality speak to its durability, while a 1-year warranty offers added peace of mind. Its varied voltage compatibility makes it suitable for diverse power infrastructures, empowering exporters, manufacturers, and suppliers.

FAQs of Linseed / Flaxseed Screw Oil Press:

Q: How does the Linseed / Flaxseed Screw Oil Press operate?

A: The screw oil press uses a semi-automatic system where seeds are loaded into the kettle. The powerful 80 HP motor drives a screw mechanism that crushes and extracts the oil, ensuring efficient yield with minimal manual intervention.

Q: What types of extraction can this machine perform?

A: This press supports both traditional and advanced extraction methods using its adaptable settings. It is compatible with both long kettle and three-stage round kettle configurations, enabling versatile oil production.

Q: When should routine maintenance be performed on the oil press?

A: Regular maintenance should be conducted based on usage intensity, with lubrication and inspection intervals every few weeks. The one-year warranty against manufacturing defects provides additional support during the first year of operation.

Q: Where is this oil press manufactured and supplied from?

A: The machine is manufactured, exported, and supplied directly from India. The supplier caters to domestic and international markets, ensuring broad availability.

Q: What is the process of using the screw oil press for oil extraction?

A: To extract oil, feed cleaned linseed or flaxseed into the machines kettle. The seeds are processed by the screw mechanism under controlled pressure, separating the oil from the meal in either a long kettle or three-stage round kettle format.

Q: What are the main benefits of using this semi-automatic oil press?

A: The primary advantages include efficient oil extraction, high durability, easy operation, and versatility in extraction types. The robust construction and standard voltage compatibility also contribute to its widespread adoption.
