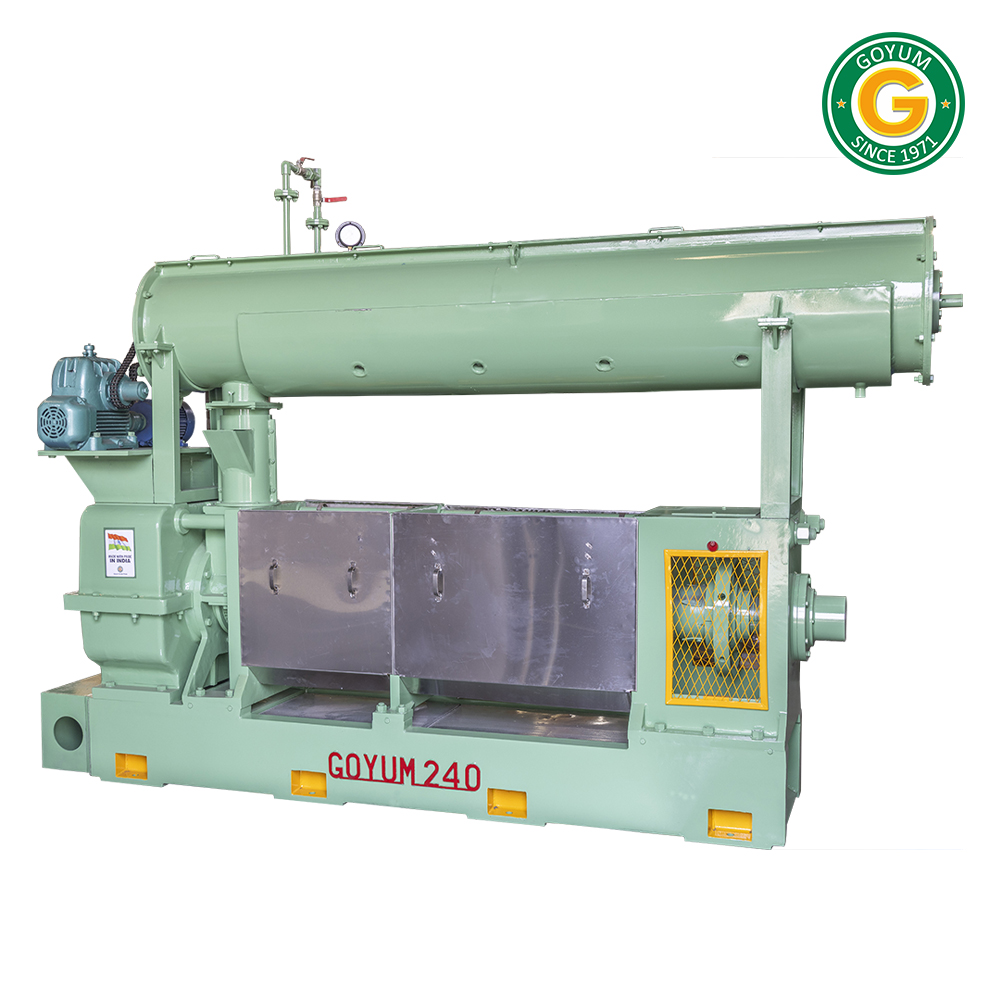

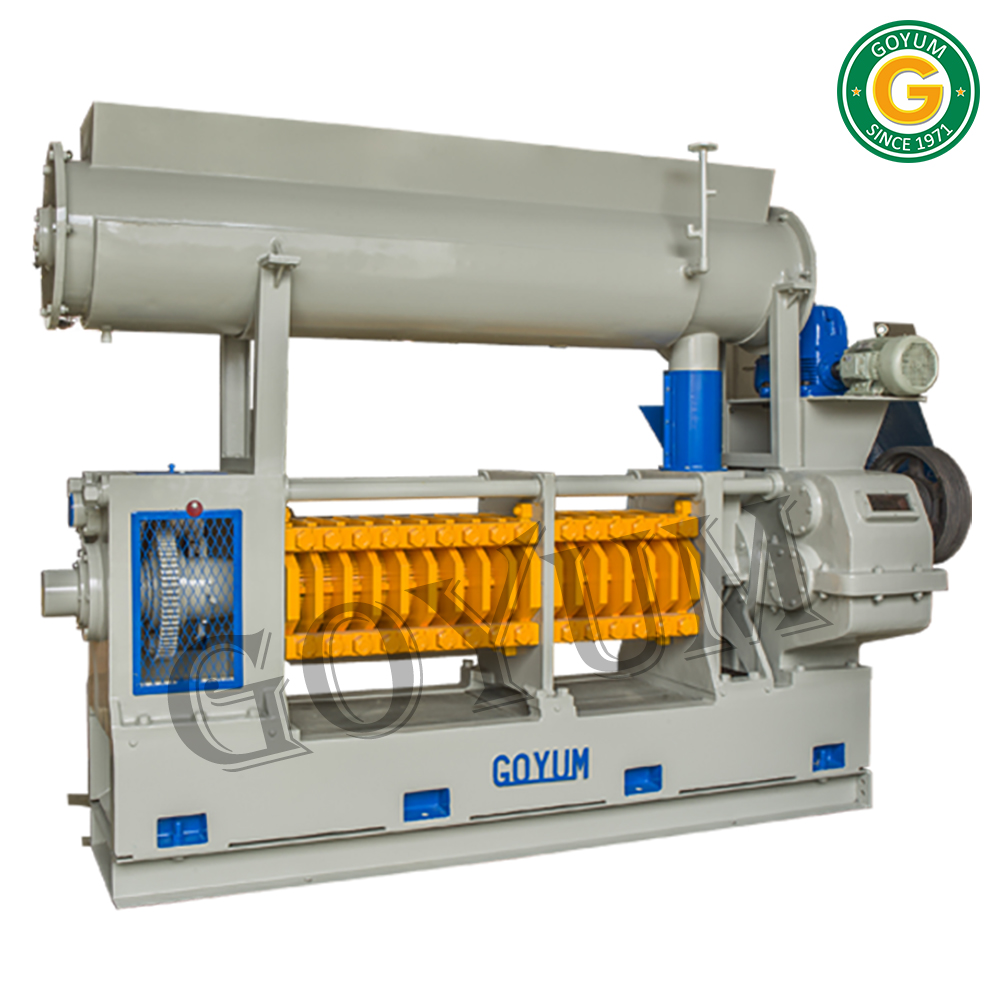

Groundnut Screw Oil Press

Groundnut Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Horsepower (HP)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Color
Green

Warranty
1 year warranty against manufacturing defect.

Groundnut Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Groundnut Screw Oil Press

Groundnut Screw Oil Press Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Powerful and Versatile Oil Extraction

Designed for heavy-duty commercial use, this screw oil press handles both cold and hot extraction, making it suitable for a variety of groundnut oil production needs. Its adaptable voltage options and semi-automatic controls offer efficiency without compromising on output quality or versatility.

Durable Build with Flexible Kettle Options

Choose between a long kettle or an advanced three-stage round kettle, both tailored to maximize extraction rates. The sturdy construction supports large-scale processing, and its reliable warranty ensures peace of mind for exporters and manufacturers alike.

FAQs of Groundnut Screw Oil Press:

Q: How is the oil extraction process conducted using this Groundnut Screw Oil Press?

A: The oil extraction process uses a semi-automatic screw mechanism to press groundnuts, efficiently extracting oil via either hot or cold extraction methods. Different kettle options optimize oil yield based on the users production requirements.

Q: What are the key benefits of the three-stage round kettle compared to the long kettle?

A: The three-stage round kettle enhances processing by enabling thorough steaming and roasting in stages, which can lead to higher oil yield and improved extraction quality, making it preferable for larger-scale operations.

Q: When is maintenance required for the oil press, and what does the warranty cover?

A: Routine maintenance is recommended after continuous operation to ensure consistent performance. The machine comes with a one-year warranty that covers manufacturing defects, providing reassurance to manufacturers and suppliers.

Q: Where is this Groundnut Screw Oil Press manufactured and supplied from?

A: This machine is manufactured in India and is available for export, making it accessible for suppliers and manufacturers seeking reliable oil extraction equipment worldwide.

Q: How does semi-automatic technology benefit the overall operation?

A: The semi-automatic system streamlines the oil extraction process by minimizing manual intervention, improving consistency, and allows operators to focus on monitoring oil output and machine performance.

Q: What voltage and power requirements must I consider before installation?

A: The press operates on voltages of 280, 380, or 440, and requires an 80 HP power supply. Proper electrical setup is essential for safe and effective operation, especially in commercial or industrial environments.
