Coconut Screw Oil Press

Coconut Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Voltage
280,380,440 Volt (v)

Power Consumption
40 Horsepower (HP)

Dimension (L*W*H)
8.6 x 4.7 x 13 Foot (ft)

Weight
4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) Kilograms (kg)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Coconut Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai / Mundra

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
300 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

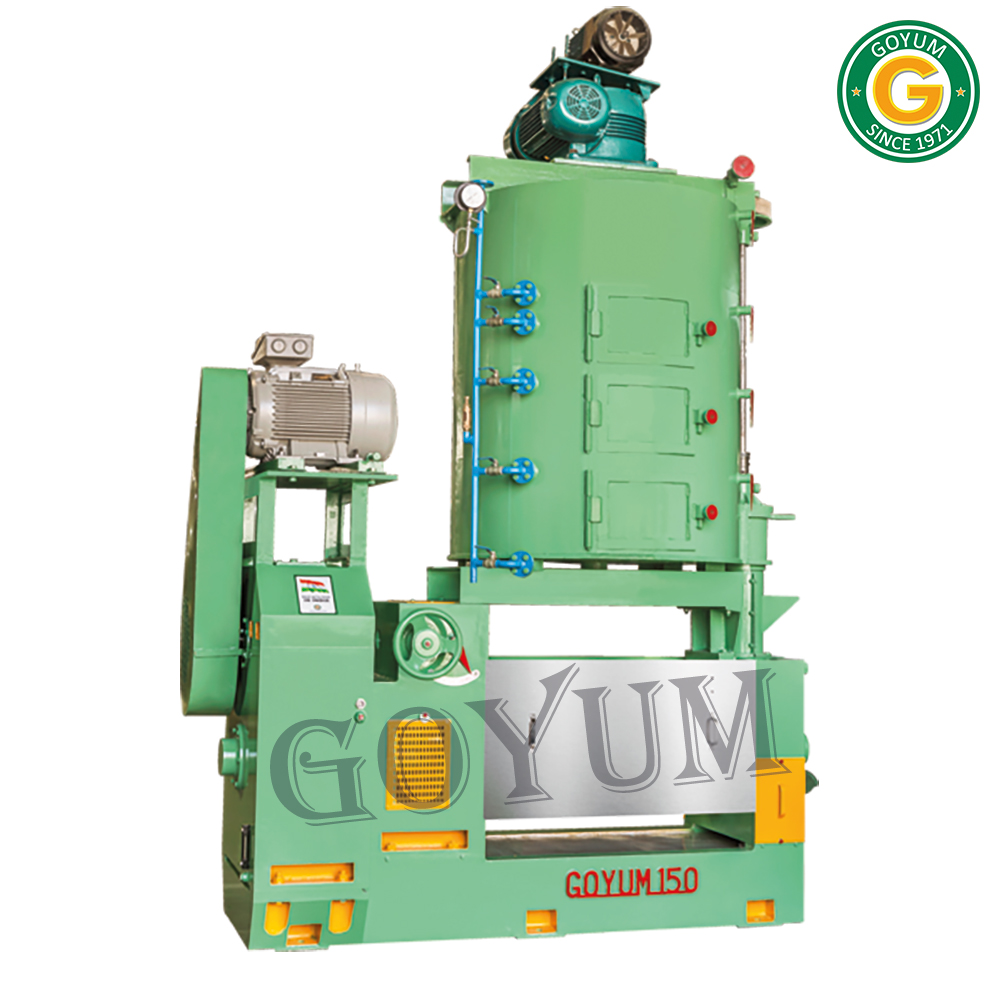

About Coconut Screw Oil Press

Coconut Screw Oil Press Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber	Steel Casting of Four Sections. Horizontally fitted Size: 7.5 Dia X 6.5 Dia X 45 Dia Long.
Worm Assembly	Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

High-Efficiency Oil Extraction

Engineered for performance, the Coconut Screw Oil Press Machine ensures maximum yield from coconut with minimal manual intervention. Its multi-stage kettle design enhances oil extraction and efficiency, making it ideal for commercial processing. The powerful 40 HP motor and precision engineering streamline production, offering consistent quality and output.

Durable and Reliable Build

Constructed with high-grade materials, this machine is built to last. The semi-automatic technology provides a balance between operational control and convenience. Each unit is rigorously tested for durability, backed by a one-year warranty against manufacturing defects for peace of mind and dependable operation.

Adaptable to Various Power Sources

Designed for versatility, this machine supports multiple voltages (280V, 380V, and 440V), ensuring compatibility with diverse industrial electrical setups. Its sturdy frame and green finish make it a durable choice for continuous, demanding use in different facility environments across India and internationally.

FAQ's of Coconut Screw Oil Press Machine:

Q: How does the Coconut Screw Oil Press Machine operate?

A: The Coconut Screw Oil Press Machine employs a semi-automatic screw-press mechanism, utilizing either three or four-stage kettles depending on the model. Coconuts are fed into the machine, where they are gradually pressed to extract oil efficiently, with minimal operator intervention.

Q: What is the recommended usage process for this machine?

A: To use the machine, first prepare the coconuts by cleaning and breaking them. Feed the coconut pieces into the hopper, set the desired temperature and speed, then start the machine. The oil is extracted stage by stage, and the residue is collected separately for further processing or disposal.

Q: Where can the Coconut Screw Oil Press Machine be installed?

A: This machine is best suited for commercial and industrial oil production facilities due to its size and weight. It can be installed in factories, processing plants, or agro-based industries equipped with the required voltage and space for operation.

Q: What are the benefits of using a multi-stage kettle press machine?

A: The multi-stage kettle design maximizes oil extraction yield and quality by allowing the material to be processed at different temperatures and pressures. This results in higher efficiency, better oil purity, and reduced wastage.

Q: When should maintenance be performed on the Coconut Oil Press Machine?

A: Routine maintenance, such as checking the screw press, cleaning the kettles, and inspecting electrical components, should be conducted after every production cycle or as per the manufacturer's guidelines to ensure optimal performance and longevity.

Q: What warranty and after-sales support are provided?

A: The machine comes with a one-year warranty against manufacturing defects, ensuring support and service for any qualifying issue experienced during normal usage within this period.

Q: How does the power and voltage specification impact its usage?

A: Supporting 40 HP motors and adaptable voltage ranges (280, 380, 440 V), the machine can be installed in various industrial environments, ensuring consistent performance and flexibility regardless of local electrical standards.
