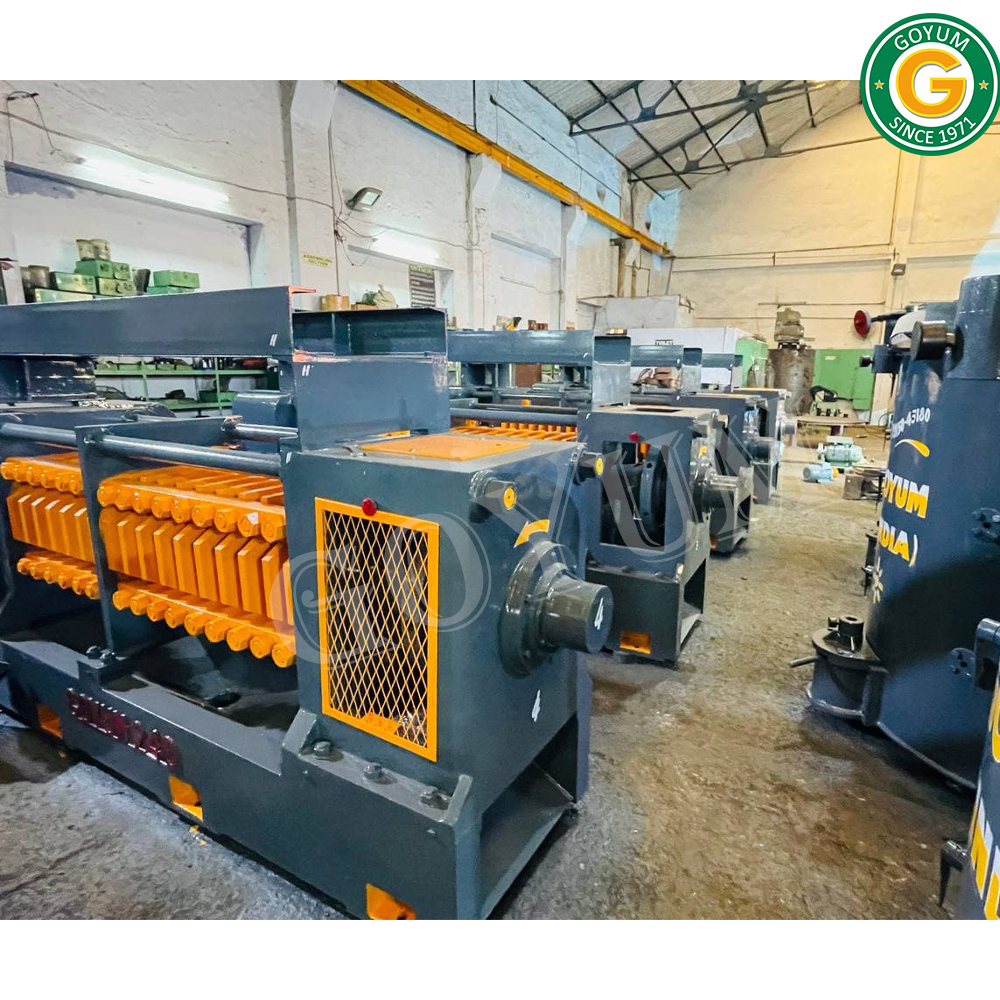

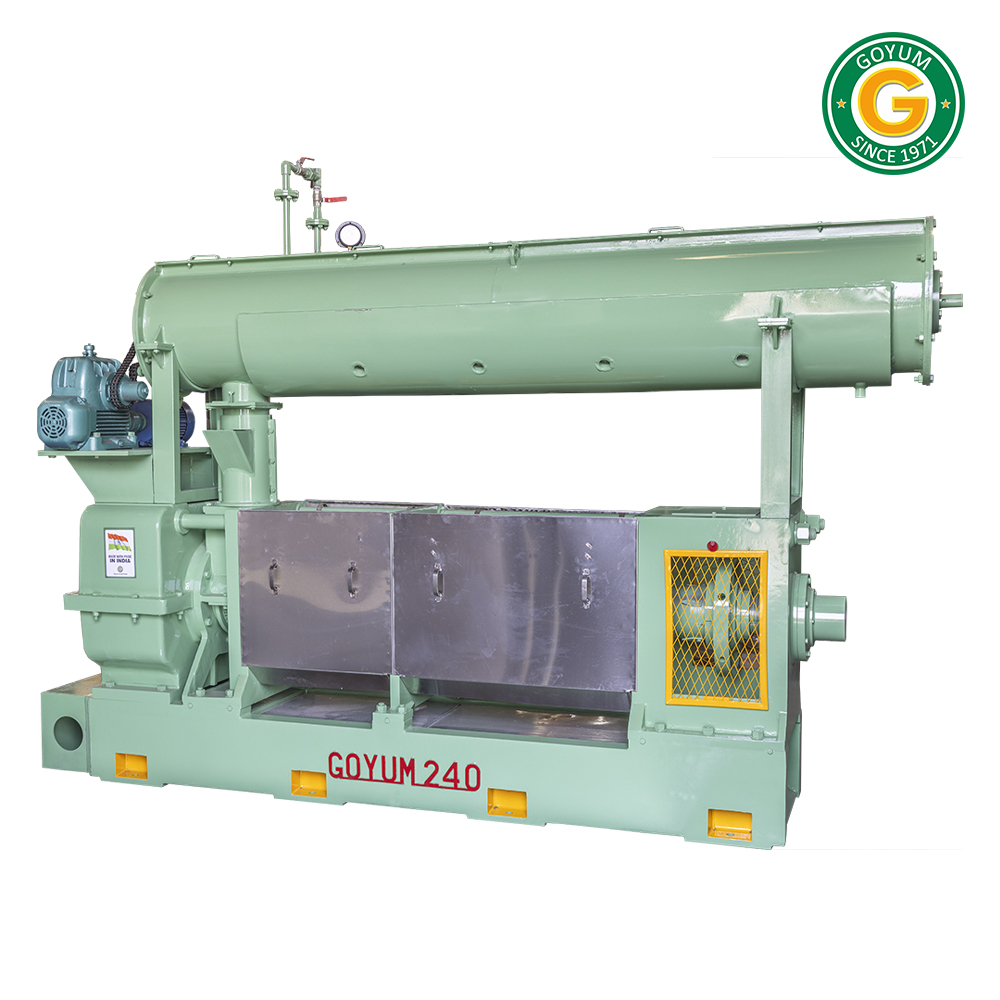

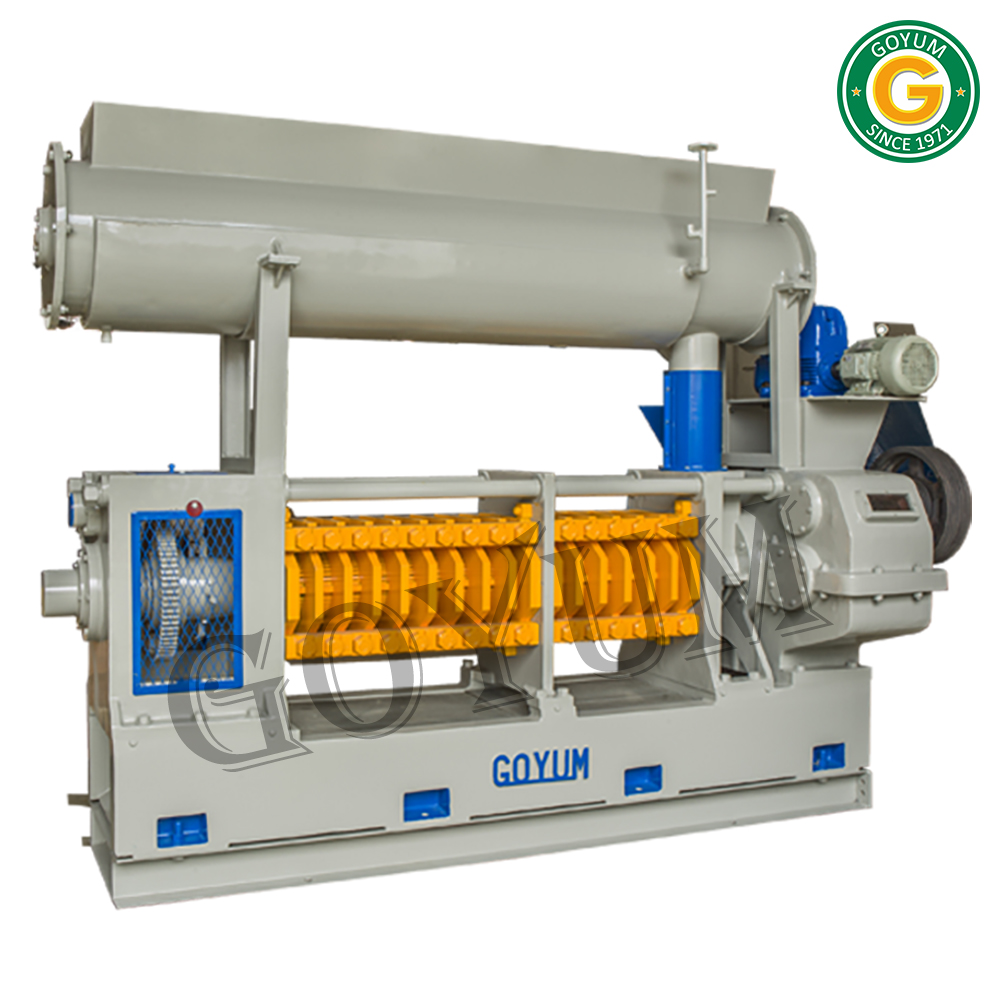

Canola / Rapeseed Screw Oil Press

Canola / Rapeseed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Warranty
1 year warranty against manufacturing defect.

Canola / Rapeseed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
300 Pieces Per Year

Delivery Time
50 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Canola / Rapeseed Screw Oil Press

Canola / Rapeseed Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Advanced Extraction Technology

Benefit from the semi-automatic operation of this screw oil press, which streamlines rapeseed and canola oil extraction. The machine employs advanced engineering to deliver high yield and purity in output while minimizing manual intervention, making the extraction process both efficient and user-friendly.

Adaptable and Heavy-Duty Design

Designed to handle industrial production, this press offers flexible voltage compatibility (280, 380, 440V) and a powerful 80 HP motor. Its substantial weight and sturdy construction (available in two kettle configurations) ensure durability, consistent performance, and adaptability for a range of oilseed processing requirements.

FAQs of Canola / Rapeseed Screw Oil Press:

Q: How does the Canola / Rapeseed Screw Oil Press operate?

A: The machine uses a semi-automatic screw mechanism to extract oil from canola or rapeseed through both cold and hot extraction processes. Simply load the seeds and select the desired settings for efficient oil extraction with minimal manual oversight.

Q: What types of extraction can this machine perform?

A: This oil press is engineered to handle both cold and hot extraction methods, giving operators flexibility according to the oil quality and yield required.

Q: When should I perform maintenance on this oil press?

A: Routine maintenance is recommended following the manufacturers guidelinestypically checking critical components and lubricating moving parts after each production cycle, or as specified in the user manual.

Q: Where is this screw oil press manufactured and supplied from?

A: The Canola / Rapeseed Screw Oil Press is manufactured, exported, and supplied by an established company based in India, ensuring quality manufacturing standards and dependable support.

Q: What is the process for extracting oil using this machine?

A: Seeds are fed into the machines long kettle or three-stage round kettle. The screw press then compresses the seeds, extracting oil through mechanical pressure. The oil flows out for collection, while residue is separated efficiently.

Q: How much power does the machine consume during operation?

A: The press consumes 80 horsepower (HP) during use, enabling rapid and consistent oil extraction even during high-capacity production sessions.

Q: What are the benefits of using this screw oil press for canola or rapeseed?

A: This machine offers high efficiency, versatile extraction options, durable construction, and easy operation. The inclusion of a one-year warranty against manufacturing defects further enhances its value for oil producers.
