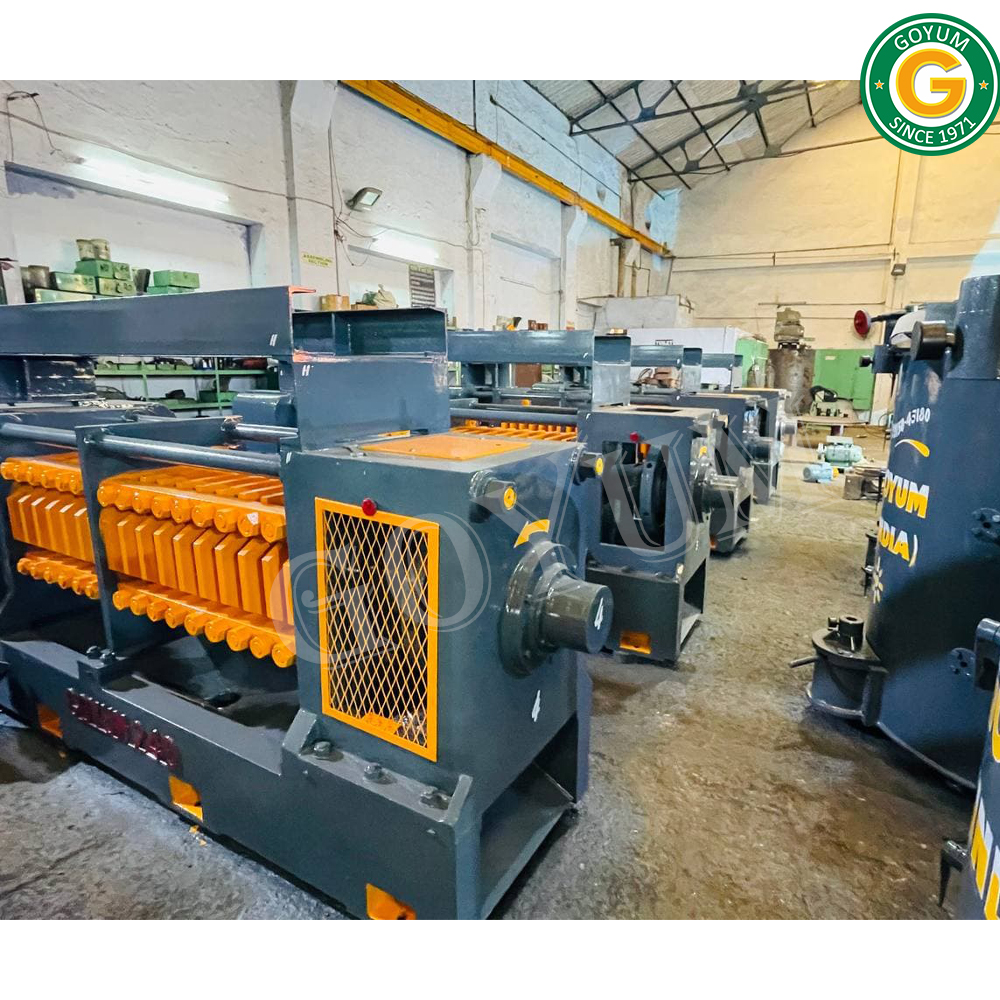

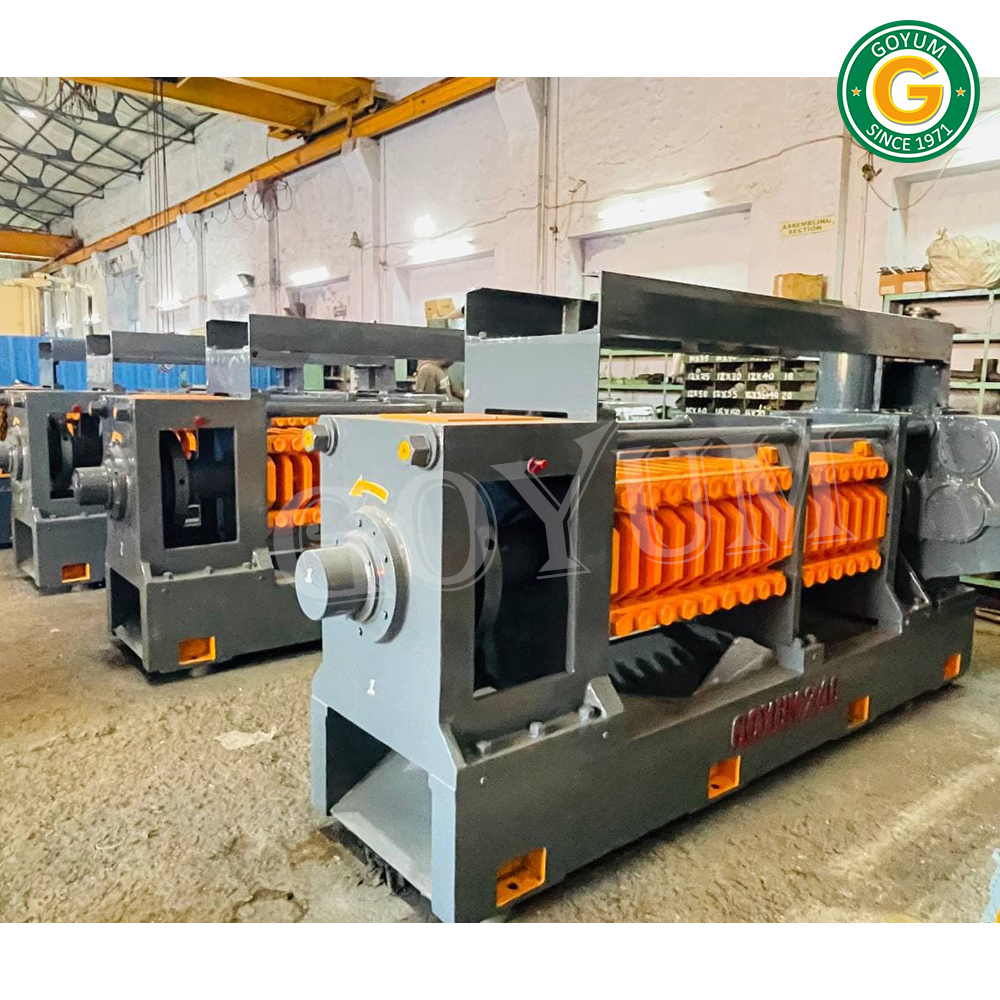

Jatropha Screw Oil Press

Jatropha Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Color
Green

Warranty
1 year warranty against manufacturing defect.

Jatropha Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Jatropha Screw Oil Press

Jatropha Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

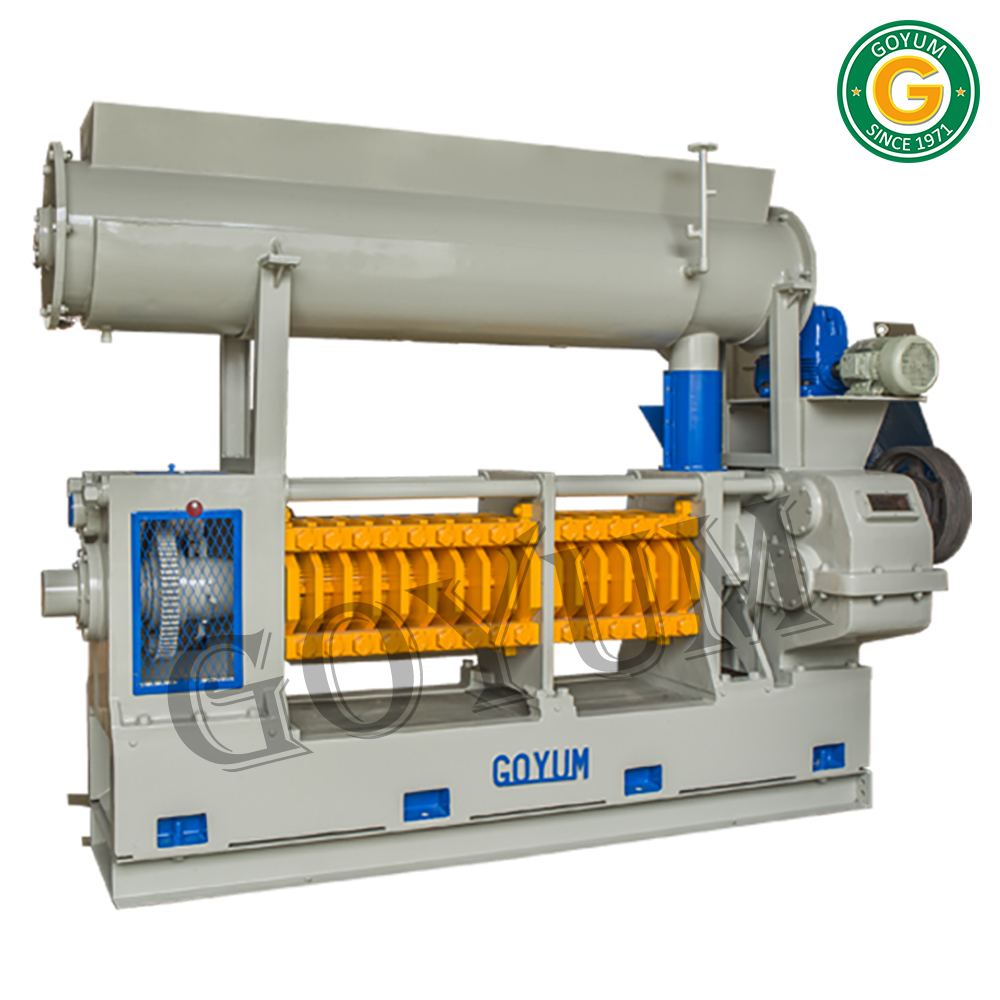

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.

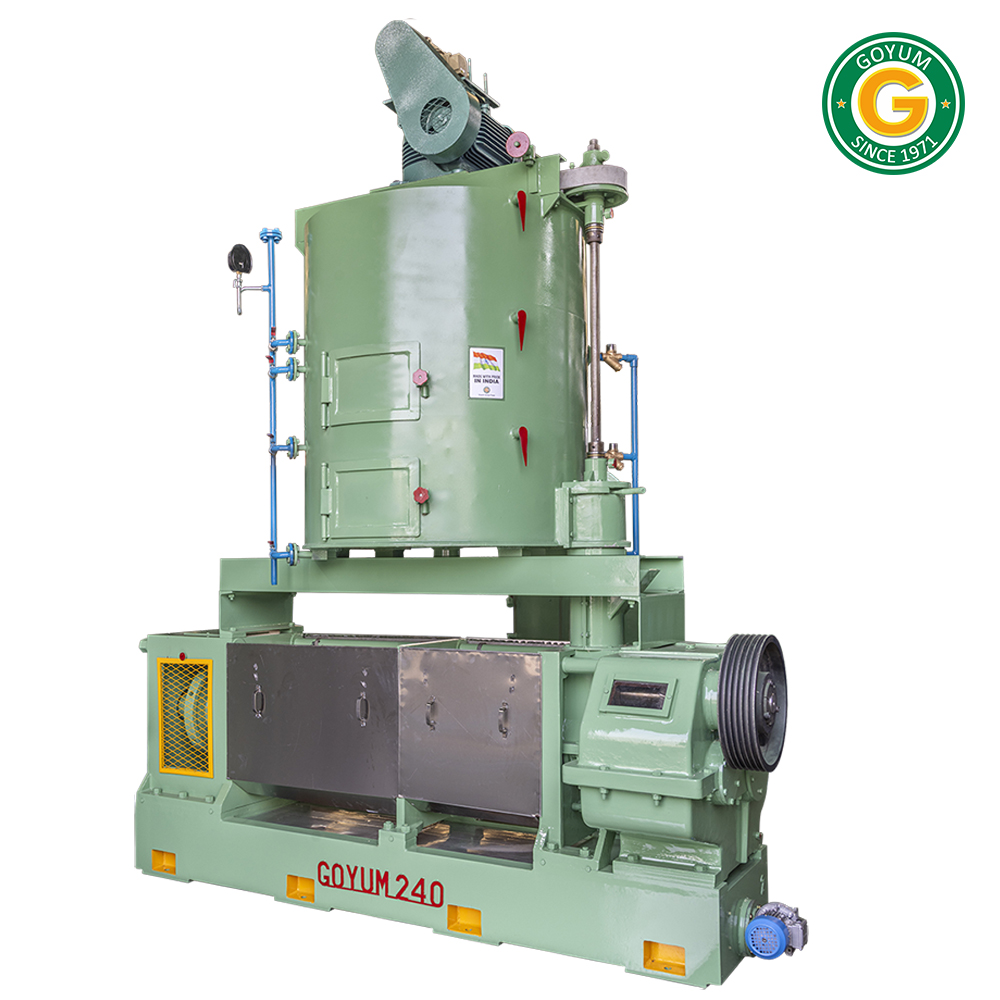

Round Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Efficient Oil Extraction Technology

Utilizing semi-automatic controls, the Jatropha Screw Oil Press streamlines operations for both hot and cold oil extraction. Its advanced design allows for quick adaptation between extraction types, maximizing yield and maintaining oil quality for commercial-scale production.

Engineered for Industrial-Scale Performance

This machine boasts a substantial output powered by 80 HP, suitable for continuous use in demanding settings. Its sturdy construction and sizable dimensions accommodate high volumes, making it well-suited for large exporters, manufacturers, and suppliers throughout India.

Wide Compatibility and Reliable Support

The press supports varying voltages (280V, 380V, and 440V), ensuring flexibility across different industrial setups. A comprehensive one-year warranty covers all manufacturing defects, offering buyers confidence and peace of mind.

FAQs of Jatropha Screw Oil Press:

Q: How is the Jatropha Screw Oil Press operated and maintained?

A: Operation of the Jatropha Screw Oil Press is semi-automatic, allowing users to control key functions while automating repetitive tasks for greater efficiency. Basic maintenance, such as regular cleaning and inspection, ensures optimal performance and longevity.

Q: What types of oil extraction processes does this machine support?

A: The press supports both cold and hot oil extraction, making it suitable for processing a wide range of oilseeds with different extraction requirements.

Q: When should the press be used with the long kettle versus the three-stage round kettle?

A: The long kettle is ideal for continuous standard extractions, while the three-stage round kettle is recommended for higher capacity or more intensive processing, depending on the volume and nature of seeds being processed.

Q: Where can the Jatropha Screw Oil Press be installed and used?

A: This machine is engineered for industrial installations and can be set up at oil mills, seed processing facilities, or other manufacturing sites across India, provided the electrical supply matches the voltage requirements.

Q: What is the process for extracting oil using this screw press?

A: Seeds are loaded into the hopper, after which the press utilizes high-pressure screws to extract oil efficiently. The setup can be adjusted to handle both hot and cold extraction, depending on the operators needs.

Q: How can users benefit from choosing this machine?

A: Users benefit from high extraction efficiency, versatile operation, and durable construction. With a one-year warranty and compatibility with multiple voltage ranges, the machine delivers both performance and reliability.
