Peanut / Earthnut Screw Oil Press

Peanut / Earthnut Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Power Mode
Other

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Warranty
1 year warranty against manufacturing defect.

Peanut / Earthnut Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Peanut / Earthnut Screw Oil Press

Peanut / Earthnut Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

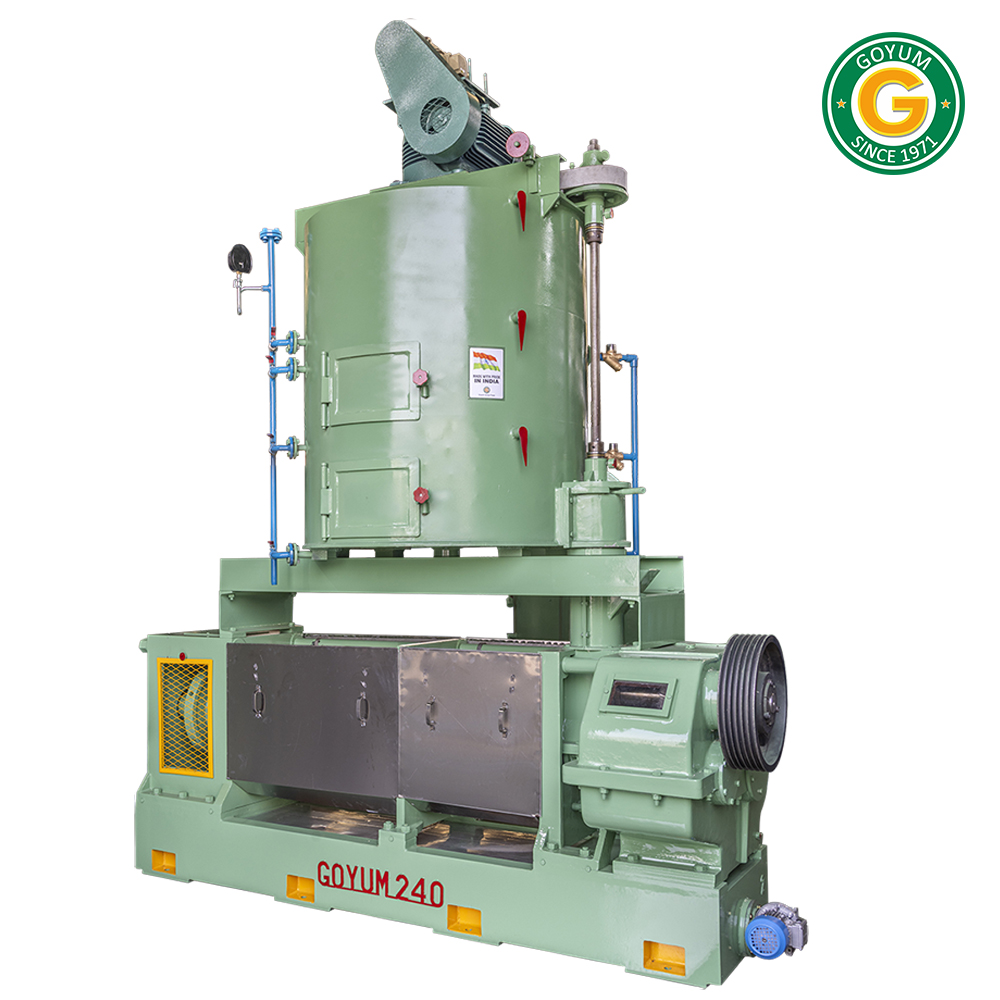

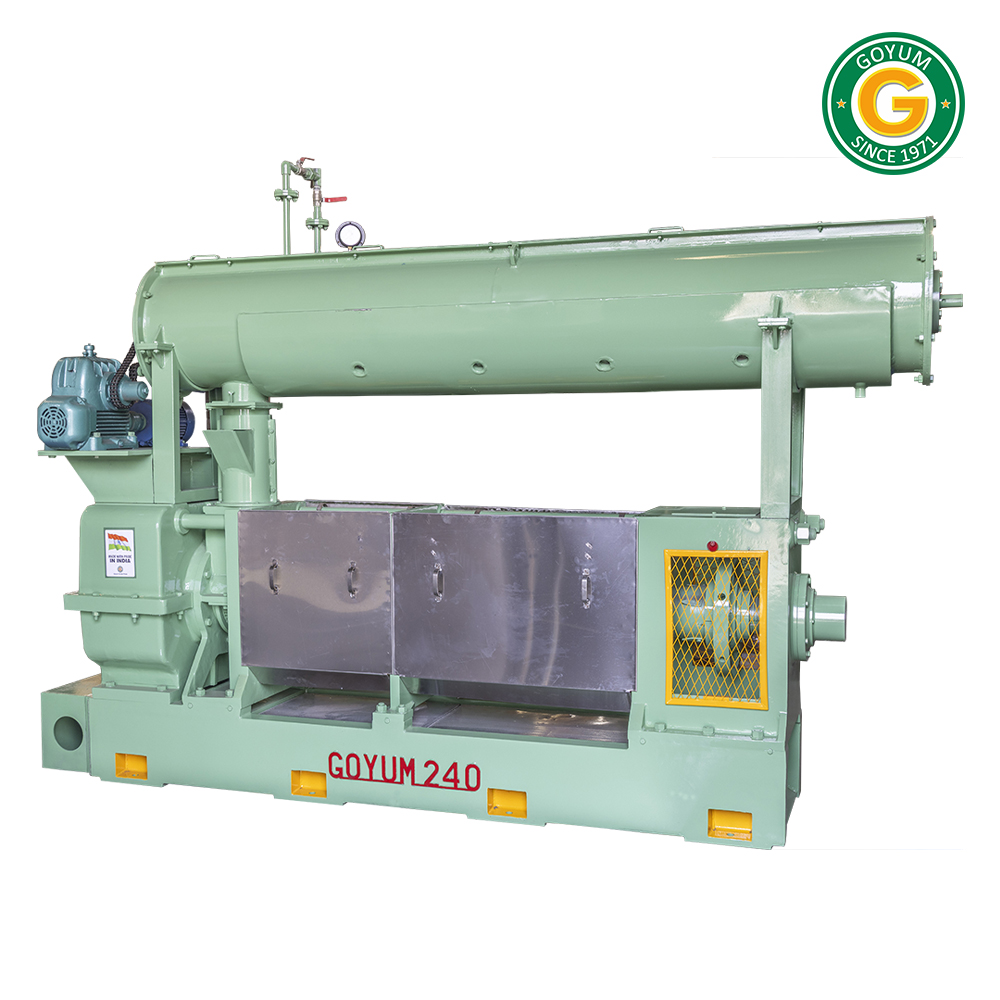

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Versatile Extraction Technology

Our screw oil press utilizes semi-automatic technology, offering both single and multi-stage extraction for enhanced oil yield. Its durable build and adaptable extraction process make it suitable for diverse industrial needs.

Optimized for Efficiency and Power

Designed with power consumption of 80 HP, this press ensures consistent, high-volume output with minimal operational challenges. The machines sturdy construction guarantees long-lasting performance and reduced maintenance worries.

Trusted by Exporters and Manufacturers

As a leading exporter, manufacturer, and supplier in India, we provide reliable oil extraction equipment with comprehensive after-sales support and a one-year warranty against manufacturing defects, giving you peace of mind in every purchase.

FAQs of Peanut / Earthnut Screw Oil Press:

Q: How does the semi-automatic Peanut Screw Oil Press operate?

A: The semi-automatic press uses a screw mechanism to crush peanuts or earthnuts, efficiently extracting oil with the option for both single and three-stage extraction. Simply load the raw material, select the appropriate kettle, and start the automated process.

Q: What are the benefits of using both Long and Three Stage Round Kettles?

A: Long Kettles offer continuous, steady extraction, while Three Stage Round Kettles maximize oil yield through multiple pressing stages, adapting to varying processing volumes and output requirements.

Q: When should I perform routine maintenance on the oil press?

A: Routine maintenance should be carried out every 500 operating hours or as recommended in the user manual to ensure smooth function and prevent wear, ensuring longevity and sustained efficiency.

Q: Where can this oil press be installed and operated?

A: This press is designed for industrial settings including oil mills, food processing plants, and large-scale agro-based facilities. Its robust build and voltage flexibility (280, 380, 440 V) make it suitable for diverse locations.

Q: What is the process for extracting oil with this machine?

A: The process involves feeding peanuts or earthnuts into the hopper, after which the screw press mechanism crushes and compresses them. The extracted oil is collected and filtered, while the remaining cake is discharged for further use or disposal.

Q: How does the one-year warranty apply to this equipment?

A: The press comes with a one-year warranty covering any manufacturing defects. In case of any such issues, our support team will provide repair or replacement as per warranty terms.

Q: What distinguishes this screw oil press for exporters and suppliers in India?

A: This machines high capacity, durable construction, and dependable after-sales service make it ideal for exporters and suppliers looking to meet international quality standards and delivery timelines.
