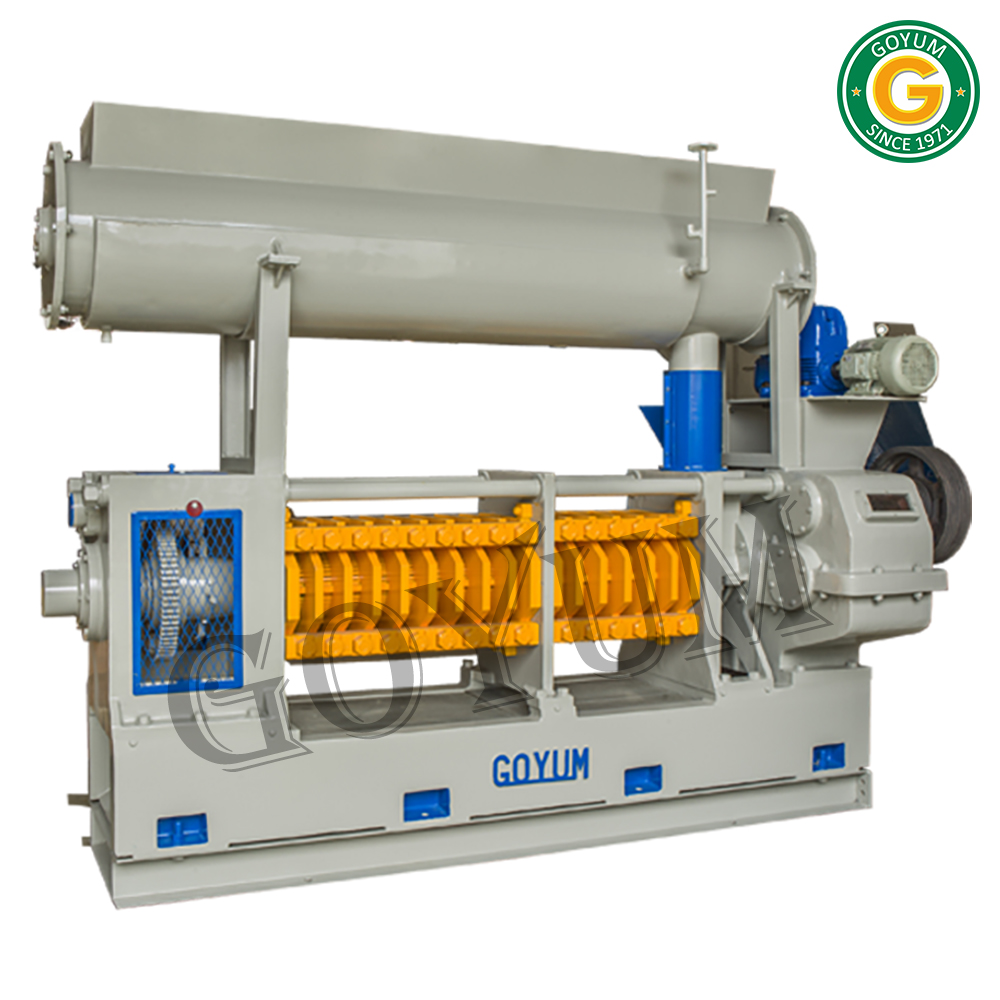

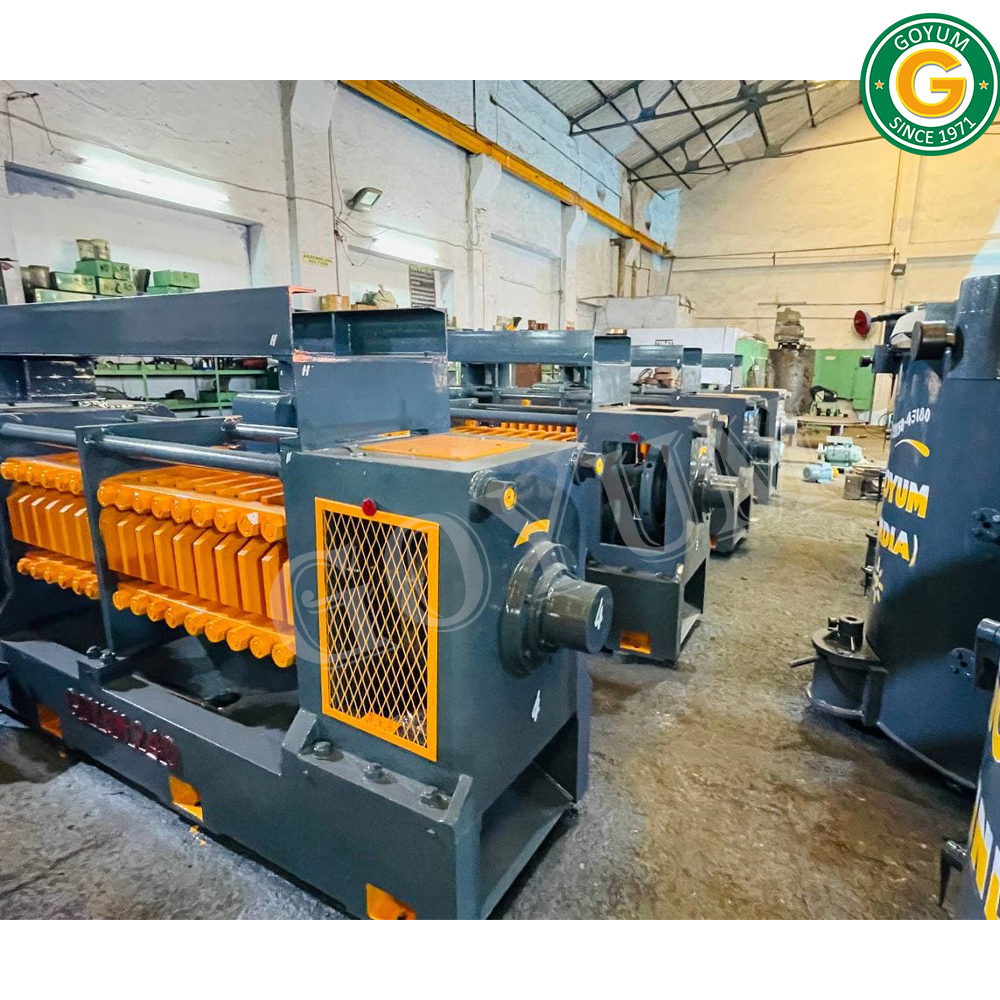

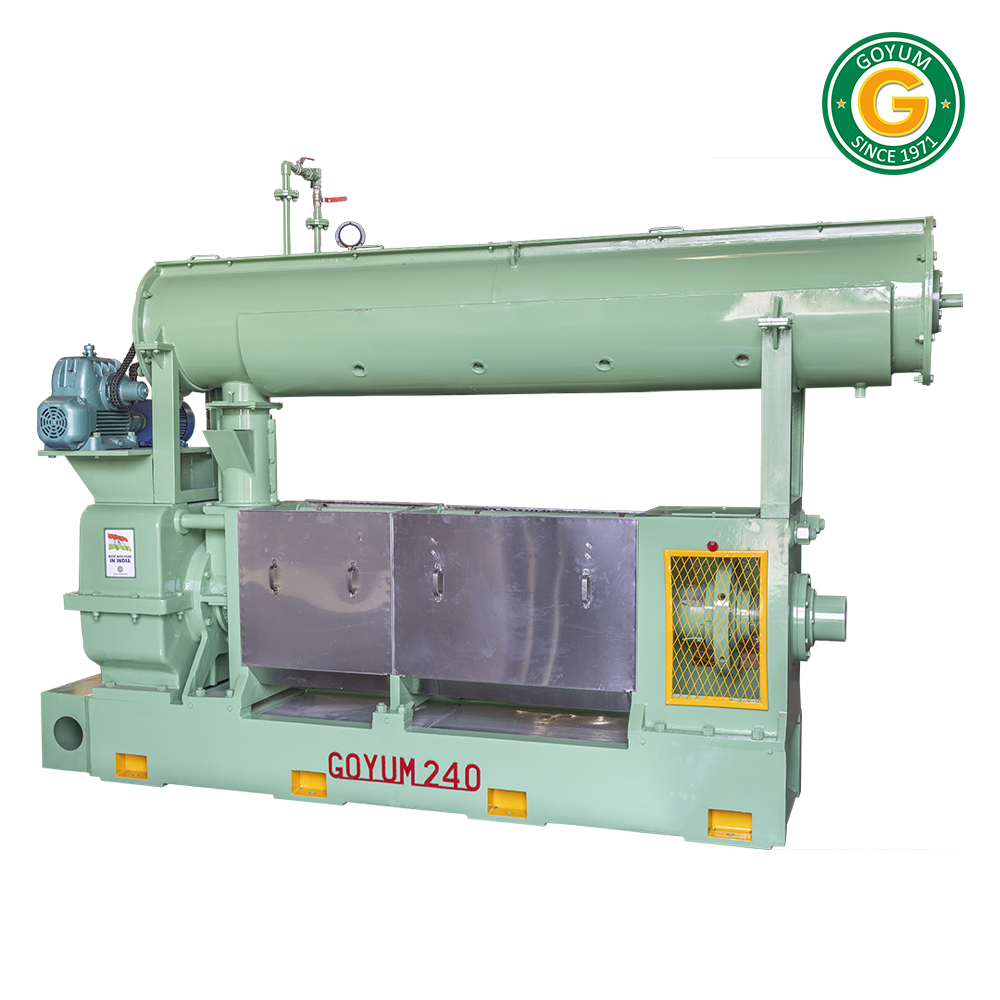

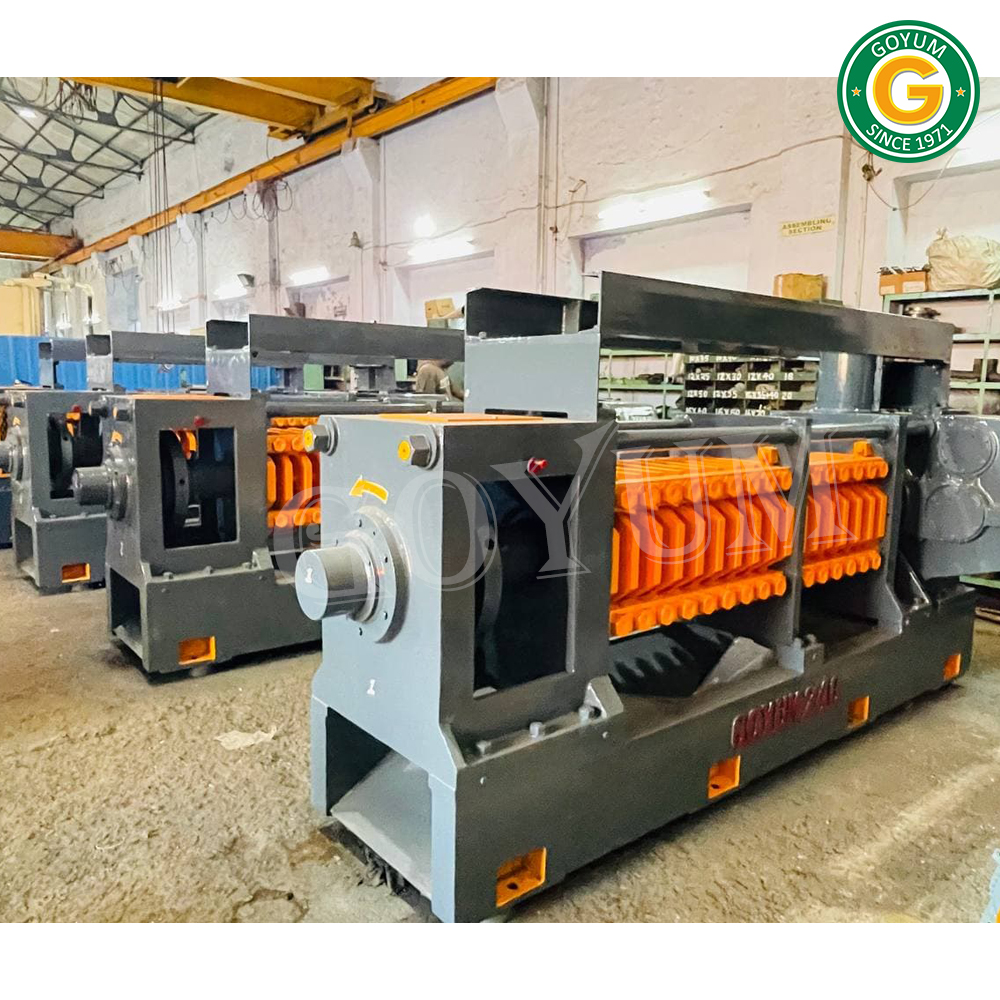

Neem Seed Screw Oil Press

Neem Seed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Material
Mild steel

Technology
Semi Automatic

Power Mode
Electric

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Power Consumption
80 Horsepower (HP)

Extraction Type
Both

WorkingSpeed
960 RPM

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle Kilograms (kg)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Neem Seed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Neem Seed Screw Oil Press

Neem Seed Screw Oil Press Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Reliable Construction and Versatile Power

Built from mild steel, the Neem Seed Screw Oil Press is designed for longevity in demanding industrial environments. Its adaptable voltage compatibility-ranging from 220V to 415V-ensures it seamlessly integrates into various power systems within manufacturing setups. The electric power mode and 80 HP engine provide steady, strong performance for long hours of extraction.

Efficient Operation and Extraction Process

With a working speed of 960 RPM and dimensions of 10.2 x 4.1 x 7.7 feet, the machine is engineered for optimal productivity. It accommodates both cold and hot extraction methods, enhancing versatility for different oil qualities. The option of a long kettle (5200 kgs) or a three-stage round kettle (6500 kgs) allows users to select the right configuration for their extraction needs.

Comprehensive Support and Warranty

The Neem Seed Screw Oil Press comes with a one-year warranty against manufacturing defects, providing assurance and support to users. Whether as an exporter, manufacturer, or supplier based in India, clients can rely on extensive post-purchase assistance and high-quality, consistent performance.

FAQ's of Neem Seed Screw Oil Press:

Q: How does the Neem Seed Screw Oil Press extract oil from seeds?

A: This oil press uses a screw mechanism to crush neem seeds and extract oil through either cold or hot press processes. The seeds are fed into the machine, and the rotating screw applies high pressure, effectively separating oil from the seed material without significant nutrient loss.

Q: What benefits does the semi-automatic technology of the Neem Seed Screw Oil Press offer?

A: The semi-automatic functionality reduces manual effort while maintaining control over the extraction process. It improves extraction efficiency, offers ease of use, and helps minimize errors, making it suitable for small to medium industrial applications.

Q: When should I choose a long kettle versus a three-stage round kettle for this oil press?

A: The choice depends on your production requirements. Opt for the long kettle (5200 kgs) for standard extraction needs or select the three-stage round kettle (6500 kgs) if you require continuous, high-capacity operations and enhanced oil extraction efficiency.

Q: Where is the ideal location to install this Neem Seed Screw Oil Press?

A: This machine is best suited for installation in industrial settings such as oil mills, seed processing plants, or manufacturing facilities. Ensure sufficient floor space (10.2 x 4.1 x 7.7 ft) and adequate electric supply (220V-415V) for safe and efficient operation.

Q: What is the process of operating this Neem Seed Screw Oil Press?

A: After setting up and connecting to the required voltage, feed cleaned neem seeds into the hopper. Select the desired extraction type (cold or hot), initiate the machine, and monitor operations as it runs at 960 RPM. Routine cleaning and maintenance will ensure consistent performance.

Q: How much power does the Neem Seed Screw Oil Press consume, and what does this mean for operational costs?

A: The press operates at 80 horsepower, which supports heavy-duty usage and high extraction rates. While power consumption is notable, the machine's productivity ensures that operational costs per unit of oil extracted remain competitive in industrial environments.

Q: What makes this oil press a beneficial choice for exporters, manufacturers, or suppliers in India?

A: Offering reliable performance, versatile voltage compatibility, and strong construction, this press meets the needs of the Indian market. The included one-year warranty and easy-to-service design further enhance its value for businesses aiming for consistent, high-output oil production.
