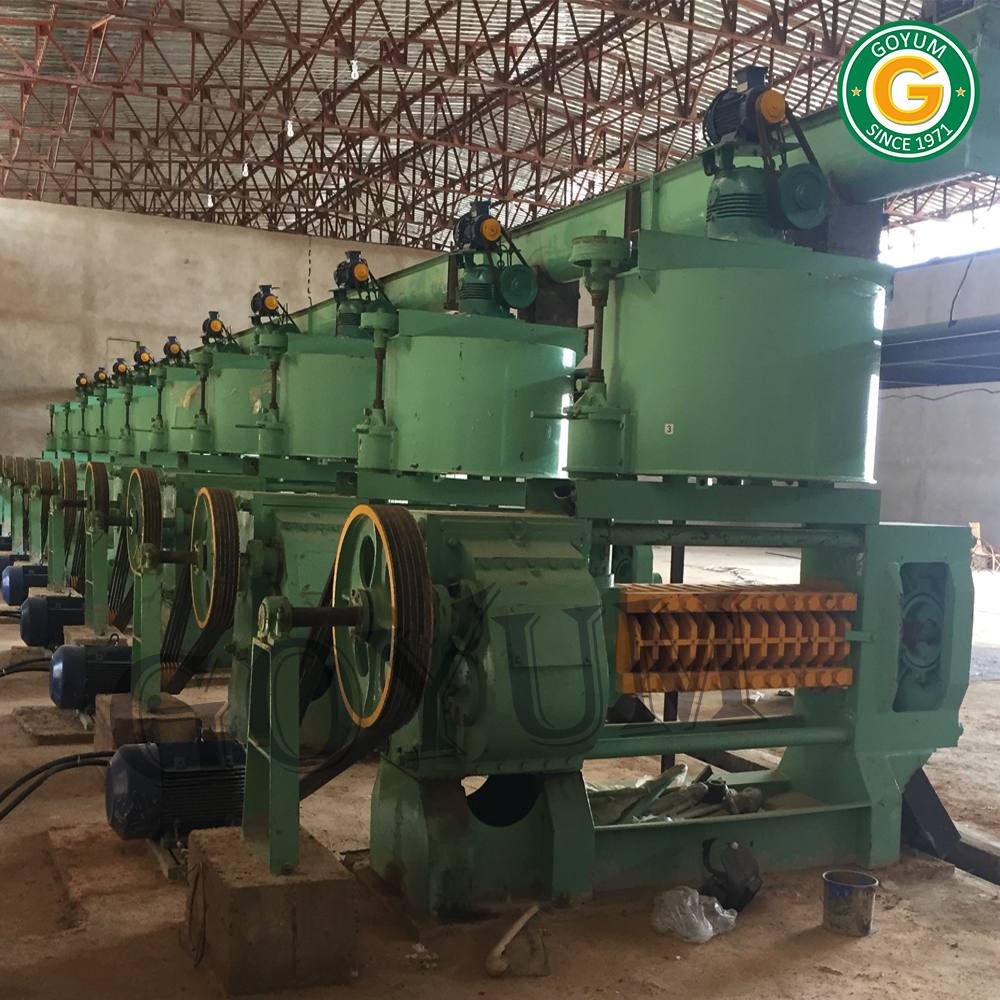

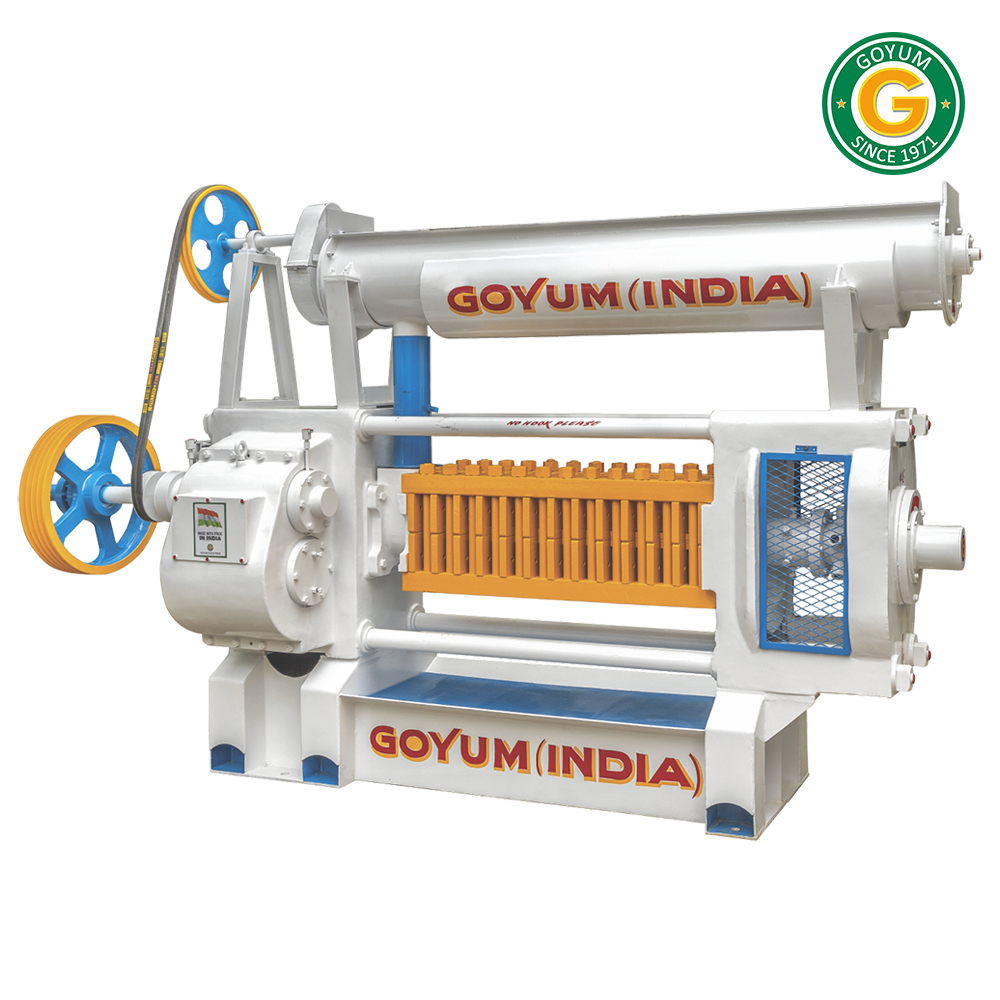

Niger Seed Oil Crushing Machine

Niger Seed Oil Crushing Machine Specification

Type
Cold & Hot Pressing Machine

Production Capacity
18 - 20 Ton in 24 Hours

Automatic Grade
Semi-Automatic

Voltage
280,380,440 Volt (v)

Power
55 Horsepower (HP)

Weight (kg)
5700 Kilograms (kg)

Dimension (L*W*H)
11.8 x 4.3 x 11.10 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Niger Seed Oil Crushing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
300 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Niger Seed Oil Crushing Machine

Niger Seed Oil Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: 7 Dia X 44 Dia Long,
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three or Four Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Efficient Oil Extraction

This machine allows for efficient oil extraction from niger seeds with both cold and hot pressing modes. Its semi-automatic design ensures ease of operation while maintaining high output. Capable of processing up to 20 tons in a day, it is suitable for large-scale industrial applications. The robust frame ensures longevity and consistent performance, making it a reliable asset for oil producers.

Robust Construction and Design

Constructed to withstand rigorous operations, this oil crushing machine is built with high-quality materials and weighs 5700 kg. Its generous size (11.8 x 4.3 x 11.10 ft) accommodates substantial input volumes, ensuring uninterrupted processing. The machines green exterior not only gives it a distinctive look but also aligns with industry preferences for durable, visible equipment.

User-Friendly and Supported by Warranty

Equipped with a semi-automatic functionality, the machine simplifies oil extraction for operators, reducing manual effort. Additionally, the one-year warranty against manufacturing defects provides assurance and support, allowing buyers to invest with confidence. The machines safety features and consistent performance make it an ideal choice for businesses seeking reliability and ease of maintenance.

FAQs of Niger Seed Oil Crushing Machine:

Q: How does the Niger Seed Oil Crushing Machine operate for oil extraction?

A: The machine uses both cold and hot pressing techniques to extract oil from niger seeds. With its semi-automatic mechanism and powerful 55 HP motor, operators can efficiently process seeds with minimal manual intervention, achieving maximum oil yield.

Q: What type of voltage and power requirements does the machine have?

A: This oil crushing machine can be operated using 280V, 380V, or 440V power supplies and requires 55 horsepower. Such specifications enable it to perform heavy-duty processes needed for large-scale oil production.

Q: When should I perform maintenance on the machine?

A: Routine maintenance is recommended after every production cycle or based on factory workload. Regular checks help ensure optimal performance and extend the life of the machine.

Q: Where is this machine most commonly used?

A: Primarily, this machine is suited for commercial oil extraction units, processing factories, and industrial operations where large volumes of niger seeds are processed, particularly throughout India.

Q: What benefits does the semi-automatic feature offer?

A: The semi-automatic design reduces labor requirements and enhances operational efficiency, allowing operators to manage the process with less effort while maintaining consistent output quality.

Q: How do I use the cold and hot pressing options?

A: Operators can select between cold pressing for retaining maximum nutrient content and hot pressing for higher extraction rates. Adjustments are made on the control interface to switch between modes as needed.

Q: What warranty coverage is included with the machine?

A: Buyers receive a 1-year warranty that covers any manufacturing defects. During this period, any issues arising from manufacturing flaws will be addressed by the manufacturer or supplier.
