Large Scale Multi Oilseed Crushing Machine
3154000.0 INR/Unit
Product Details:
- Material Mild Steel
- Production Capacity 20 - 25 Ton/day
- Automatic Grade Semi-Automatic
- Voltage 280,380,440 Volt (v)
- Power 80 Horsepower (HP)
- Weight (kg) 5200 Kilograms (kg)
- Dimension (L*W*H) 10.2 x 4.1 x 7.7 Foot (ft)
- Click to View more
X
Large Scale Multi Oilseed Crushing Machine Price And Quantity
- 1 Unit
- 3154000.0 INR/Unit
Large Scale Multi Oilseed Crushing Machine Product Specifications
- 80 Horsepower (HP)
- 10.2 x 4.1 x 7.7 Foot (ft)
- 5200 Kilograms (kg)
- 1 year warranty against manufacturing defect.
- 20 - 25 Ton/day
- Mild Steel
- 280,380,440 Volt (v)
- Semi-Automatic
Large Scale Multi Oilseed Crushing Machine Trade Information
- Letter of Credit (L/C) Telegraphic Transfer (T/T)
- 170 Unit Per Year
- 20 Days
- "Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."
- All India
Product Description

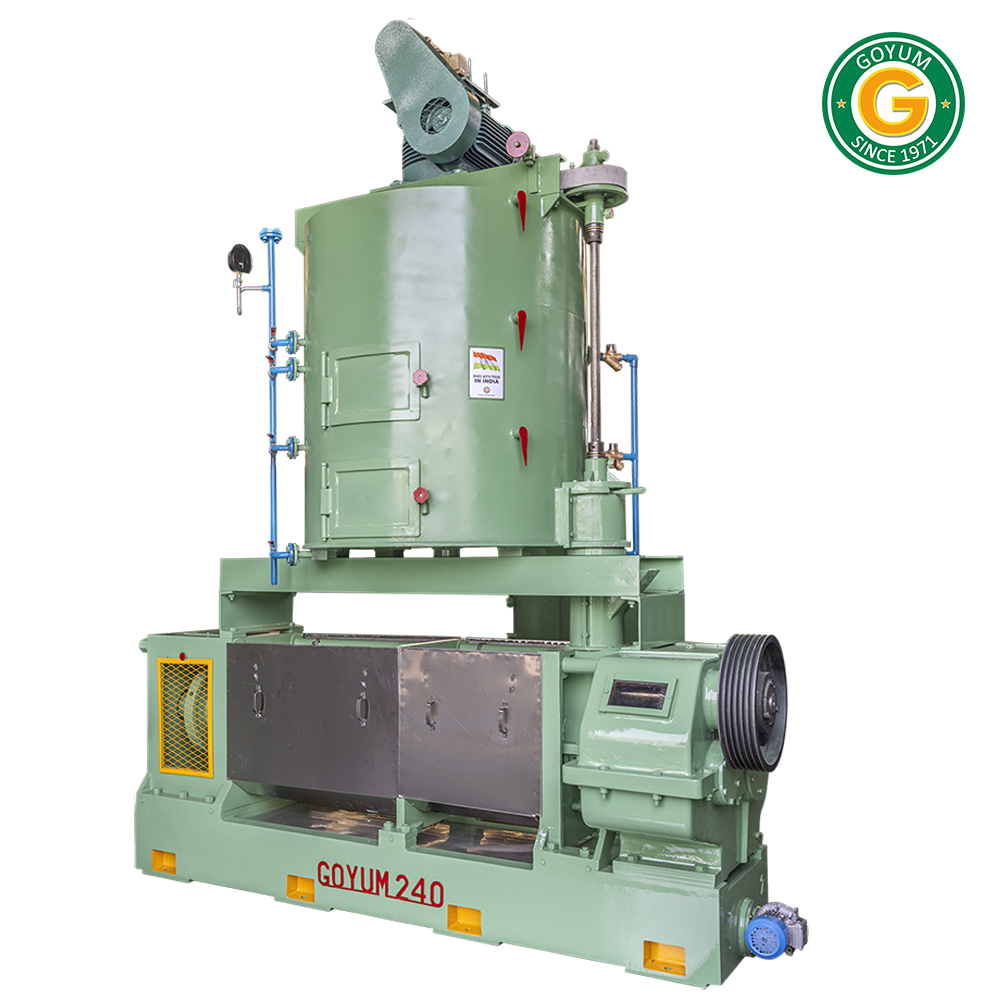

Large Scale Multi Oilseed Crushing Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with Round Kettle / Cooker for Export Market.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of 48 for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
