Send InquiryIndustrial Edible Oil Crushing Machine
Industrial Edible Oil Crushing Machine Specification
- Type
- Cold & Hot Pressing Machine
- Production Capacity
- 20 - 25 Ton in 24 Hours
- Automatic Grade
- Semi-Automatic
- Voltage
- 280,380,440 Volt (v)
- Power
- 80 Horsepower (HP)
- Weight (kg)
- 5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle
- Dimension (L*W*H)
- 10.2 x 4.1 x 7.7 Foot (ft)
- Warranty
- 1 year warranty against manufacturing defect.
Industrial Edible Oil Crushing Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 170 Pieces Per Year
- Delivery Time
- 20 Days
- Packaging Details
- "Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."
- Certifications
- ISO 9001:2008, ISO 14001 : 2015 Certified
About Industrial Edible Oil Crushing Machine

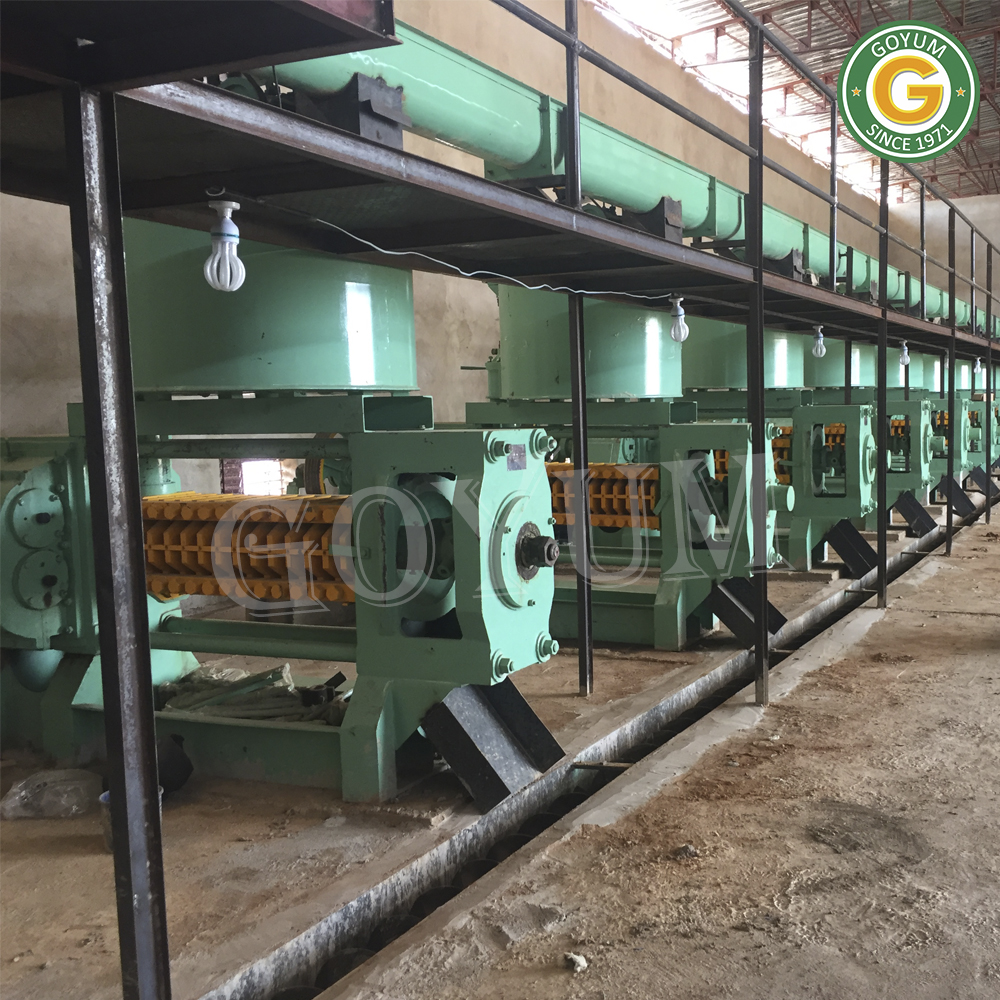

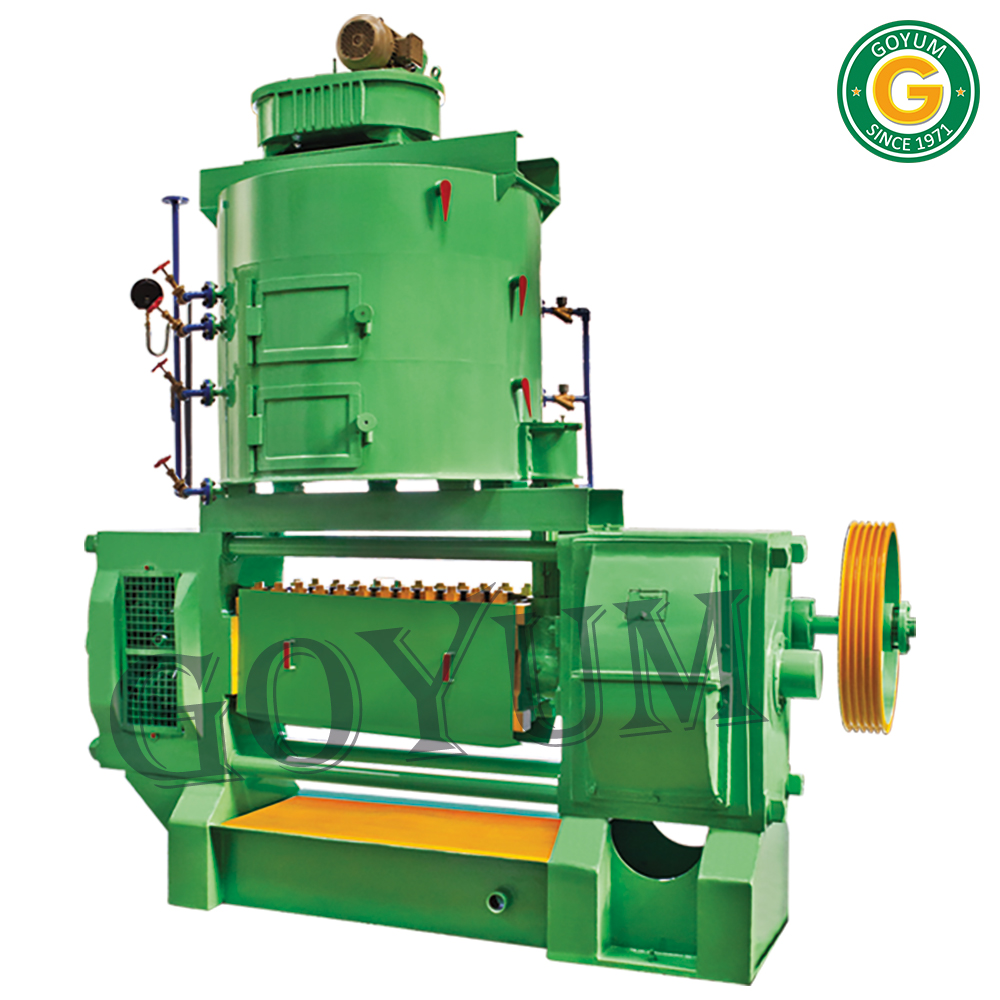

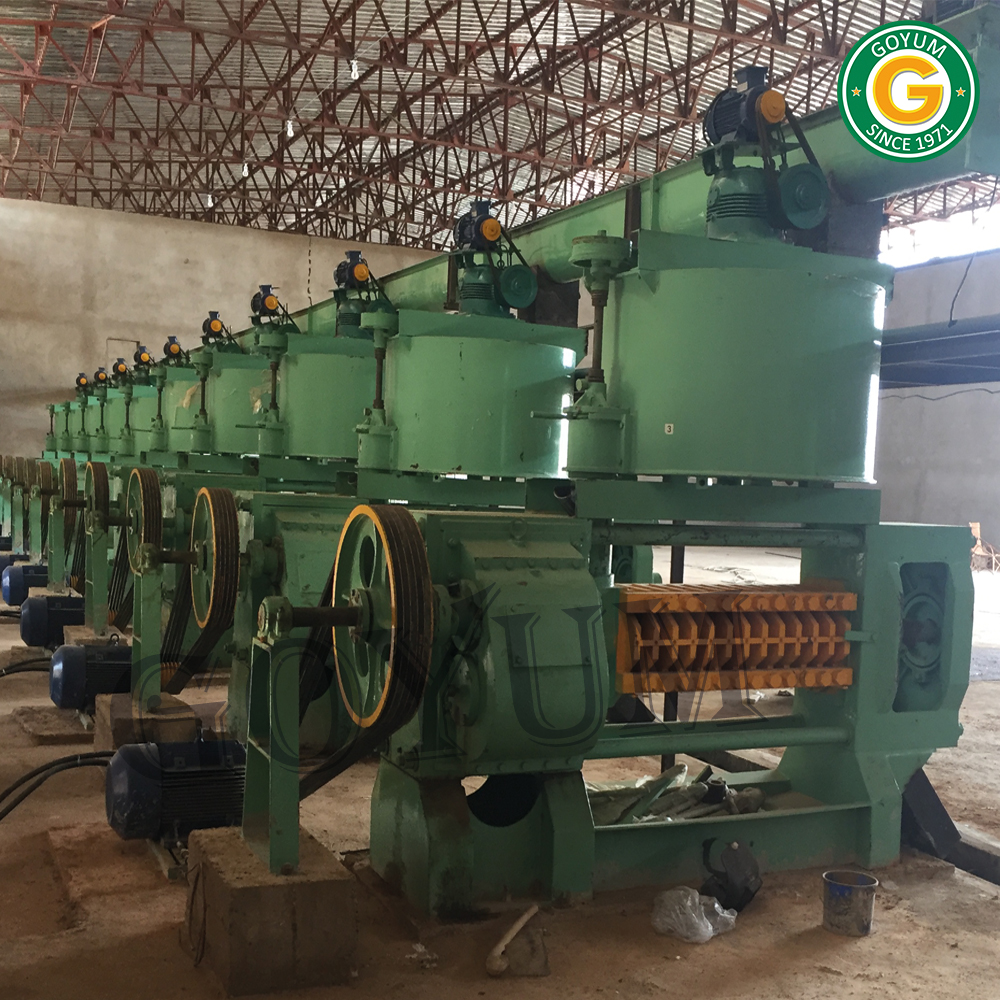

Industrial Edible Oil Crushing Machineis used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.
This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.
Features:
|
Bodies and Base |
Fabricated from Mild steel |
|
Gearbox |
Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel |
|
Chamber |
Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long |
|
Worm Assembly |
Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber |
|
Main Worm Shaft |
Can be withdrawn out without Disturbing the Gear Box. |
|
Round Kettle |
3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) |
|
Cake Thickness |
Can be Adjusted on Running Machine. |
|
Crammer Shaft |
For extra Cramming of the Seed or Cake in the Feed Body. |
|
Oil & Oil Cake |
Superior Quality |
|
Maintenance |
Minimum |
|
Crushing capacity |
Differs with the density of oilseeds & nuts and quantity of oil in it. |
Price 2975000.0 INR/ Piece
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 170 Pieces Per Year
- Delivery Time
- 20 Days
