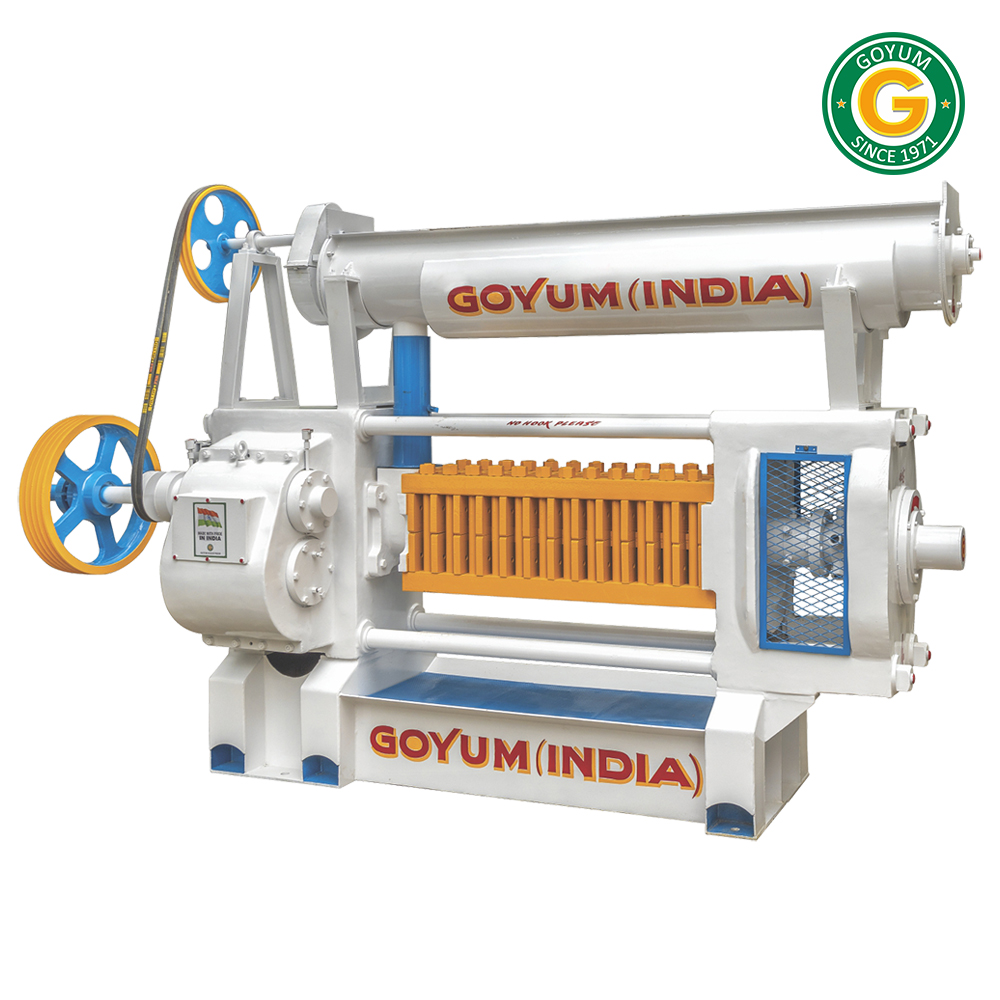

Linseed / Flaxseed Oil Crushing Machine

Linseed / Flaxseed Oil Crushing Machine Specification

Type
Cold & Hot Pressing Machine

Production Capacity
18 - 20 Ton in 24 Hours

Automatic Grade
Semi-Automatic

Voltage
280,380,440 Volt (v)

Power
55 Horsepower (HP)

Weight (kg)
5700 Kilograms (kg)

Dimension (L*W*H)
11.8 x 4.3 x 11.10 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Linseed / Flaxseed Oil Crushing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
300 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Linseed / Flaxseed Oil Crushing Machine

Linseed / FlaxseedOil Crushing Machineis used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: 7 Dia X 44 Dia Long,
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three or Four Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Efficient and Flexible Oil Extraction

Designed to handle both cold and hot pressing, this semi-automatic flaxseed oil machine delivers exceptional versatility for large-scale operations. With a high output rate and rugged build, it meets the rigorous demands of commercial oil production. The machines adaptable voltage input supports implementation in various industrial setups.

User Convenience and Durability

Featuring straightforward semi-automatic controls and sturdy construction, the flaxseed oil crushing machine ensures ease of operation and long-term durability. Its sizable dimensions and weight reflect its industrial-grade capacity, while the one-year warranty provides added assurance. The green finish offers an aesthetically pleasing and easily identifiable look on production floors.

FAQs of Linseed / Flaxseed Oil Crushing Machine:

Q: How does the semi-automatic linseed oil crushing machine operate?

A: This machine functions with a 55 HP motor and offers semi-automatic controls, enabling operators to process linseed or flaxseed with minimal manual intervention. It can execute cold or hot pressing modes, providing flexibility depending on product requirements.

Q: What is the production capacity of this oil crushing machine?

A: The machine is capable of producing between 18 to 20 tons of linseed or flaxseed oil in a 24-hour period, making it ideal for high-volume industrial oil extraction.

Q: When should I choose cold pressing versus hot pressing with this machine?

A: Cold pressing is suitable when retaining natural nutrients and flavor is prioritized, while hot pressing is recommended for maximizing oil yield. This machine conveniently supports both methods, allowing selection based on your production goals.

Q: Where can the linseed/flaxseed oil crushing machine be installed?

A: Given its substantial dimensions and weight, this equipment is best suited for large-scale processing facilities, industrial manufacturing plants, or export-oriented units with the necessary space and infrastructure.

Q: What are the primary benefits of using this flaxseed oil extraction machine?

A: Key benefits include its high production efficiency, the flexibility to switch between cold and hot pressing, robust construction for longevity, and semi-automatic controls that boost productivity while ensuring product consistency.

Q: How does the machine ensure operational safety and reliability?

A: The flaxseed oil machine is engineered with durable materials and comes with a one-year warranty against manufacturing defects, supporting worry-free operation and maintenance within its industrial capacity range.
