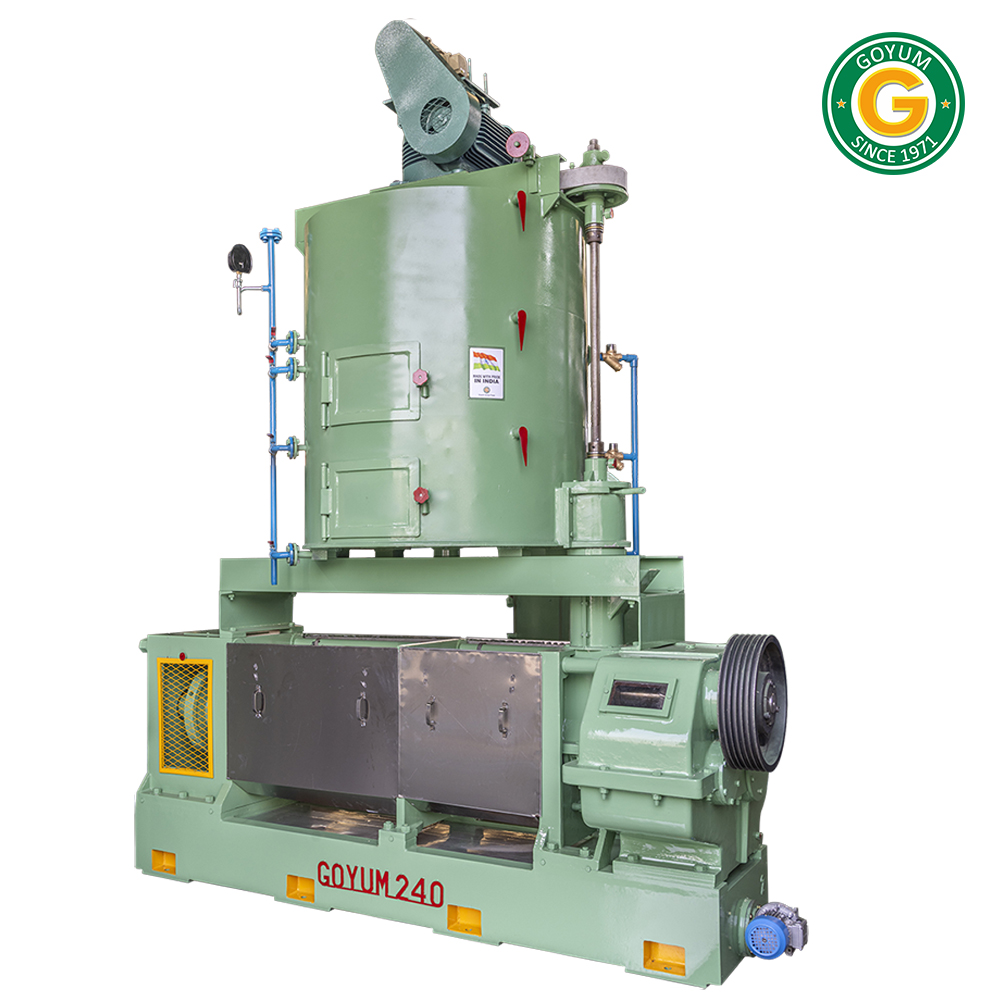

Cashew Nut Shell Liquid / CNSL Screw Oil Press

Bodies and Base

Fabricated from Mild steel

Gearbox

Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.

Chamber

Material: Cast Steel. Vertically fitted

Feed End: - Size: 12" x 36" Long,

Middle: Size: 11" x 36" Long,

Discharge End: - Size: 10" x 36" Long

Worm Assembly

Hard Face welded along with Discharge Ring and Sliding Ring

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

The Shaft is water cooled.

Crammer Shaft

For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor.

Round Kettle (Cooker)

5 Stages with Steam Jackets of 66 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers.

Supported separately on fabricated structure

Cake Thickness

Can be Adjusted on Running Machine.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Chamber Lifting

Manual

Crushing Capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.)
