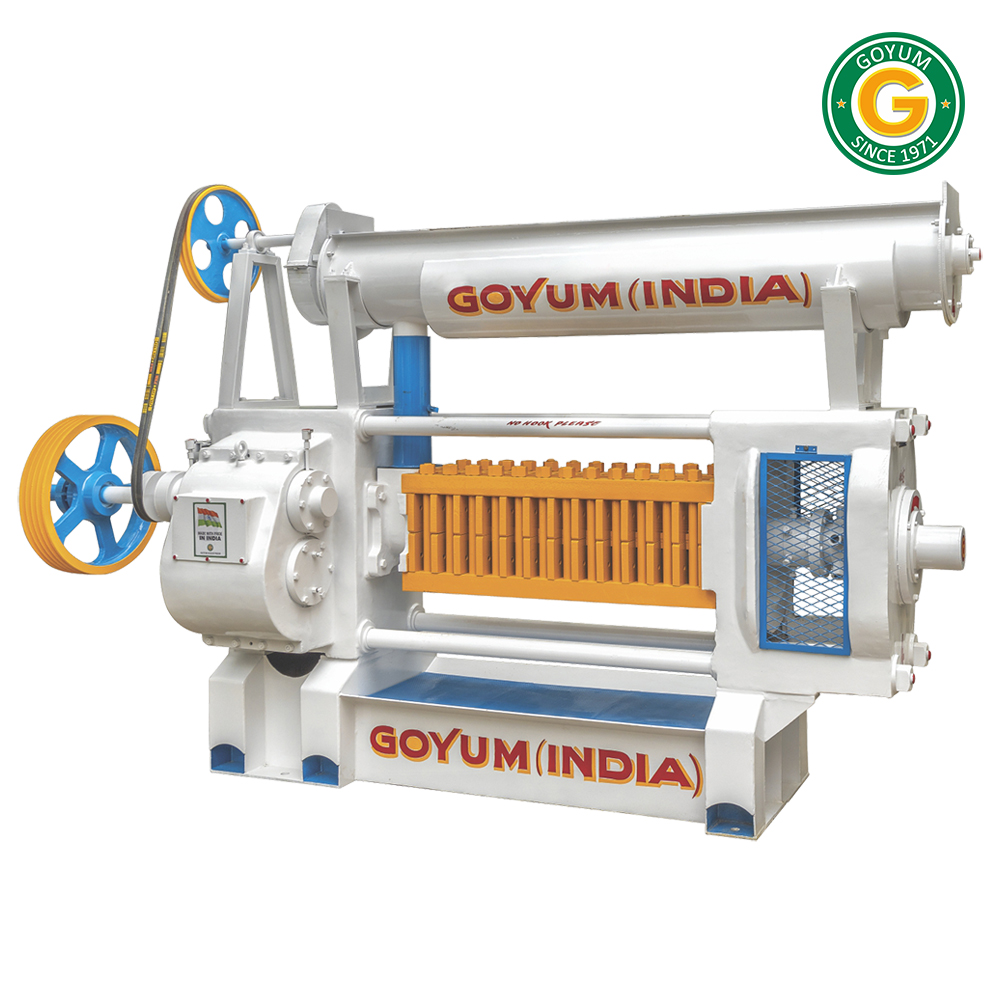

Mustard Seed Oil Crushing Machine

Mustard Seed Oil Crushing Machine Specification

Type
Cold & Hot Pressing Machine

Production Capacity
18 - 20 Ton in 24 Hours

Automatic Grade
Semi-Automatic

Voltage
280,380,440 Volt (v)

Power
55 Horsepower (HP)

Weight (kg)
5700 Kilograms (kg)

Dimension (L*W*H)
11.8 x 4.3 x 11.10 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Mustard Seed Oil Crushing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
300 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Domestic Market
West India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Mustard Seed Oil Crushing Machine

Mustard Seed Oil Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: 7 Dia X 44 Dia Long,
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three or Four Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Superior Oil Extraction Performance

Delivering a remarkable output of up to 20 tons in 24 hours, this mustard seed oil crushing machine is designed for both cold and hot pressing operations. Its sturdy construction and semi-automatic functionality allow for consistent processing of mustard seeds, ensuring maximum yield and purity of oil.

Flexible and User-Friendly Operation

With semi-automatic controls, this machine strikes a balance between manual effort and automated processes, simplifying usage for operators. Its setup is compatible with common industrial voltage requirements, making it easy to integrate into existing processing units in various locations.

Manufacturer-Backed Reliability

Being manufactured, supplied, and exported from India, the machine reflects advanced engineering standards and is supported by a 1-year warranty covering manufacturing defects. Customers can be assured of quality service, spare parts availability, and technical assistance throughout the ownership period.

FAQs of Mustard Seed Oil Crushing Machine:

Q: How does the Mustard Seed Oil Crushing Machine operate for both cold and hot pressing?

A: The machine is engineered to perform both cold and hot pressing of mustard seeds. Cold pressing maintains oil purity without heat, while hot pressing involves mild heating for higher yield. Operators can adjust settings based on the desired oil extraction method easily.

Q: What are the main benefits of using this machine for mustard seed oil extraction?

A: Key benefits include high yield (up to 20 tons in 24 hours), semi-automatic operation for efficiency, robust construction, and the option for cold or hot pressing, ensuring versatile oil quality to meet different requirements. Its high power output and easy maintenance further optimize productivity.

Q: When is the ideal stage to use this machine in the oil production process?

A: This machine is best introduced after thorough cleaning and conditioning of mustard seeds. Once seeds are ready, they can be loaded into the machine for either cold or hot oil extraction, serving as the main processing stage in mustard oil production.

Q: Where can this mustard oil crushing machine be installed for optimal performance?

A: Given its size and weight (11.8 x 4.3 x 11.10 ft, 5700 kg), it is suitable for installation in medium to large-scale industrial processing units, oil mills, or export-oriented manufacturing plants. Ensure a solid, level foundation and adequate ventilation around the workspace.

Q: What is the typical process flow when using this machine?

A: First, cleaned and prepared mustard seeds are fed into the hopper. The machine, set for cold or hot pressing, automatically crushes and processes the seeds to extract oil, which is collected at the outlet, while by-products like oil cake are discharged separately.

Q: How can users ensure optimal usage and maintenance of the machine?

A: Operators should perform regular inspections, clean internal components to prevent residue buildup, and check for wear and tear. Follow the manufacturers guidelines for servicing and use only compatible parts and lubricants to maintain efficiency and prolong machine lifespan.

Q: What warranty and support are provided with this oil crushing machine?

A: The machine carries a 1-year warranty covering manufacturing defects. In addition, buyers can access support, technical assistance, and genuine spare parts from the exporter, manufacturer, or supplier based in India.
