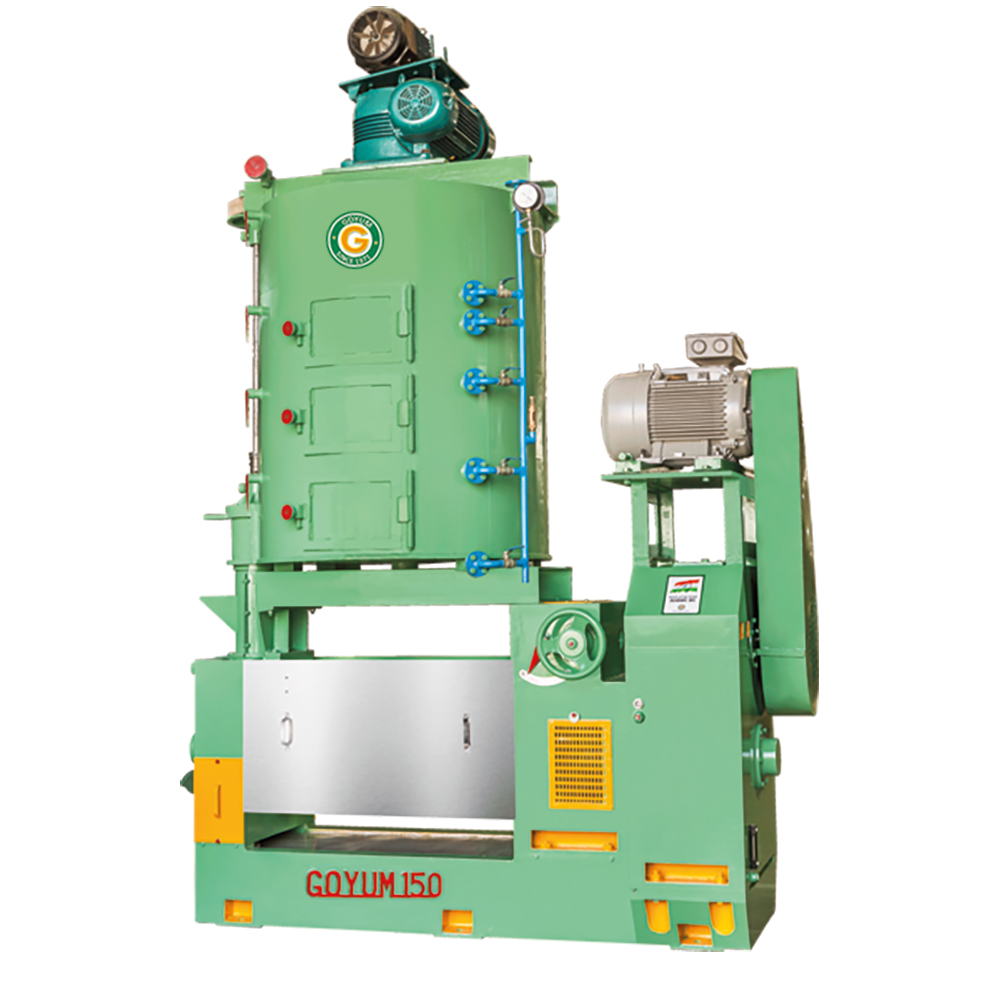

Medium Size Multi Oilseed Expeller Machine

Medium Size Multi Oilseed Expeller Machine Specification

Material
Mild Steel , Cast Steel

Production Capacity
15-17 Ton/day

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Other

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Power
45 Horsepower (HP)

Weight (kg)
4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle) Kilograms (kg)

Dimension (L*W*H)
8.6 x 4.7 x 13 Foot (ft)

Color
Green

Warranty
1 year against manufacturing defects

Medium Size Multi Oilseed Expeller Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai / Mundra

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
300 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
Africa, Western Europe, Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

Medium Size Multi Oilseed Expeller Machine About

Medium Size Multi Oilseed Expeller Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber	Steel Casting of Four Sections. Horizontally fitted Size: 7.5 Dia X 6.5 Dia X 45 Dia Long.
Worm Assembly	Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Superior Oil Extraction Capacity

Achieve optimal oilseed processing with a high-capacity expeller capable of producing 15-17 tons daily. Suitable for a wide range of oilseeds, the machine's sturdy construction ensures reliable performance for heavy-duty industrial requirements. The multi-stage kettle options allow users to choose the configuration that best fits their workflow and production scale.

Durable Construction and Versatile Voltage Options

Manufactured from premium mild and cast steel and coated in a resilient green finish, this expeller withstands demanding environments. Compatible with a range of voltages-220V, 280V, 380V, 400V, and 415V-this machine is adaptable to varied setups, making it ideal for exporters and manufacturers across India and beyond.

FAQ's of Medium Size Multi Oilseed Expeller Machine:

Q: How is the Medium Size Multi Oilseed Expeller Machine operated and does it require computerization?

A: The expeller operates in a semi-automatic mode and does not require computerization. Basic training for operators is recommended to ensure safety and efficiency during oil extraction processes.

Q: What kinds of oilseeds can be processed with this machine?

A: This expeller is designed for versatility, efficiently extracting oil from a wide range of oilseeds such as sunflower, mustard, soybean, groundnut, and more. The robust design supports continuous, high-volume production.

Q: When should routine maintenance be performed on the expeller, and what does it involve?

A: Routine maintenance should be scheduled every few weeks or after processing significant quantities, as outlined in the manufacturer's manual. This generally includes checking for wear, lubricating moving parts, and inspecting kettles.

Q: Where is the machine manufactured and who can supply it?

A: The expeller machine is manufactured, supplied, and exported by a company based in India, catering to industrial clients domestically and internationally.

Q: What is the process for extracting oil using this expeller?

A: Seeds are fed into the expeller, where they undergo continuous pressing in the multi-stage kettle system. Mechanical force extracts the oil, which is then collected, while the residue is efficiently separated.

Q: How does the warranty benefit buyers?

A: Each machine includes a 1-year warranty against manufacturing defects, offering buyers peace of mind and support in case of issues related to workmanship or materials.
