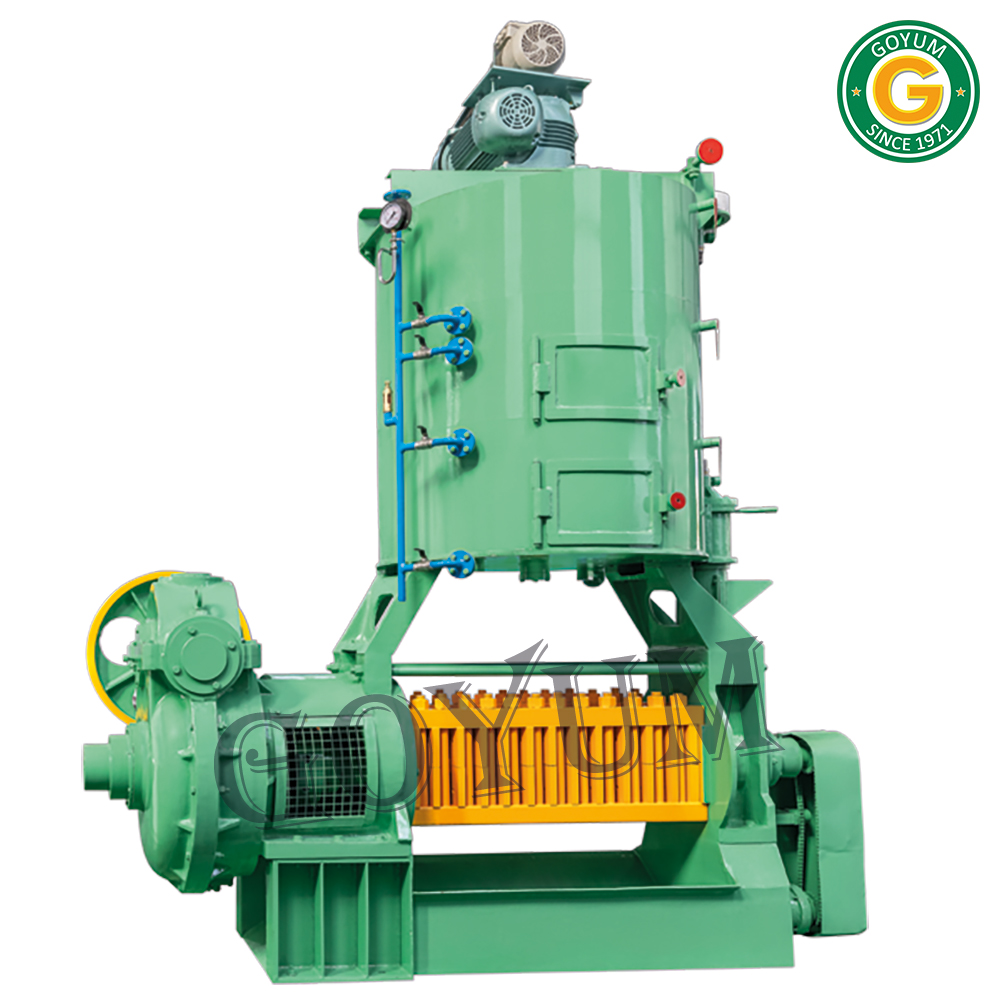

Karanja Seed Oil Expeller Machine

Karanja Seed Oil Expeller Machine Specification

Material
Cast iron , Mild steel

Production Capacity
12 - 15 Ton/day

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Other

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Power
55 Horsepower (HP)

Weight (kg)
4500 Kilograms (kg)

Dimension (L*W*H)
8.8 x 4.6 x 9 Foot (ft)

Color
Green

Warranty
1 year against manufacturing defects

Karanja Seed Oil Expeller Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mumbai / Mundra

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
150 Units Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
Australia, Africa, Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Karanja Seed Oil Expeller Machine

Karanja Seed Oil Expeller Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: 6.1/2" X 36 Dia Long, 7 Dia X 44 Dia Long, 6-1/2 Dia X 07-1/2 Dia X 45 Dia Long.
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and

High-Performance Oil Extraction

Engineered for continuous operation, this expeller efficiently processes Karanja seeds, yielding optimal oil output. Its semi-automatic mechanism balances ease of use and production speed, delivering 12 to 15 tons of oil per day. Built with high-grade cast iron and mild steel, the machine withstands rigorous industrial demands, ensuring reliability for bulk processing.

Built for Industrial Durability

The robust design, weighing 4500 kg and finished in green, ensures stable performance even in challenging environments. Its components are crafted from durable materials to prolong lifespan and reduce maintenance. Multiple voltage compatibility (220V to 415V) allows flexible installation across various industrial sites.

User-Oriented Design and Warranty

With a focus on user convenience and safety, this expeller features semi-automatic controls suitable for operators of different skill levels. Its warranty of one year against manufacturing defects offers peace of mind, ensuring that operational issues are promptly addressed.

FAQ's of Karanja Seed Oil Expeller Machine:

Q: How does the Karanja Seed Oil Expeller Machine operate?

A: The machine uses a semi-automatic mechanism: Karanja seeds are fed into the expeller, where mechanical pressing extracts the oil. Controlled by user-friendly functions, it requires minimal manual intervention, ensuring efficient and continuous operation.

Q: What materials are used in the construction of this expeller machine?

A: The expeller is predominantly built from cast iron and mild steel. These materials are chosen for their strength and resilience, making the machine robust enough to handle high-capacity oil extraction and frequent use in industrial environments.

Q: When should routine maintenance be performed on the machine?

A: Routine maintenance, such as cleaning, lubrication, and inspection of moving parts, is recommended after each production cycle or at least weekly to ensure consistent performance and prevent wear-related issues.

Q: Where is this machine suitable for installation?

A: The expeller is ideal for installation in large-scale oil extraction plants, industrial facilities, and processing units in India and abroad. Its adaptable voltage compatibility and heavy-duty build fit various operational settings.

Q: What is the oil extraction process using this expeller?

A: The process involves feeding cleaned and prepared Karanja seeds into the expeller's hopper. The seeds are pressed by mechanical force, separating oil from the seed cake through continuous compression and filtration.

Q: How does using this machine benefit my production line?

A: This expeller boosts productivity, offering a high daily throughput (12-15 tons) while minimizing labor costs with its semi-automatic operation. Its sturdy build minimizes downtime, and the 1-year warranty reduces operational risk.
