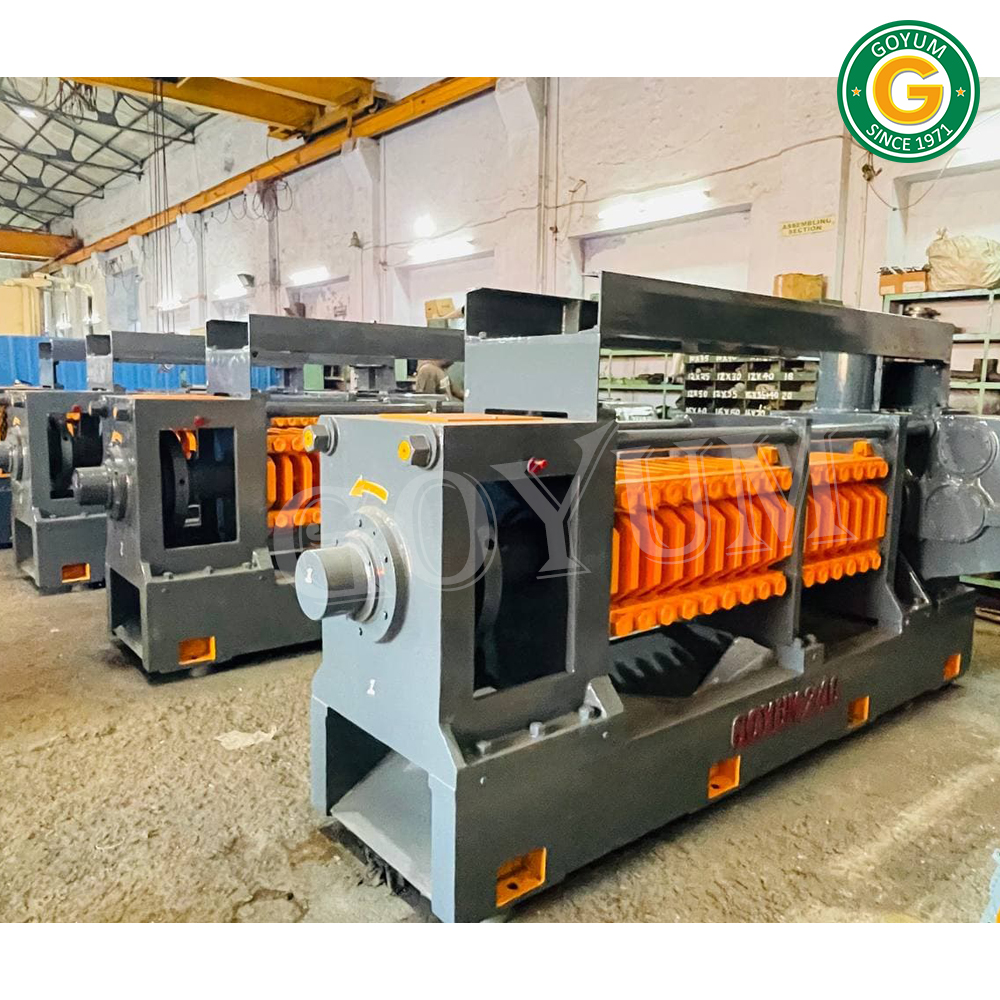

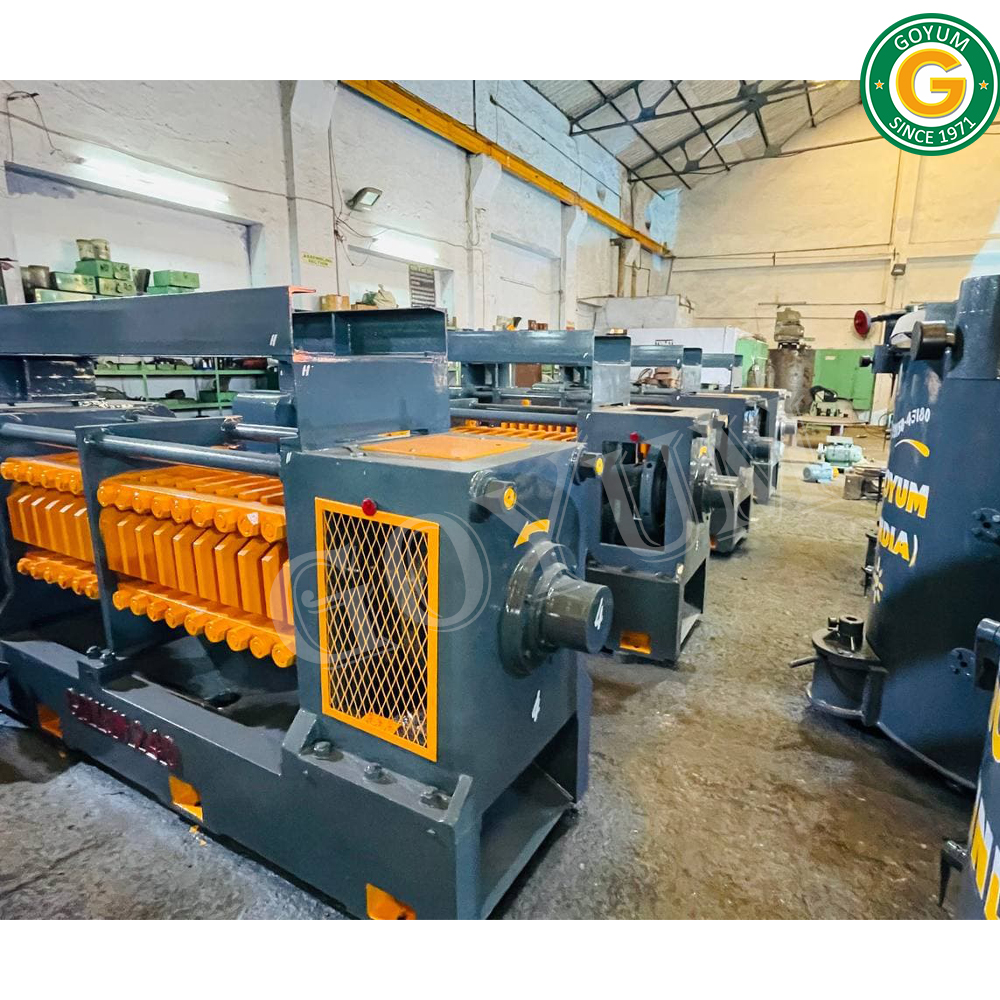

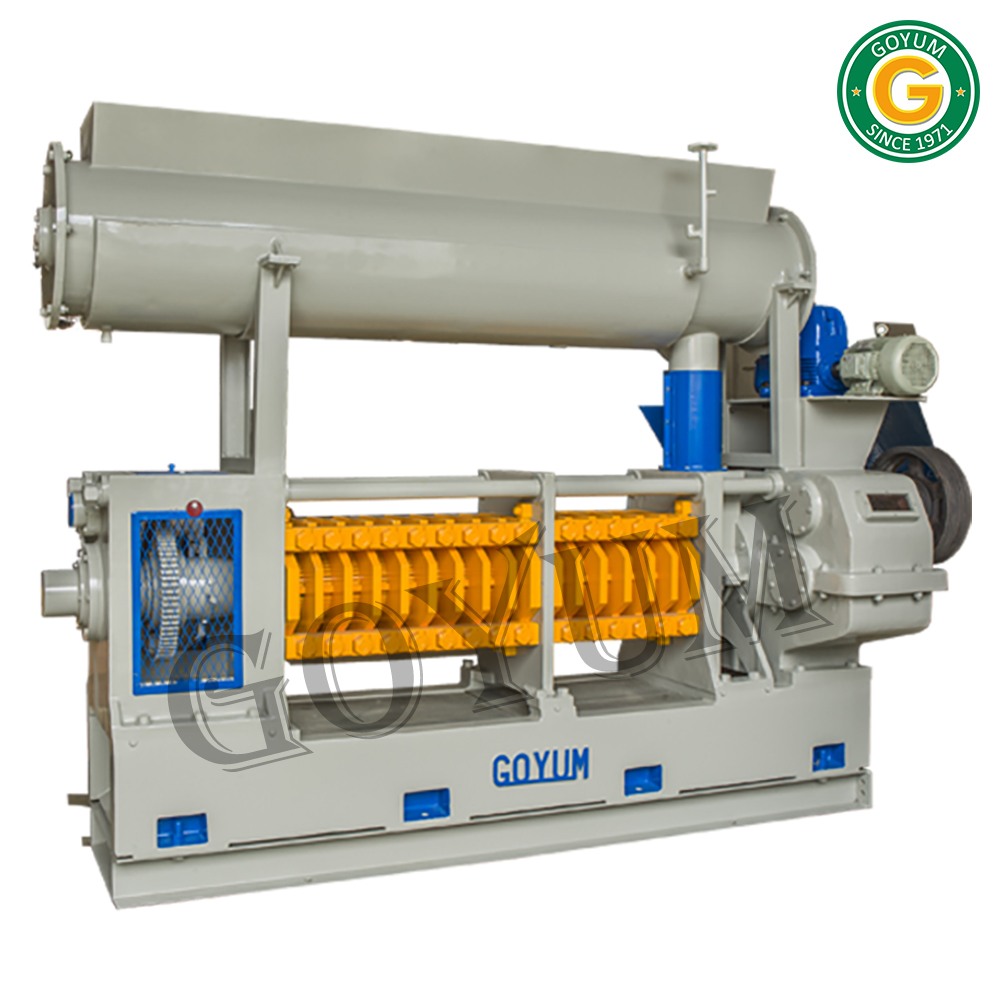

Cottonseed Screw Oil Press

Cottonseed Screw Oil Press Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Voltage
280,380,440 Volt (v)

Power Consumption
80 Horsepower (HP)

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Cottonseed Screw Oil Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Cottonseed Screw Oil Press

Cottonseed Screw Oil Press is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

High-Efficiency Oil Extraction

This screw oil press integrates advanced semi-automatic technology, enabling high-yield extraction of cottonseed oil. Its 80 HP motor and large build deliver consistent performance in demanding production environments, making it an excellent investment for manufacturers wishing to enhance their output.

Durability and Quality Assurance

Crafted with precision and sturdy materials, this machine features a green-coated body and comes with a 1-year warranty against manufacturing defects. Users can depend on its solid construction and manufacturer-backed support for long-term, hassle-free operation.

FAQs of Cottonseed Screw Oil Press:

Q: How does the Cottonseed Screw Oil Press function?

A: This machine uses a semi-automatic screw mechanism to crush and press cottonseeds, efficiently extracting oil through continuous and mechanical movement, ensuring optimal yield.

Q: What are the main benefits of using this oil press?

A: The press offers high extraction rates, energy efficiency with its 80 HP capacity, durability with a green-coated body, and reliability backed by a one-year warranty, making it ideal for industrial-scale operations.

Q: When does the warranty for the Cottonseed Screw Oil Press apply?

A: The one-year warranty is valid from the date of purchase and covers manufacturing defects only, ensuring peace of mind and support in the event of any production-related issues.

Q: Where is the Cottonseed Screw Oil Press manufactured and supplied from?

A: This oil press is manufactured, exported, and supplied by a reputable company based in India, catering to both domestic and international clients.

Q: What is the process for using the screw oil press?

A: To use, load cottonseeds into the input chamber, activate the semi-automatic system, and the screw mechanism processes the seeds, extracting oil which can be collected from the designated outlet.

Q: How much space does the machine require for installation?

A: With dimensions of 10.2 x 4.1 x 7.7 feet, ample floor space and proper electrical connections (280V, 380V, or 440V) are required to install and operate the oil press safely.

Q: For what types of settings is this oil press best suited?

A: This machine is ideal for medium to large-scale industrial or agricultural settings such as processing plants, where reliable and consistent cottonseed oil extraction is required.
