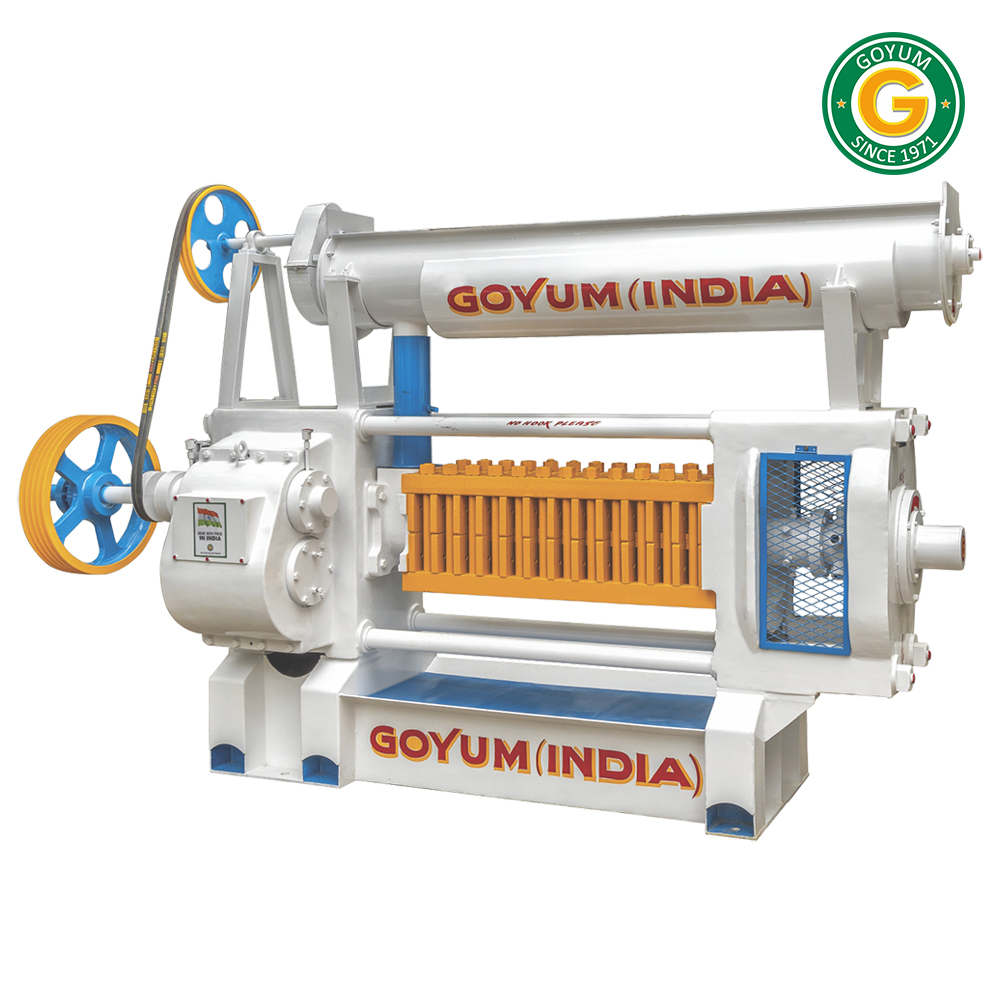

Cottonseed Oil Crushing Machine

Cottonseed Oil Crushing Machine Specification

Type
Cold & Hot Pressing Machine

Production Capacity
18 - 20 Ton in 24 Hours Ton/day

Computerized
No

Automatic Grade
Semi-Automatic

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Power
55 Horsepower (HP)

Weight (kg)
5700 Kilograms (kg)

Dimension (L*W*H)
11.8 x 4.3 x 11.10 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Cottonseed Oil Crushing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai / Mundra

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T)

Supply Ability
300 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
Africa, Eastern Europe, Australia, Central America, South America, Asia, North America, Middle East, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Cottonseed Oil Crushing Machine

Cottonseed Oil Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

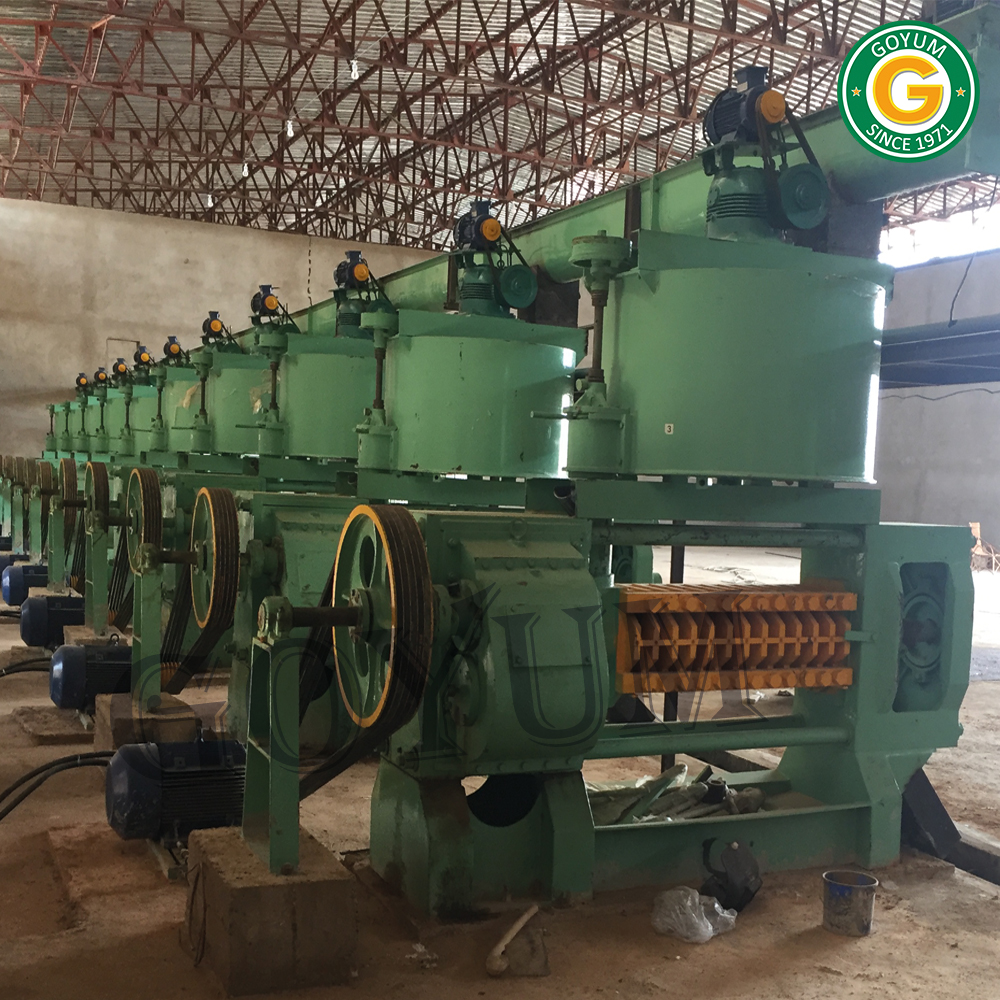

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: 7 Dia X 44 Dia Long,
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three or Four Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Robust Build and High Efficiency

Engineered for durability and performance, this cottonseed oil crushing machine stands out with its heavy-duty construction and impressive capacity. Able to process up to 20 tons of cottonseed in a single day, its an excellent fit for businesses aiming to maximize output with minimal maintenance. The green finish ensures excellent corrosion resistance, extending the machines operational life.

Adaptable Pressing Modes for Versatility

With the ability to handle both cold and hot pressing, this machine adapts to various production requirements. Cold pressing preserves natural nutrients, while hot pressing increases oil yield. This versatility makes it suitable for different processing demands, allowing users to switch modes according to their market needs.

FAQs of Cottonseed Oil Crushing Machine:

Q: How is the Cottonseed Oil Crushing Machine operated for optimal production?

A: The machine is semi-automatic, requiring manual setup and monitoring. Operators load cottonseeds into the feed, select the pressing mode (cold or hot), and then monitor the process to achieve a production rate of up to 18-20 tons in 24 hours. Regular inspections during operation help maintain efficiency and quality.

Q: What are the primary benefits of using both cold and hot pressing modes?

A: Cold pressing retains more natural nutrients in the oil, producing higher-quality, minimally processed oil. Hot pressing, on the other hand, increases oil extraction yield. The ability to switch between these modes allows for flexibility depending on oil quality or quantity requirements.

Q: When should the machine undergo regular maintenance?

A: Routine maintenance should be conducted after every major production cycle or as specified in the machines maintenance guide. This includes cleaning, lubrication, and inspecting for potential wear; timely maintenance maximizes the lifespan of the device and ensures consistent output.

Q: Where is this machine typically used and supplied from?

A: This cottonseed oil crushing machine is manufactured, exported, and supplied from India. It is commonly used in oil mills, agro-processing industries, and commercial oil production plants worldwide.

Q: What is the process for pressing cottonseed oil with this machine?

A: The process begins by loading cleaned cottonseeds into the hopper. The seeds are then pressed using either cold or hot processing to extract the oil, which is collected while the residual cake is expelled separately. Operators oversee the process for optimal oil yield and machine safety.

Q: How does the warranty coverage work for this machine?

A: A 1-year warranty covers manufacturing defects, providing repair or replacement of faulty components. Users are recommended to keep maintenance records and report any issues promptly to the supplier for warranty claims.
