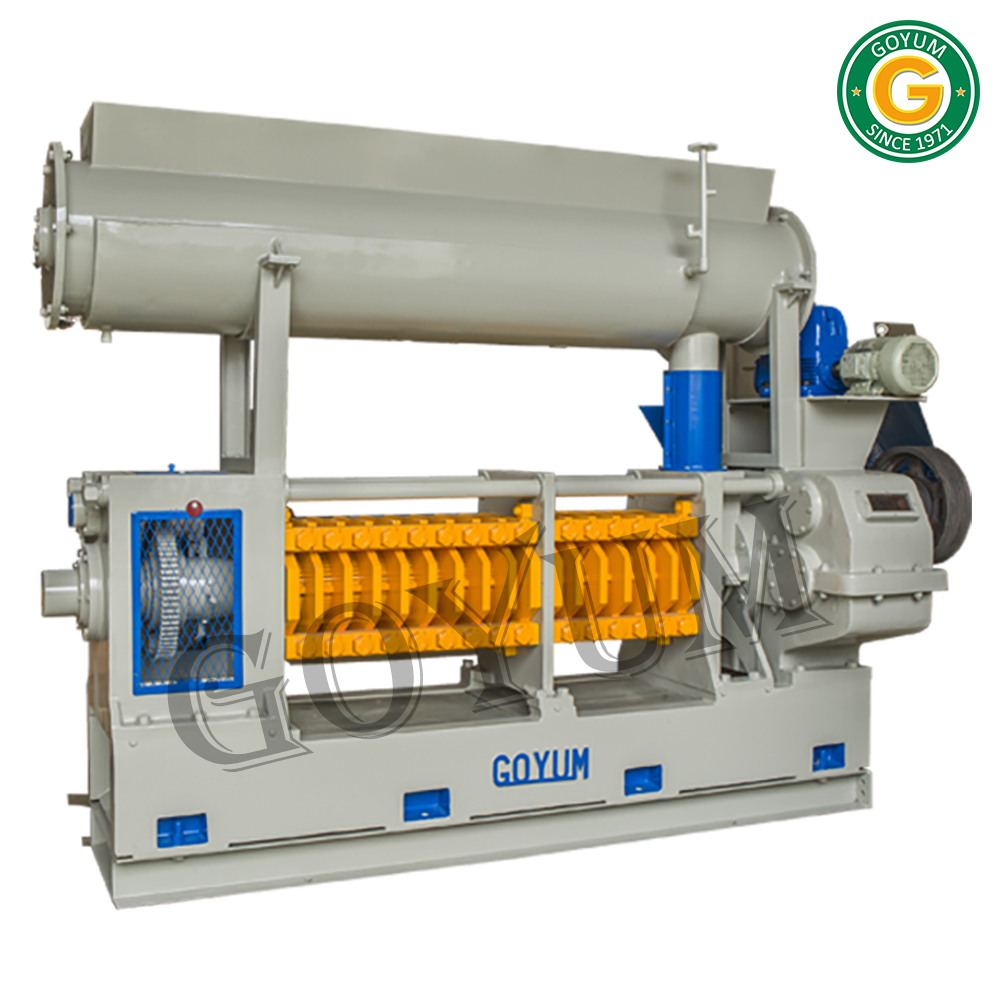

Commercial Oil Extraction Machine

Commercial Oil Extraction Machine Specification

Product Type
Cold & Hot Pressing Machine

Technology
Semi Automatic

Voltage
280,380,440 Volt (v)

Extraction Type
Both

Dimension (L*W*H)
10.2 x 4.1 x 7.7

Weight
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Warranty
1 year warranty against manufacturing defect.

Commercial Oil Extraction Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Commercial Oil Extraction Machine

Commercial Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Efficient and Versatile Extraction

This semi-automatic oil extraction machine supports both mechanical and chemical extraction methods, making it suitable for a range of oilseed varieties. Its high-capacity design enables continuous processing, ideal for commercial operations looking to maximize output without compromising quality.

Rugged Construction for Industry Demands

Engineered for durability, the machine comes in two heavy-duty variants, capable of handling large quantities. Its robust construction ensures long-lasting reliability while the advanced kettle options deliver flexibility for different processing needs, making it perfect for Indian manufacturing environments.

FAQs of Commercial Oil Extraction Machine:

Q: How does the semi-automatic commercial oil extraction machine operate?

A: The machine utilizes semi-automatic technology, allowing operators to efficiently process oilseeds with minimal manual intervention. It supports both mechanical and solvent extraction techniques as needed for various oils.

Q: What types of oil extraction can this machine perform?

A: This model is designed for both mechanical pressing and chemical extraction, providing flexibility for different raw materials and production methods.

Q: When should the machine be serviced for optimal performance?

A: Regular maintenance is recommended every 36 months, depending on usage volume. The one-year warranty covers any manufacturing defects during this period.

Q: Where can the Commercial Oil Extraction Machine be installed?

A: Due to its size and weight (52006500 kg), it is best suited for industrial settings such as factories or dedicated production facilities, particularly in India, where it is manufactured and supported.

Q: What is the process for extracting oil using this machine?

A: Operators load the desired oilseed into the long or three-stage kettle, set the required parameters, and initiate the semi-automatic cycle. The machine then extracts oil using the selected method, ensuring high yield and efficiency.

Q: How should the machine be used to maximize benefits?

A: To achieve optimal results, ensure proper installation, follow recommended operating instructions, perform routine cleaning, and schedule regular maintenance. Utilizing the appropriate extraction type for each batch also enhances efficiency.

Q: What are the main benefits of using this oil extraction machine?

A: Businesses gain increased productivity, operational flexibility, and consistent oil quality. The sturdy design and warranty provide reliability, while its compatibility with multiple voltages makes it suitable for diverse industrial power setups.
