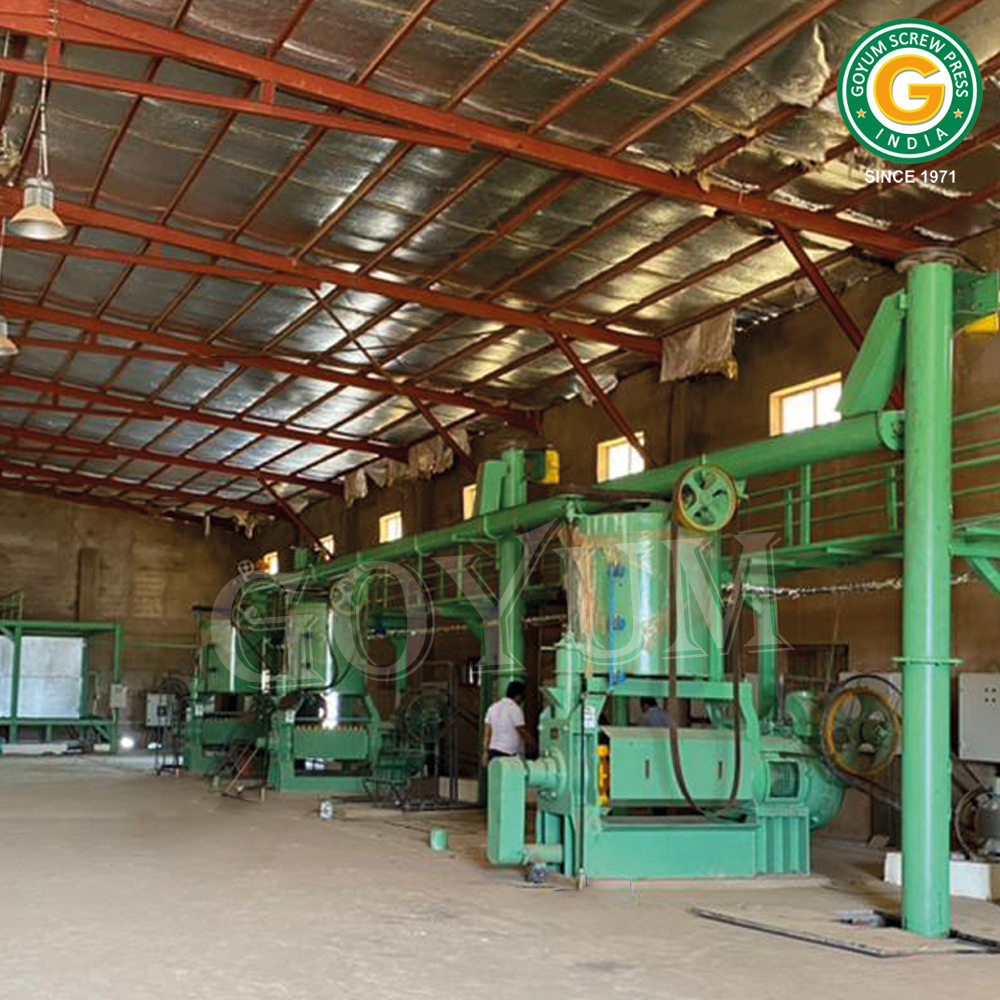

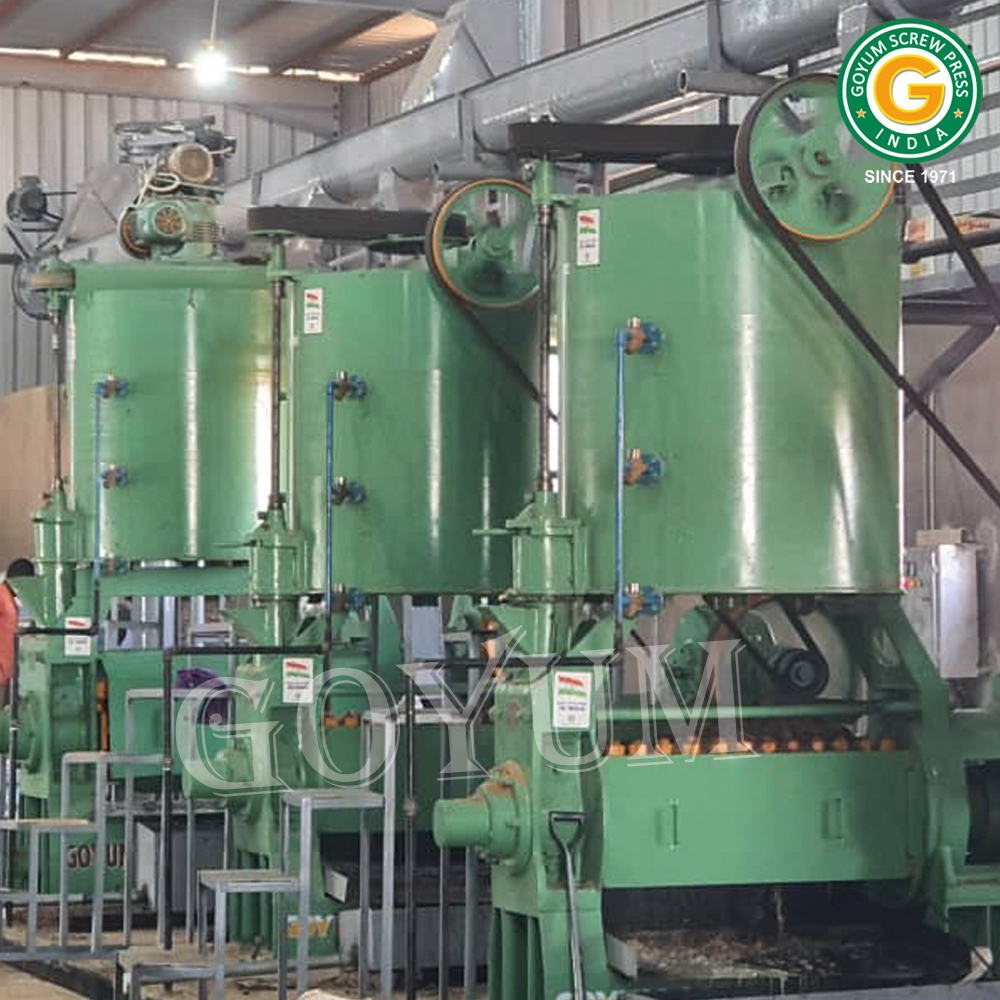

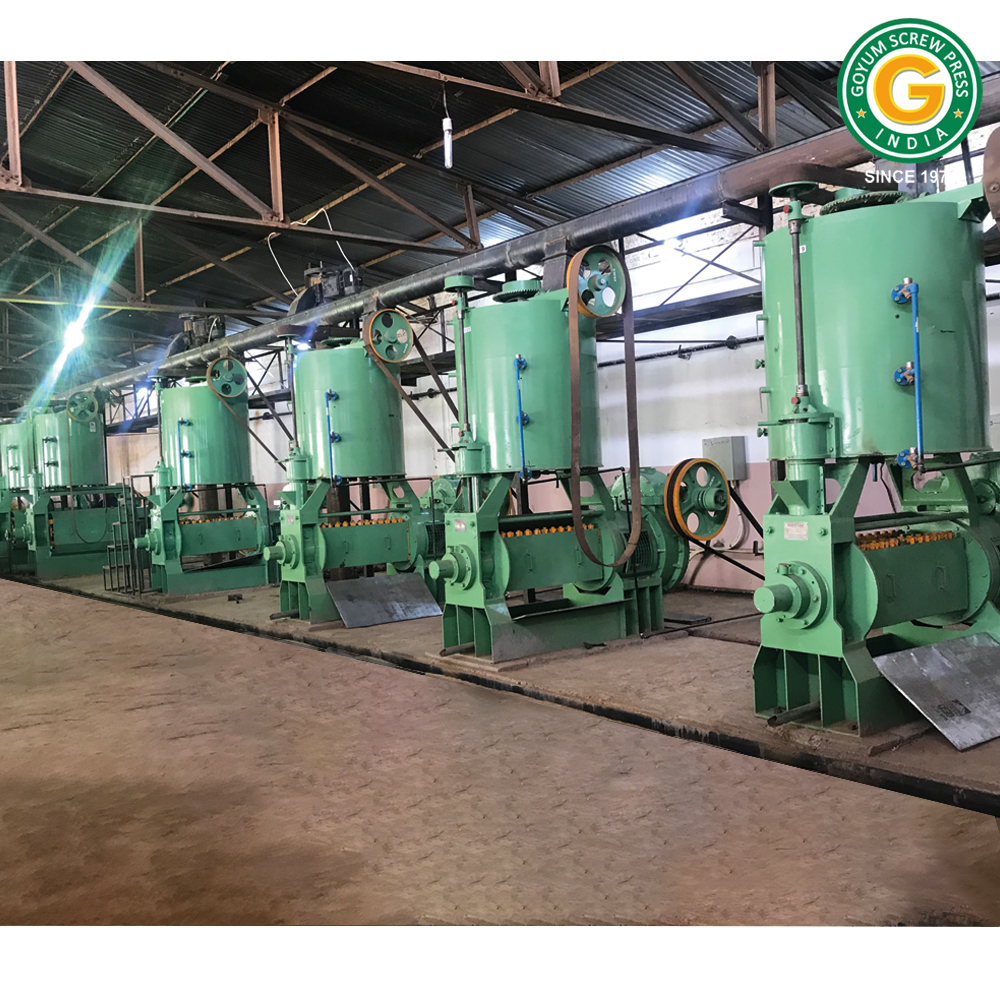

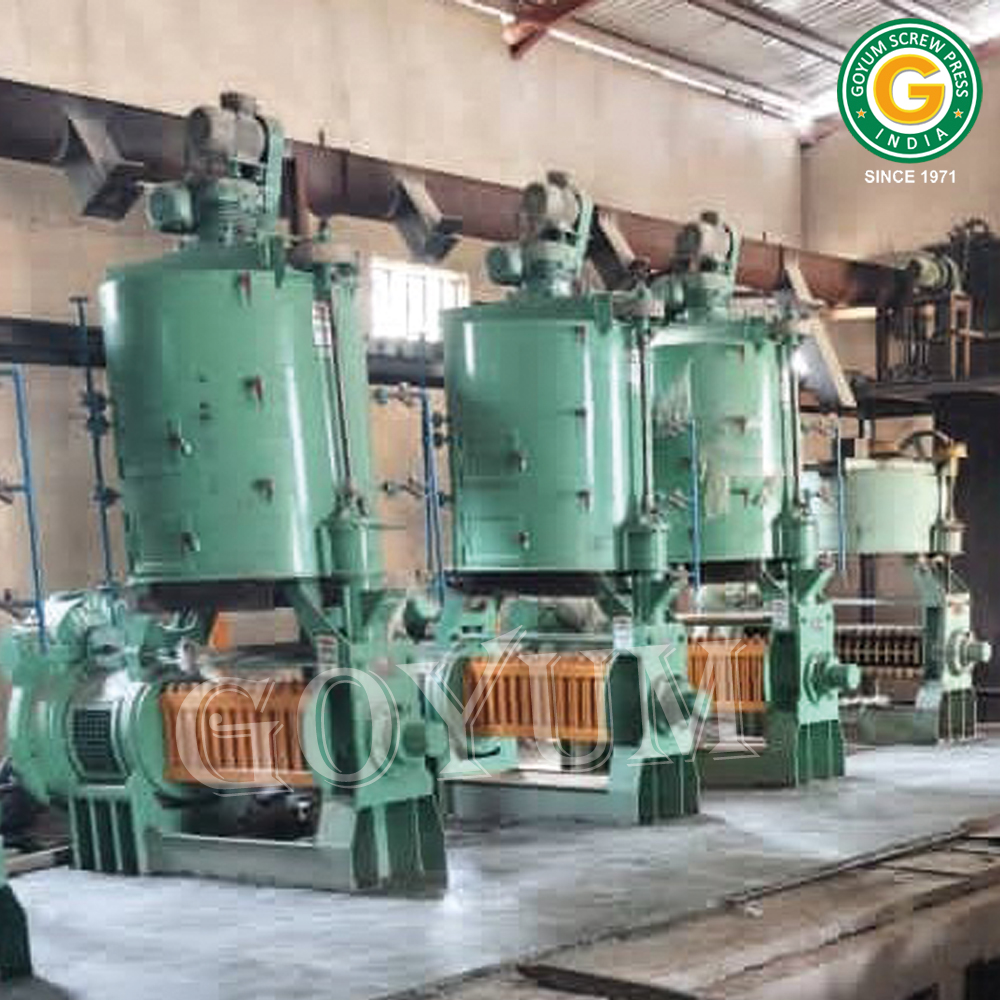

Castor Seed Oil Production Machine

Castor Seed Oil Production Machine Specification

Production Capacity
12 - 15 Ton in 24 Hours Ton/day

Computerized
No

Automatic Grade
Semi-Automatic

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Power
55 Horsepower (HP)

Weight (kg)
4500 Kilograms (kg)

Dimension (L*W*H)
8.8 x 4.6 x 9 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Castor Seed Oil Production Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai / Mundra

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T)

Supply Ability
300 Pieces Per Year

Delivery Time
25 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

Castor Seed Oil Production Machine About

Castor Seed Oil Production Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

Features:

Bodies	Material: Cast Iron
Gearbox	Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
Chamber	Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted. Three different Sizes: 6.1/2" X 36 Dia Long, 7 Dia X 44 Dia Long, 6-1/2 Dia X 07-1/2 Dia X 45 Dia Long.
Worm Assembly	Case Hardened with Cone Point
Main Worm Shaft	Can be drawn out without disturbing the Gearbox.
Cake Thickness	The Machine needs to be stopped for adjusting the Cake Thickness.
Kettle	Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories
Crammer Shaft	For Extra Cramming of the seed or cake in the feed body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

High-Capacity Oil Extraction

This semi-automatic castor seed oil production machine is engineered for high-output efficiency, offering a remarkable capacity of 12 to 15 tons per 24 hours. Its sturdy build, accommodating various voltage requirements, makes it adaptable for wide-scale industrial use.

Durable Construction and Easy Maintenance

Manufactured with premium materials and painted in green, the machine is built to withstand rigorous usage. The absence of computerized parts results in straightforward operation and simpler maintenance, ensuring lasting performance.

Flexible Applications Across Industries

As a trusted choice for exporters, manufacturers, and suppliers, this machine addresses diverse industrial needs. Designed in India, it's structured for local conditions and meets the requirements of both small and large-scale castor oil producers.

FAQ's of Castor Seed Oil Production Machine:

Q: How does the castor seed oil production machine operate?

A: This machine operates on a semi-automatic basis, requiring manual input for certain tasks, while automated mechanisms handle the primary oil extraction process. It uses a powerful 55 HP motor and is compatible with multiple voltage ranges, ensuring adaptability in different factory settings.

Q: What is the step-by-step process for extracting oil using this machine?

A: The process starts with loading cleaned castor seeds into the machine. The seeds are then pressed under controlled pressure to extract the oil, while waste material is separated. The extracted oil can be collected and further processed as needed.

Q: When is this machine most beneficial for use?

A: This machine is most beneficial when consistent, large-scale production is required. It is ideal for commercial entities aiming to produce between 12 and 15 tons of castor oil daily, such as exporters and industrial suppliers.

Q: Where can this castor seed oil production machine be installed?

A: Thanks to its moderate dimensions and robust design, the machine can be installed in most industrial environments or oil processing plants throughout India. It requires an appropriate power connection and sufficient floor space for optimal operation.

Q: What are the primary benefits of using this castor seed oil production machine?

A: Key benefits include high productivity, sturdy construction, adaptability to various voltages, and reduced maintenance due to the non-computerized system. The included 1-year warranty adds a level of assurance against manufacturing defects.

Q: How do you maintain and service the machine?

A: Regular maintenance involves cleaning the pressing components, checking motor operation, and monitoring for wear and tear on mechanical parts. As the unit is not computerized, servicing is straightforward and involves routine mechanical inspections.

Q: What warranty coverage does the machine provide?

A: The machine comes with a 1-year warranty that covers defects arising from manufacturing. This policy ensures support for spare parts and technical service within the warranty period.
