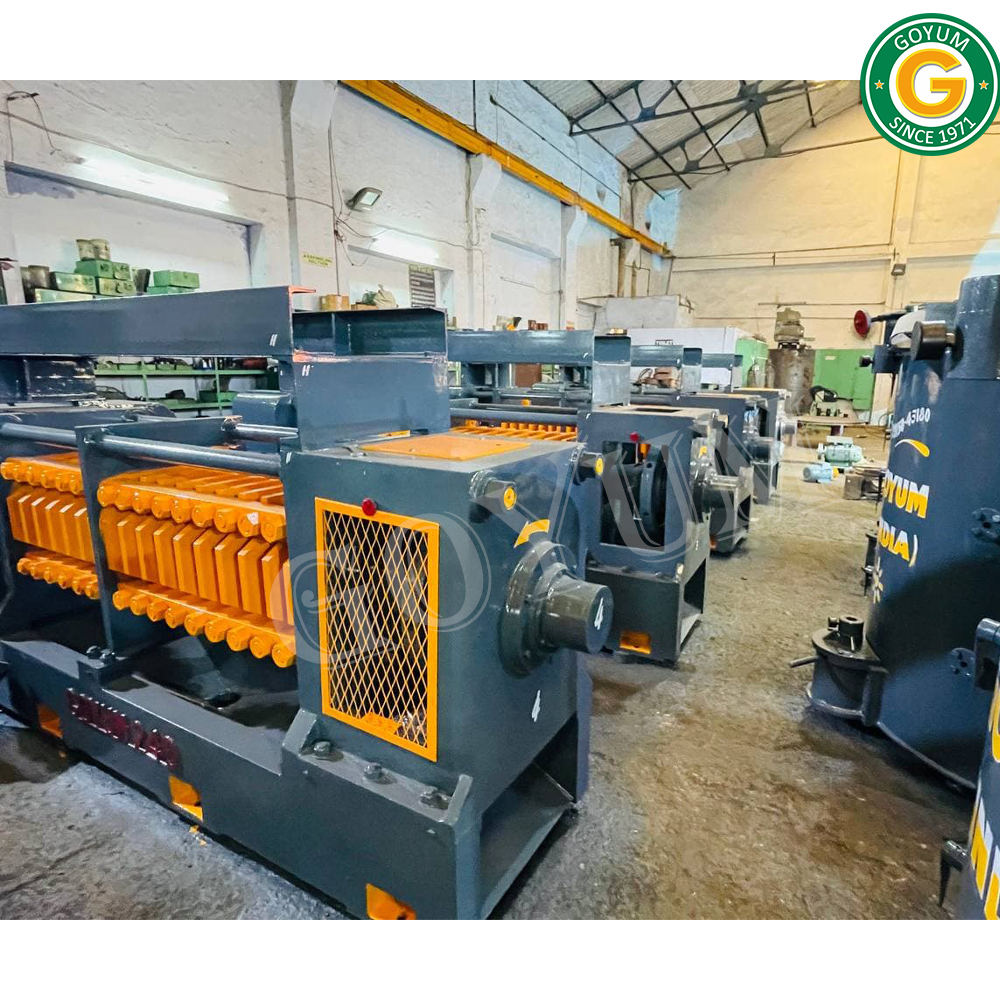

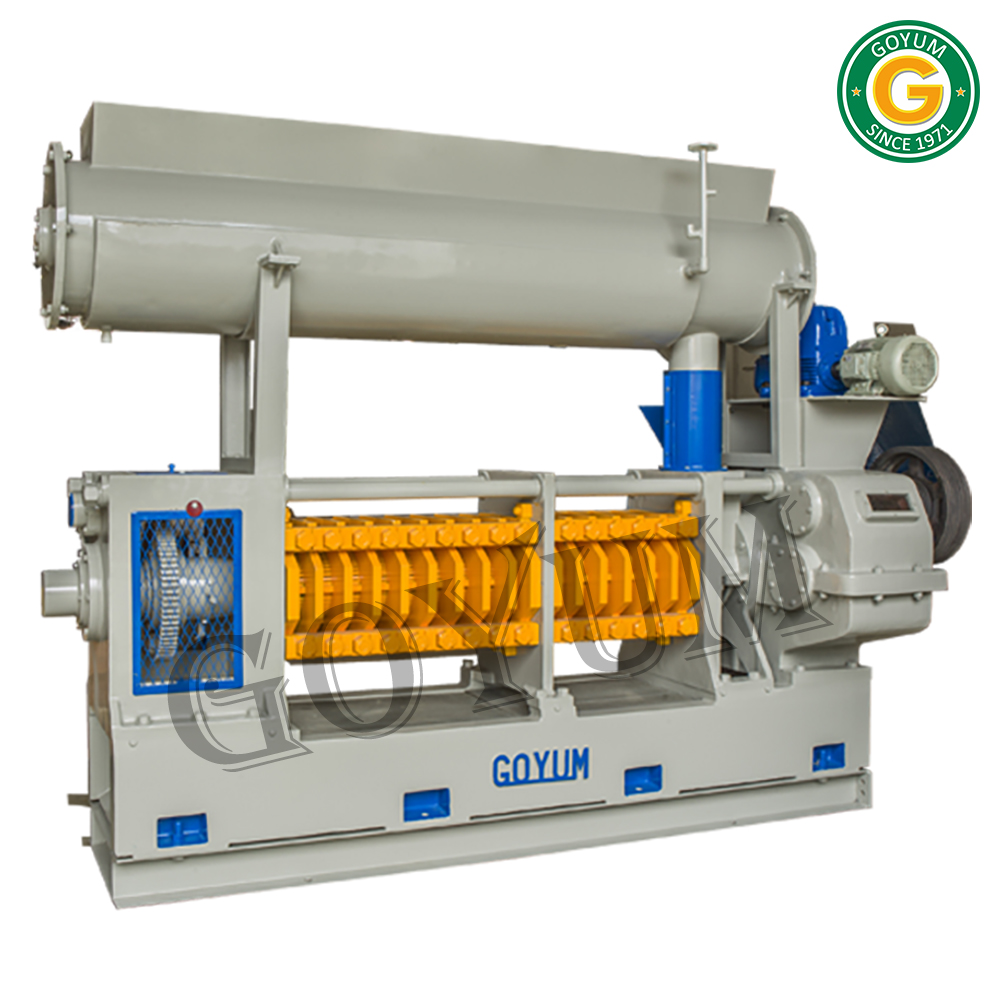

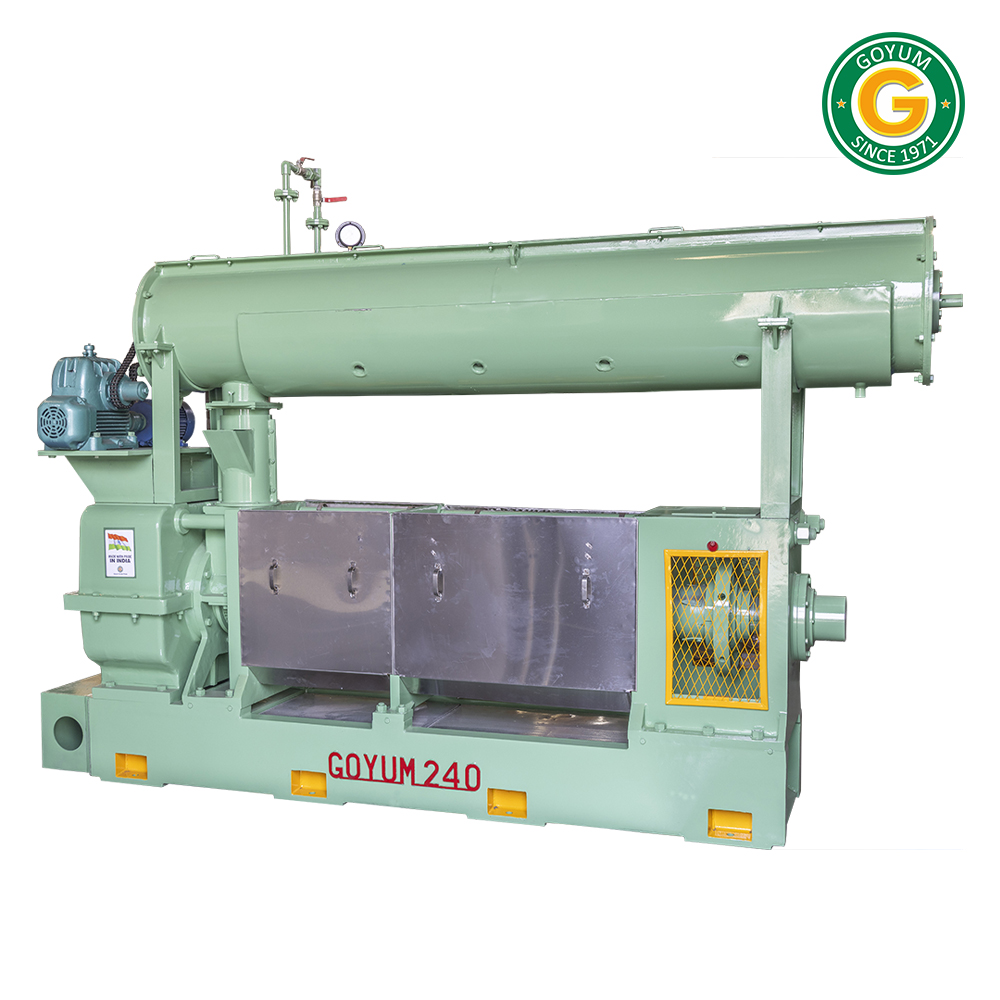

Fully Automatic Cooking Oil Production Machine

Fully Automatic Cooking Oil Production Machine Specification

Type
Cold & Hot Pressing Machine

Production Capacity
20 - 25 Ton in 24 Hours

Automatic Grade
Semi-Automatic

Voltage
280,380,440 Volt (v)

Power
80 Horsepower (HP)

Weight (kg)
5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle

Dimension (L*W*H)
10.2 x 4.1 x 7.7 Foot (ft)

Color
Green

Warranty
1 year warranty against manufacturing defect.

Fully Automatic Cooking Oil Production Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
170 Pieces Per Year

Delivery Time
20 Days

Packaging Details
Wrapped in polythene sheet & then Packed in Quality Wooden Box (For Export)

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Fully Automatic Cooking Oil Production Machine

Fully Automatic Cooking Oil Production Machineis used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 9" x 24" Long, Discharge End: - Size: 7" x 36" Long
Worm Assembly	Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Round Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement)
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

Versatile Cold & Hot Pressing

This machine is uniquely engineered to handle both cold and hot pressing methods, making it suitable for producing different types of edible oils. Its adaptable nature allows manufacturers to switch processes based on the desired final product, ensuring optimal oil yield and quality each time.

Robust Performance and Capacity

Equipped with a potent 80 HP motor, this unit delivers an impressive continuous output of up to 25 tons per day. Steady and consistent operation is supported by robust design features and high-grade manufacturing, making it ideal for large-scale oil production units seeking reliability and efficiency.

Easy Operation and Maintenance

With its semi-automatic grade, the machine simplifies routine tasks and reduces manpower requirements. The user-friendly interface and durable build ensure smooth operation, while the included one-year warranty provides additional security for your investment.

FAQs of Fully Automatic Cooking Oil Production Machine:

Q: How does the Fully Automatic Cooking Oil Production Machine operate for both cold and hot pressing?

A: This machine is engineered to switch between cold pressing, which preserves nutrients, and hot pressing, which improves extraction rates. Operators can select the desired mode depending on the type of oilseed and output preferences.

Q: What types of oilseeds can be processed with this machine?

A: The machine is suitable for a wide variety of oilseeds including mustard, sunflower, soybean, sesame, and groundnut, among others, delivering quality results with both cold and hot pressing methods.

Q: When should I choose long kettle versus three-stage round kettle configurations?

A: Opt for the long kettle when processing larger batch sizes or highly viscous seeds. The three-stage round kettle is designed for more intensive processing, enhancing extraction and refining for higher oil yield.

Q: Where can this machine be installed and who is the target user?

A: Designed for industrial use, the machine suits large oil mills, medium-sized enterprises, and food manufacturers. It is exported, supplied, and manufactured in India, making it accessible to businesses globally.

Q: What is the process for maintaining the cooking oil production machine?

A: Routine maintenance involves regular cleaning of pressing components, timely lubrication, monitoring voltage input, and checking for wear. A detailed maintenance manual is provided to ensure smooth, long-term operation.

Q: How does using this machine benefit oil producers?

A: Producers benefit from high efficiency, flexibility between pressing types, robust daily output, and reduced labor costs due to its semi-automatic design. The 1-year warranty and sturdy build add to operational confidence and long-term value.
