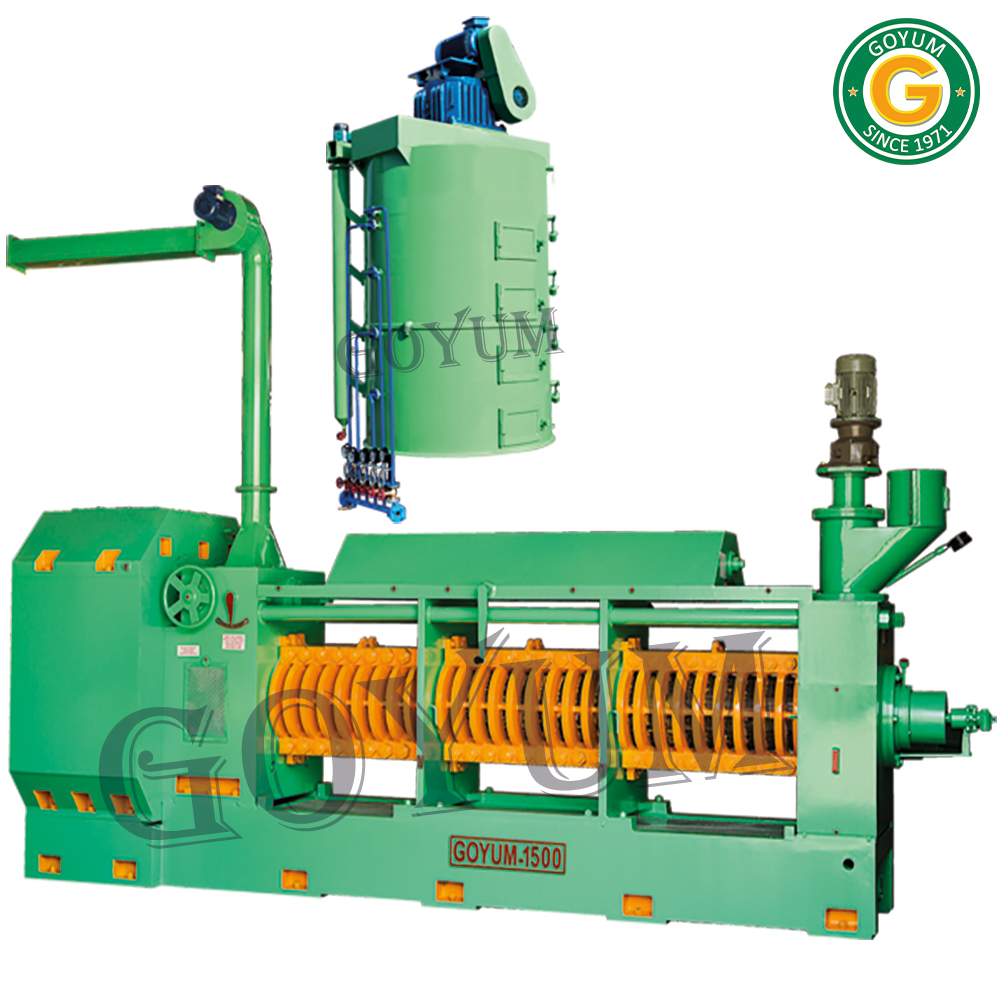

Sunflower Oil Press Machine

Sunflower Oil Press Machine Specification

Type
Oil Press Machine

Material
Mild Steel

Computerized
No

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Warranty
1 year warranty against Manufacturing Defect

Sunflower Oil Press Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai / Mundra

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
50 Pieces Per Year

Delivery Time
30 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Sunflower Oil Press Machine

Sunflower Seed Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 12" x 36" Long, Middle: Size: 11" x 36" Long, Discharge End: - Size: 10" x 36" Long
Worm Assembly	Hard Face welded along with Discharge Ring and Sliding Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled.
Crammer Shaft	For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor.
Round Kettle (Cooker)	5 Stages with Steam Jackets of 66 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure
Cake Thickness	Can be Adjusted on Running Machine.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Chamber Lifting	Manual
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.)

Advanced Oil Pressing Technology

Utilizing semi-automatic technology, this sunflower oil press machine combines the functions of an expeller and cooker within a sturdy, mild steel structure. Its multi-voltage compatibility supports diverse industrial settings, making it a reliable choice for manufacturers seeking consistent, high-quality oil extraction performance.

Durability and Capacity

With a weight of 25,500 kg and a strong green mild steel frame, this oil press is built to last in intense production environments. The sizable processing chamber and high horsepower enable large batch processing, while supported by a comprehensive one-year warranty against manufacturing defects.

FAQ's of Sunflower Oil Press Machine:

Q: How does the sunflower oil press machine operate?

A: The sunflower oil press machine works semi-automatically, combining an expeller and a cooker housed within a durable structure. Seeds are fed into the cooker, heated, and then mechanically compressed in the expeller to extract oil efficiently.

Q: What is the installation process for this oil press machine?

A: Installation requires placement of the unit (30 x 11.6 x 19.6 ft) on a flat surface with access to suitable voltage (220V-440V). Professional assembly is recommended due to its size and weight, and electrical connections should be handled by qualified technicians.

Q: When should maintenance be performed on the machine?

A: Maintenance should be scheduled regularly, ideally after every production cycle or once a week in high-volume settings. Periodic checks and lubrication of moving parts, as well as inspection for signs of wear, will help ensure reliable performance.

Q: Where can this oil press machine be used?

A: This machine is ideal for use in industrial-scale oil processing plants and manufacturing facilities, primarily in regions where the supplied voltage matches standard output (India and similar markets).

Q: What are the main benefits of using this sunflower oil press machine?

A: The main benefits include high extraction efficiency, durability from mild steel construction, compatibility with various voltages, and a comprehensive warranty. Its semi-automatic technology streamlines production, reducing labor costs and increasing output.

Q: How is the machine powered and what are its power requirements?

A: The machine uses 170 horsepower and accepts inputs from 220V, 280V, 380V, 400V, or 415V power supplies, offering flexibility for different industrial locations.
