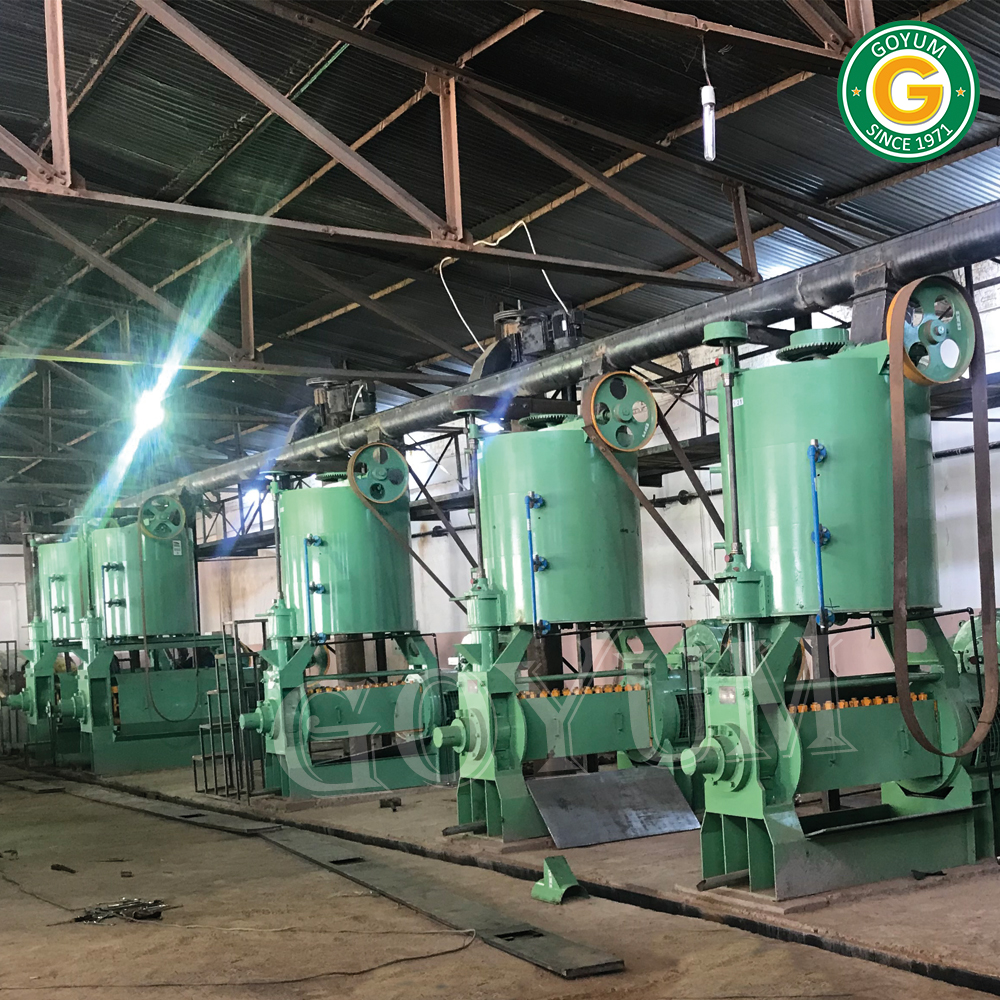

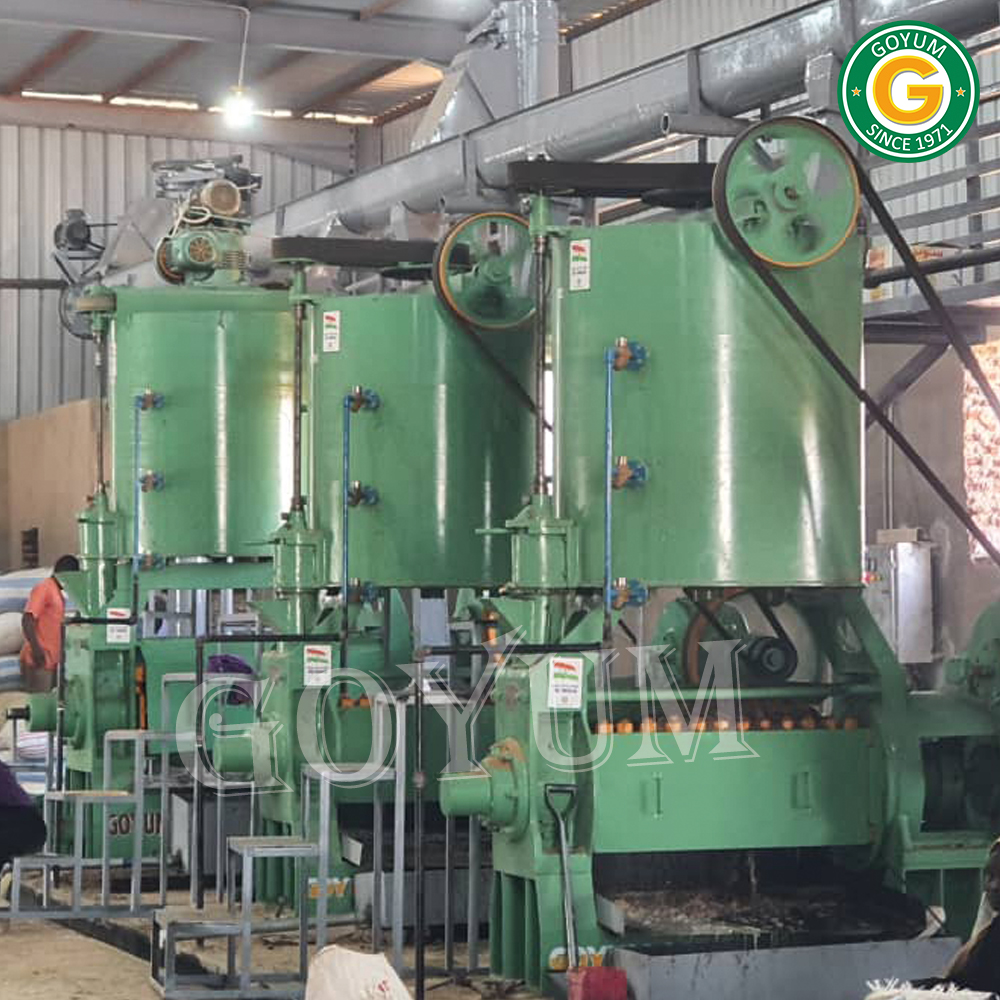

Peanut / Earthnut Oil Expeller Machine

Bodies

Material: Cast Iron

Gearbox

Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set

Chamber

Steel Fabricated from Mild Steel Plates of Four Sections. Vertically fitted.

Three different Sizes: 6.1/2" X 36 Dia Long, 7 Dia X 44 Dia Long,

6-1/2 Dia X 07-1/2 Dia X 45 Dia Long.

Worm Assembly

Case Hardened with Cone Point

Main Worm Shaft

Can be drawn out without disturbing the Gearbox.

Cake Thickness

The Machine needs to be stopped for adjusting the Cake Thickness.

Kettle

Three Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories

Crammer Shaft

For Extra Cramming of the seed or cake in the feed body.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing capacity

Differs with the density of oilseeds & nuts and
