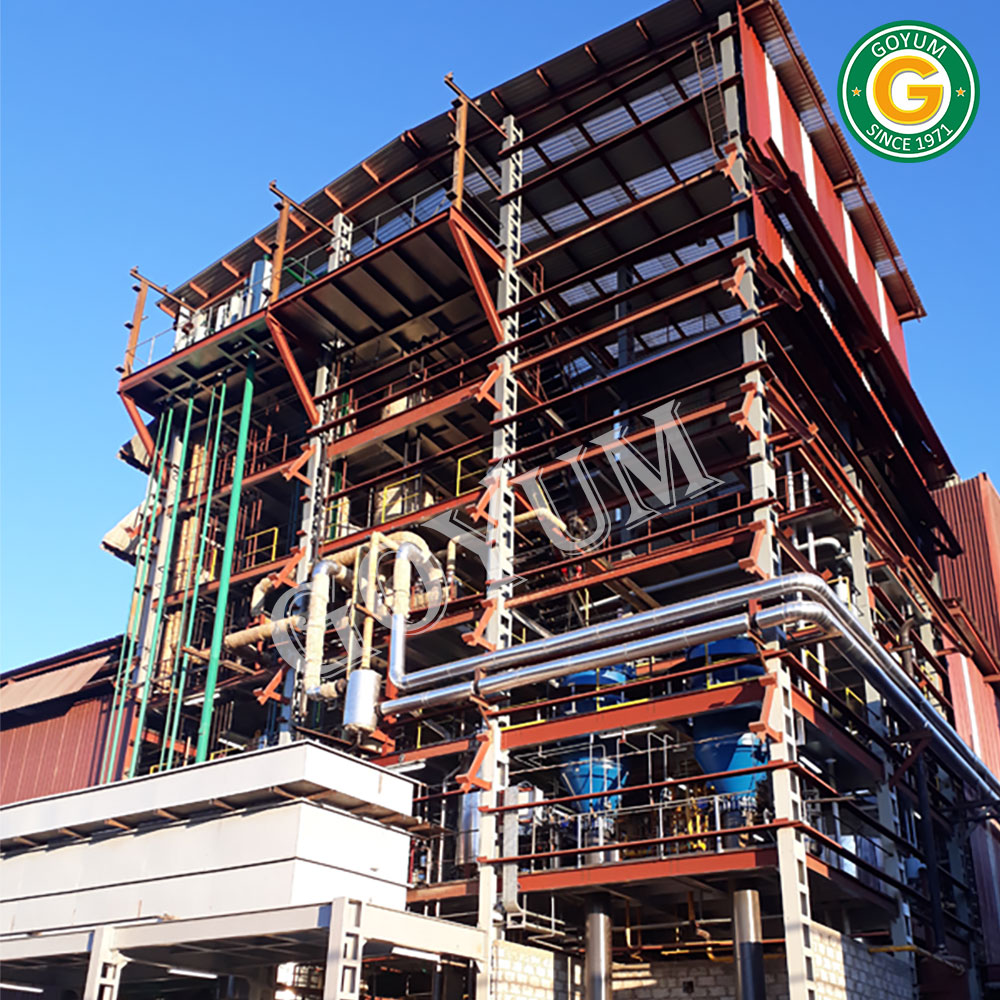

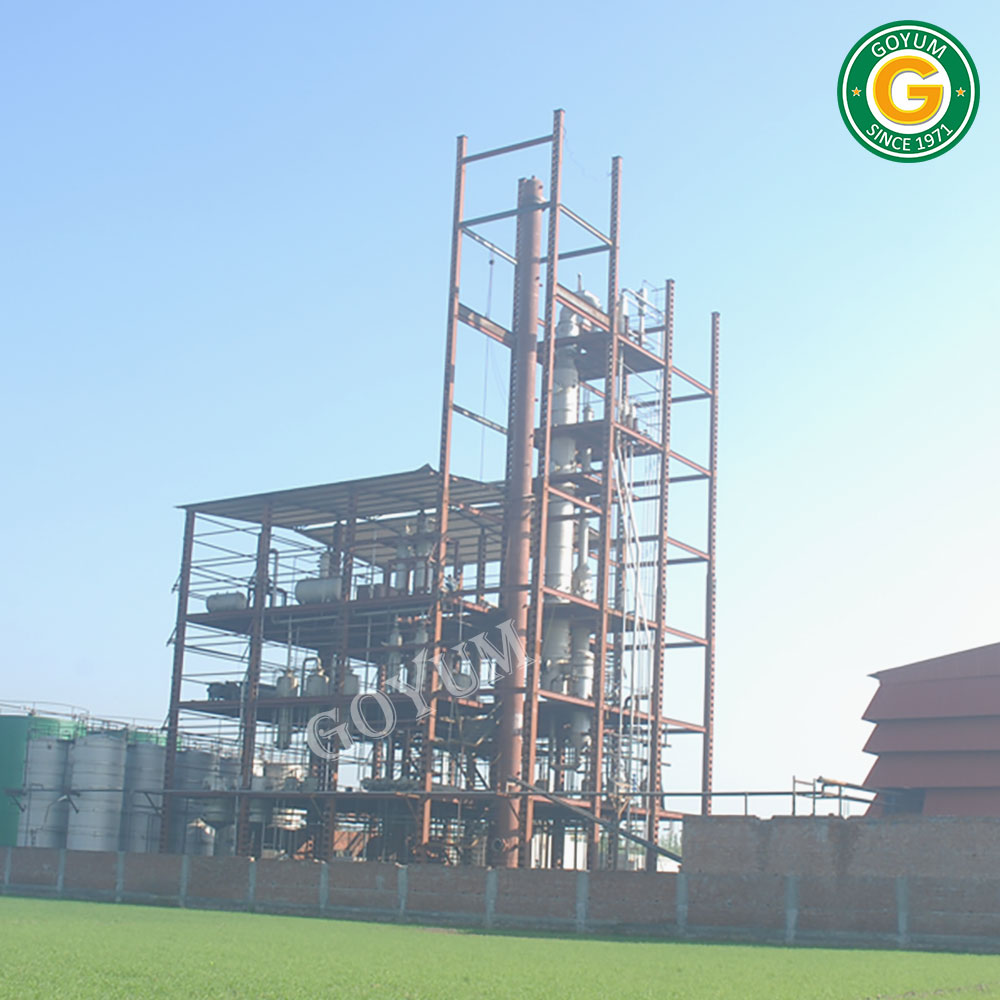

Palm Oil Refinery Plant

Palm Oil Refinery Plant Specification

Type
Edible Oil Refinery

Material
Mild Steel , Stainless Steel

Production Capacity
Starting From 5 Ton/day

Automatic Grade
Semi-Automatic

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Warranty
1 year warranty against manufacturing defect.

Palm Oil Refinery Plant Trade Information

Minimum Order Quantity
1 Plant

FOB Port
Mumbai / Mundra

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T)

Delivery Time
45 Days

Packaging Details
Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box.

Main Export Market(s)
Africa, South America, Australia, North America, Western Europe, Asia, Middle East, Eastern Europe, Central America

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

About Palm Oil Refinery Plant

We are manufacturer, exporter & supplier of Palm Oil Refinery Plant.

As per the todays market research it is being concluded that the market demands the refined edible oil with characteristics such as blend flavour and odour, clear appearance, light colour, long shelf life, suitable for frying since the crude oil obtain does contain many harmful factors like free fatty acid, sediments, gums, odoriferous compound and other impurities.

GOYUM with an experience of more than 5 decades in the Edible oil industry have worked unremittingly in more than 60 countries of the world and have developed overall solutions for the Edible oil refinery needs of the customers.

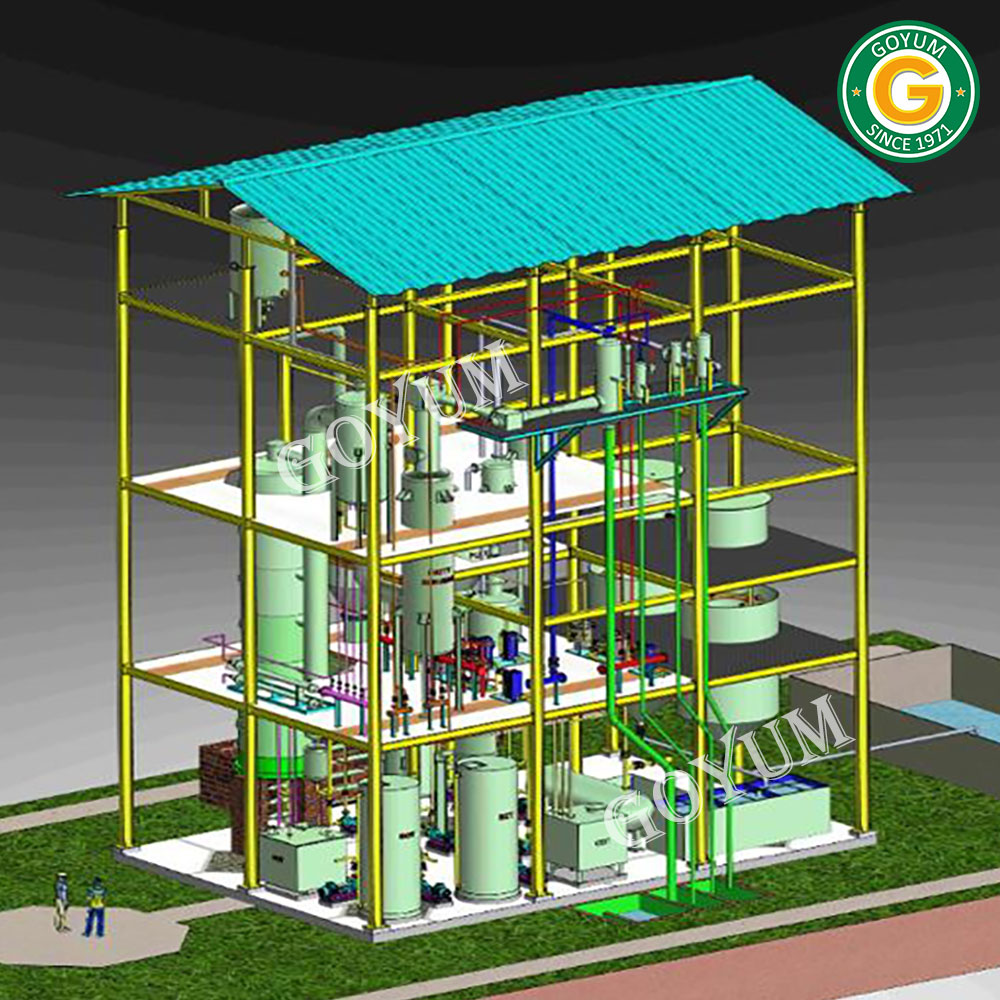

GOYUM provides complete solution for Palm Oil Refinery Plant, capacity to design, build and supply plants from 5 - 30 TPD Batch Type & 50 - 500 TPD Continuous Type Refinery.

Edible Oil Refinery Plant Process:

Bleaching

Remove colouring pigments, traces of gums and metallic impurities
Improve physical appearance
Lower Bleaching earth consumption
Uniform mixing of oil and earth
Maintenance free Bleacher
No dead area in Bleacher
No carryover to Vacuum System
Lower percentage of oil in Spent Cakes

Deodorization

Efficient removal of more volatile component like
Free fatty acids, minor amount of colouring pigments
Remove odoriferous compound
Remove minor amount of colouring pigments
Maximum heat transfer area
Lower utility consumption
Maximum Heat Recovery
Zero contamination
Elaborated and efficient design for the removal of fatty acid in Physical type DEO
Longer shelf life of oil
Very Low Maintenance

Palm Oil Fractionation

Larger heat transfer area with regard to the oil charge in the crystallizers.
Optimal position of the heat exchange surfaces with regard to the impellers and therefore to the oil circulation in the vessel.
All parts of the processed oil are really driven too close to the heat exchange surfaces.
The cooling program is accurately followed.
Granulation by step cooling.
