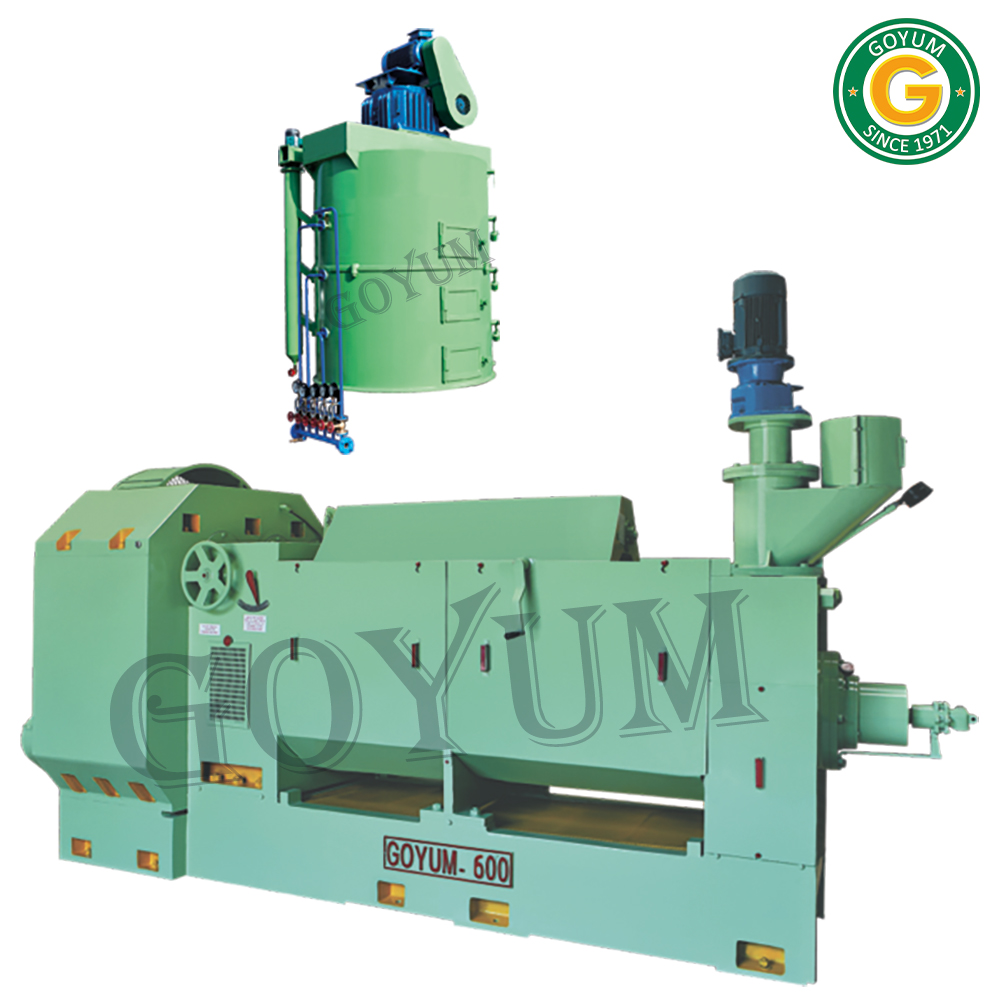

Neem Seed Oil Extraction Machine

Neem Seed Oil Extraction Machine
Neem Seed Oil Extraction Machine
Neem Seed Oil Extraction Machine
Neem Seed Oil Extraction Machine

Neem Seed Oil Extraction Machine Specification

  • Product Type
  • Cold & Hot Pressing Machine
  • Technology
  • Semi Automatic
  • Voltage
  • 280,380,440 Volt (v)
  • Power Consumption
  • 40 Horsepower (HP)
  • Extraction Type
  • Both
  • Dimension (L*W*H)
  • 8.6 x 4.7 x 13
  • Weight
  • 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle)
  • Color
  • Green
  • Warranty
  • 1 year warranty against manufacturing defect.


Neem Seed Oil Extraction Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Supply Ability
  • 300 Pieces Per Year
  • Delivery Time
  • 20 Days
  • Packaging Details
  • "Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."
  • Certifications
  • ISO 9001:2008, ISO 14001 : 2015 Certified


About Neem Seed Oil Extraction Machine

Neem  Seed Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base

Fabricated from Mild steel

Gearbox

Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.

Chamber

Steel Casting of Four Sections. Horizontally fitted

Size: 7.5 Dia X 6.5 Dia X 45 Dia Long.

Worm Assembly

Hard Faced along with Discharge Ring and Compression Ring

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

Kettle

3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

Cake Thickness

Can be Adjusted on Running Machine.

Crammer Shaft

For extra Cramming of the Seed or Cake in the Feed Body.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing Capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.

Price 2635000 INR/ Piece

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 300 Pieces Per Year
  • Delivery Time
  • 20 Days
