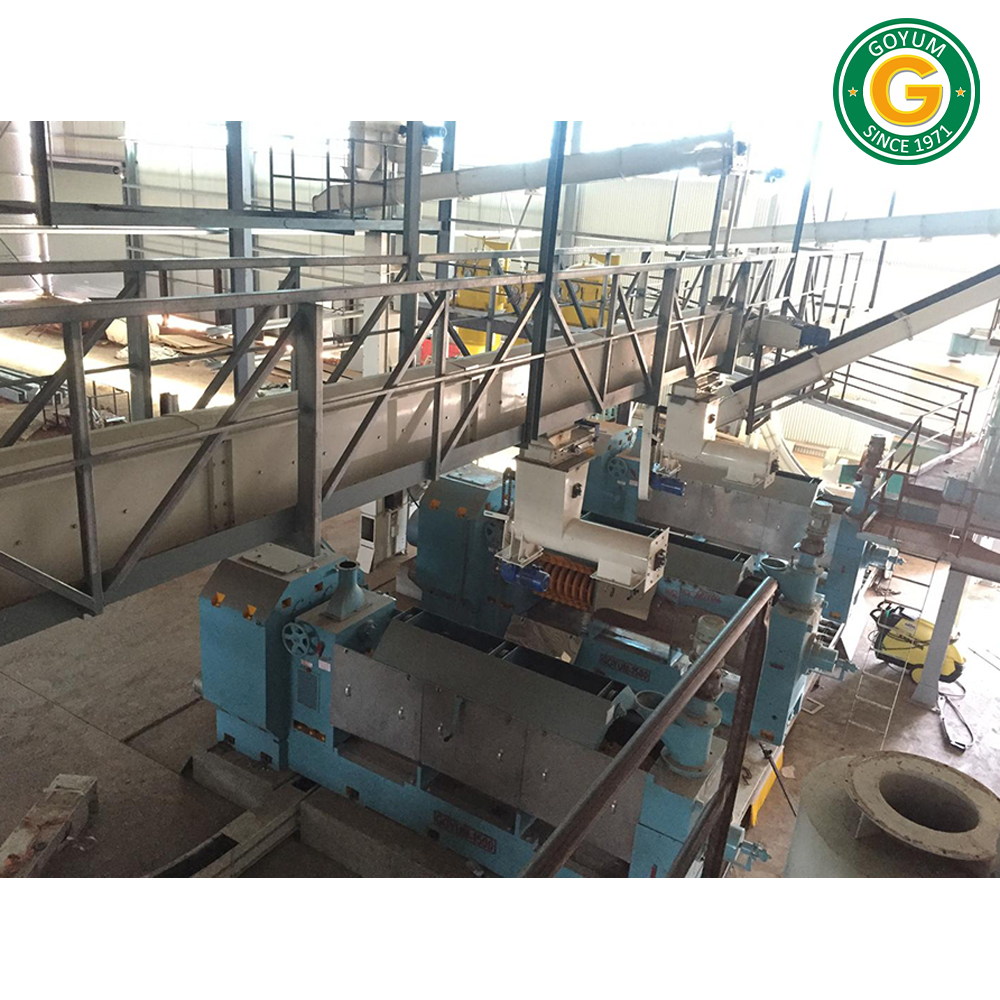

Large Scale Vegetable Oil Processing Machine

Large Scale Vegetable Oil Processing Machine Specification

Country Of Origin
India

Computerized
No

Voltage
220V , 280V ,380V , 400V , 415V Volt (v)

Warranty
1 year warranty against Manufacturing defect

Large Scale Vegetable Oil Processing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai / Mundra

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
300 Pieces Per Year

Delivery Time
30 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Main Export Market(s)
South America, Asia, Australia, Central America, Eastern Europe, Western Europe, Africa, North America, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

Large Scale Vegetable Oil Processing Machine About

Large Scale Vegetable Oil Processing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base.
Chamber	Material: Cast Steel. Vertically fitted Feed End: - Size: 12" x 36" Long, Middle: Size: 11" x 36" Long, Discharge End: - Size: 10" x 36" Long
Worm Assembly	Hard Face welded along with Discharge Ring and Sliding Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled.
Crammer Shaft	For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor.
Round Kettle (Cooker)	5 Stages with Steam Jackets of 66 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure
Cake Thickness	Can be Adjusted on Running Machine.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Chamber Lifting	Manual
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.)

Exceptional Production Efficiency

This machine excels in handling large volumes of vegetable oil processing, making it ideal for industrial-scale operations such as oil mills. With advanced pre-pressing and crushing capabilities, it efficiently processes seeds into high-quality oil, optimizing both speed and yield.

Built to Last

Manufactured from robust mild steel, the machine's solid construction ensures long-term durability and reliability. Its substantial build accommodates rigorous continuous operation, guaranteeing consistent performance in demanding environments with minimal downtime.

Flexible Power Configuration

The processor supports a wide voltage range, accommodating industrial power supplies from 220V up to 415V. This flexibility facilitates seamless installation across various locations and ensures compatibility with diverse electrical standards.

FAQ's of Large Scale Vegetable Oil Processing Machine:

Q: How does the semi-automatic operation of this vegetable oil processing machine work?

A: The semi-automatic design means that core processes like seed feeding and pressing require operator input or supervision, while critical mechanical actions, such as pre-pressing and expelling, are powered and automated for efficiency.

Q: What is the maximum daily production capacity of the machine?

A: The machine is capable of processing up to 125 tons of seeds in 24 hours during pre-pressing and 55 tons in 24 hours in the final single crushing phase, making it suitable for high-volume industrial plants.

Q: When should routine maintenance be performed on this equipment?

A: It is advisable to conduct routine checks after each production cycle, with detailed inspections and servicing scheduled monthly to ensure long-term efficiency and minimize potential downtime.

Q: Where can this machine be installed, considering its size and power requirements?

A: Due to its large dimensions (30 x 11.6 x 19.6 feet) and heavy weight (25,500 kg), installation is suitable for spacious industrial facilities equipped with appropriate electrical power (between 220V and 415V) and necessary infrastructure.

Q: What is the process flow in this oil press machine?

A: The process typically starts with loading seeds into the expeller, followed by pre-pressing where a significant portion of oil is extracted. The meal then proceeds to the final crushing stage for maximum oil recovery.

Q: How does using this machine benefit large-scale edible oil producers?

A: Producers benefit from higher throughput, improved oil extraction rates, and reliable operation, all of which contribute to higher profitability and more efficient production cycles.

Q: What warranty coverage is provided with the machine?

A: The machine includes a one-year warranty that covers any manufacturing defects, offering assurance and support to buyers during the initial period of usage.
