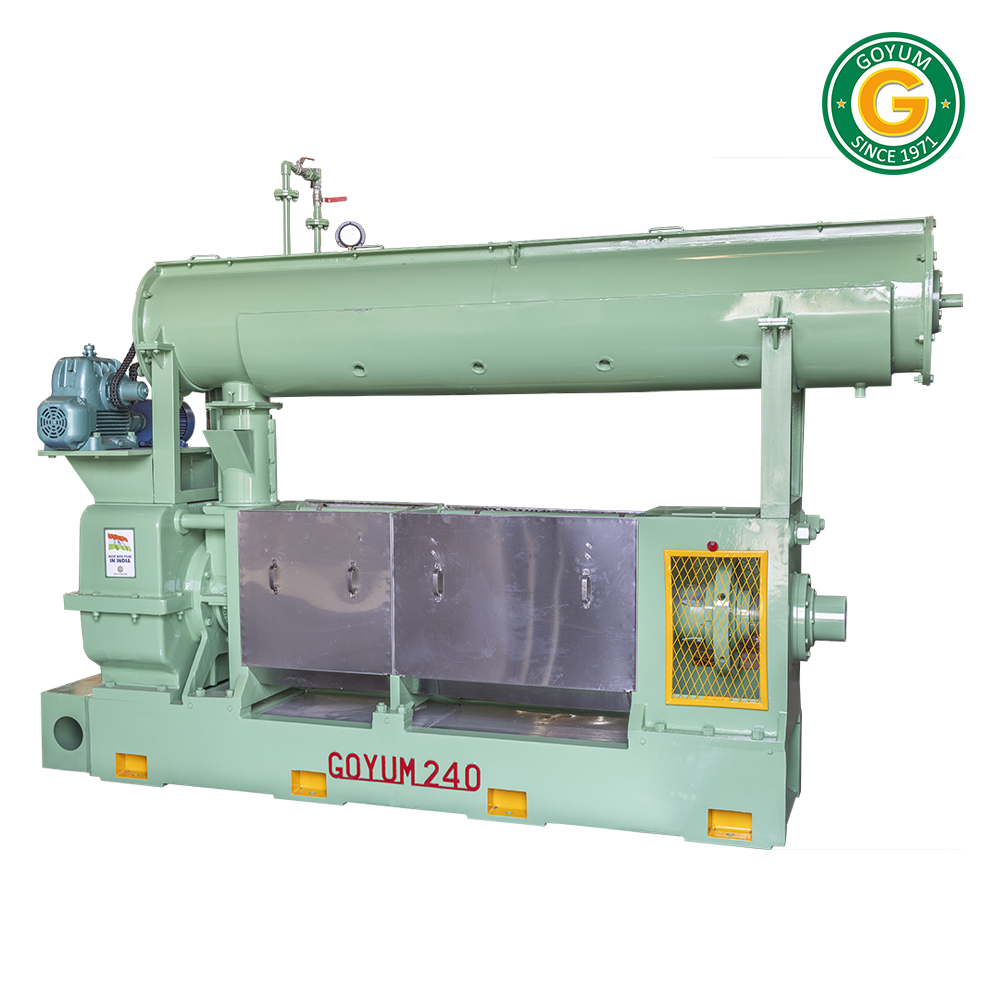

Large Scale Multi Oilseed Extractor Machine

Bodies and Base

Fabricated from Mild steel

Gearbox

Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel

Chamber

Material: Cast Steel. Vertically fitted

Feed End: - Size: 9" x 24" Long,

Discharge End: - Size: 7" x 36" Long

Worm Assembly

Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber

Main Worm Shaft

Can be withdrawn out without Disturbing the Gear Box.

Round Kettle

3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.

(Long Kettle provided as per requirement)

Cake Thickness

Can be Adjusted on Running Machine.

Crammer Shaft

For extra Cramming of the Seed or Cake in the Feed Body.

Oil & Oil Cake

Superior Quality

Maintenance

Minimum

Crushing capacity

Differs with the density of oilseeds & nuts and quantity of oil in it.
