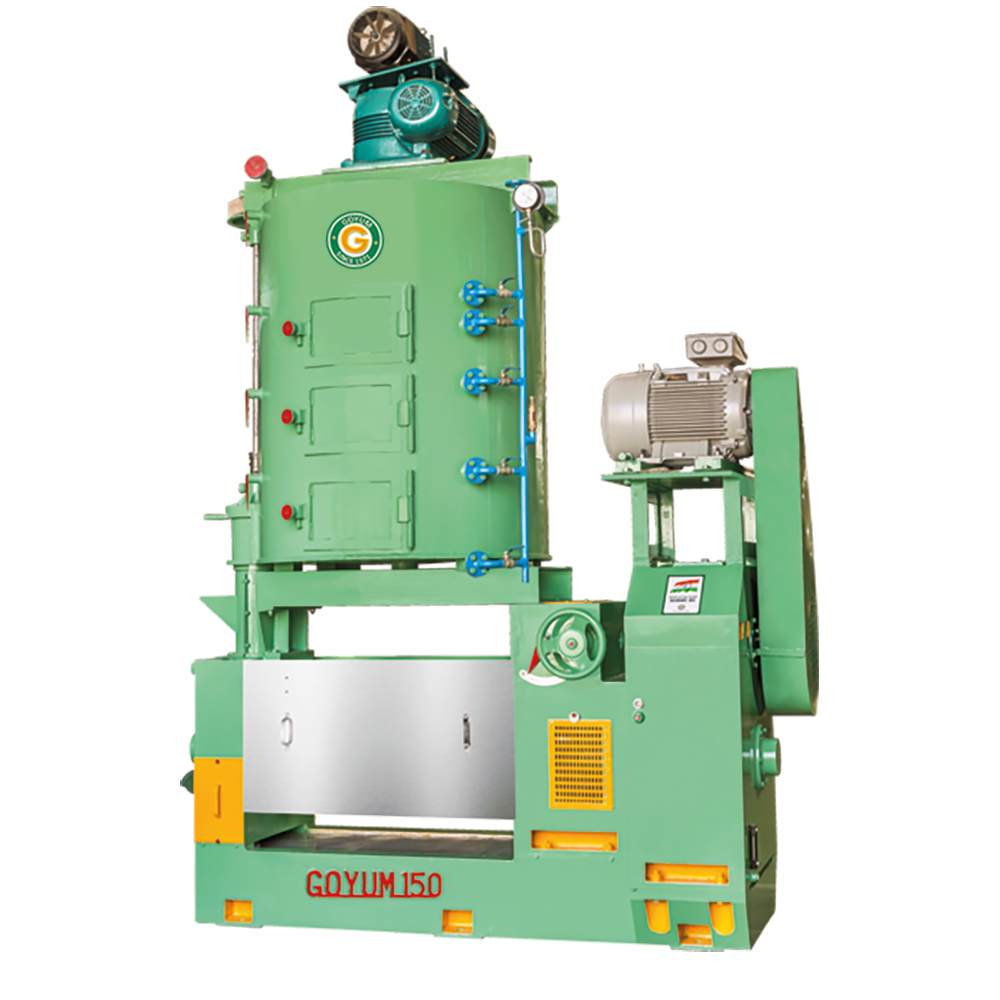

Copra Oil Expeller Machine

Copra Oil Expeller Machine Specification

Material
Mild Steel , Cast Steel

Production Capacity
15 - 17 Ton/day

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Other

Voltage
220,280,380,400,415 Volt (v)

Power
40 Horsepower (HP)

Weight (kg)
4800 Kilograms (kg)

Dimension (L*W*H)
8.6 x 4.7 x 13 Foot (ft)

Color
Green

Warranty
1 year against manufacturing defects

Copra Oil Expeller Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
300 Units Per Year

Delivery Time
20 Days

Packaging Details
"Wrapped in polythene sheet. For Exports additionally packed in export quality wooden box."

Certifications
ISO 9001:2008, ISO 14001 : 2015 Certified

Copra Oil Expeller Machine About

Copra Oil Expeller Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.

Features:

Bodies and Base	Fabricated from Mild steel
Gearbox	Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel.
Chamber	Steel Casting of Four Sections. Horizontally fitted Size: 7.5 Dia X 6.5 Dia X 45 Dia Long.
Worm Assembly	Hard Faced along with Discharge Ring and Compression Ring
Main Worm Shaft	Can be withdrawn out without Disturbing the Gear Box.
Kettle	3 or 4 stages with Steam Jackets of 48 Dia for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps.
Cake Thickness	Can be Adjusted on Running Machine.
Crammer Shaft	For extra Cramming of the Seed or Cake in the Feed Body.
Oil & Oil Cake	Superior Quality
Maintenance	Minimum
Crushing Capacity	Differs with the density of oilseeds & nuts and quantity of oil in it.

High-Efficiency Oil Extraction

The Copra Oil Expeller Machine offers high oil yield due to its efficient semi-automatic operation and precision engineering. Suitable for medium to large-scale production, it can process 15-17 tons of copra daily, maximizing productivity for producers. Its powerful motor and high-quality construction guarantee consistent and thorough extraction every batch, ensuring profitable operation.

Rugged Construction for Longevity

Engineered from mild steel and cast steel, this machine is built to withstand intensive industrial use. The robust design ensures durability under continuous usage, making it ideal for businesses expecting long service life and minimal maintenance. The one-year warranty against manufacturing defects further assures peace of mind and operational stability.

Flexible Installation and Operation

With support for various voltage options (220, 280, 380, 400, 415 volts) and a semi-automatic setup, this expeller machine is adaptable to diverse industrial environments. Its manageable dimension allows for straightforward installation in existing facilities, while green color coding promotes organized workplace aesthetics. Designed for manufacturers, exporters, and suppliers, it meets both domestic and export requirements.

FAQ's of Copra Oil Expeller Machine:

Q: How does the Copra Oil Expeller Machine operate?

A: This machine utilizes a semi-automatic mechanism to extract oil from copra. The operator feeds copra into the expeller, which uses mechanical pressure to extract oil, separating it from the solid residue. Its semi-automatic features simplify operation and enhance throughput.

Q: What materials are used in the construction of the machine?

A: The copra oil expeller is primarily constructed from high-quality mild steel and cast steel, ensuring strength and durability for heavy-duty, long-term industrial applications.

Q: When should regular maintenance be performed on this machine?

A: Routine maintenance should be conducted as outlined in the manufacturer's manual, typically after every production cycle or as recommended based on usage rates. Regular inspections help ensure optimal performance and extend the machine's service life.

Q: Where can I install this expeller in my facility?

A: Given its dimensions (8.6 x 4.7 x 13 feet), the machine is best installed in areas designed for industrial processing, with adequate space and access to the required electrical supply. Proper ventilation and easy access for maintenance are recommended.

Q: What is the process flow for copra oil extraction using this machine?

A: The process involves feeding clean copra into the expeller hopper. As the copra passes through, mechanical pressing extracts oil, which is collected separately, while the residual cake is discharged for further use or disposal.

Q: How does this machine benefit oil producers?

A: Producers can achieve high, consistent output with low operational intervention due to its semi-automatic functionality. The robust build and high daily capacity improve productivity, reduce labor costs, and offer a reliable solution for commercial oil extraction.

Q: What is covered under the warranty for this expeller machine?

A: The machine is covered by a one-year warranty against manufacturing defects, providing support and repairs should any factory-related issues arise during normal operation.
